TECHNICAL SPECIFICATIONS

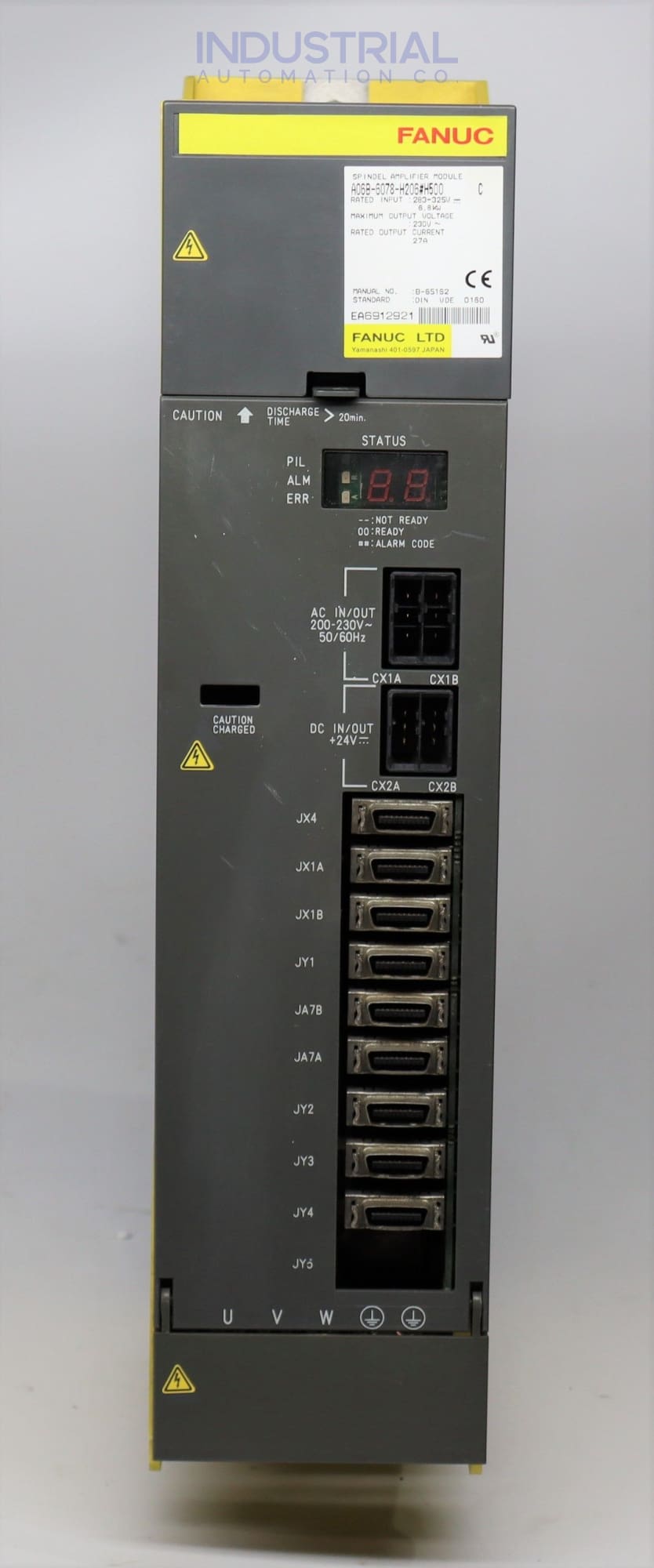

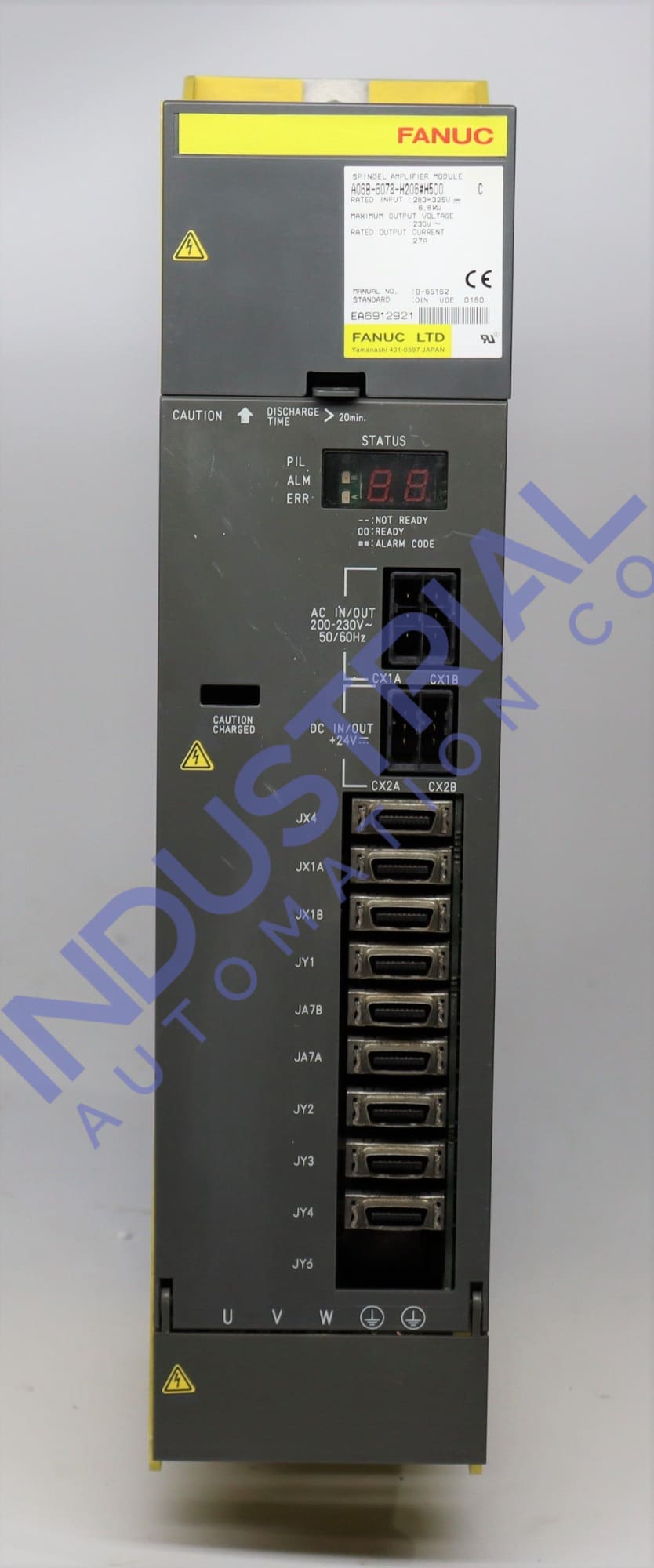

FANUC A06B-6078-H206#H500

The spindle amplifier module A06B-6078-H206#H500 is an innovative design that offers compatibility with various modules, allowing users to customize their system configuration. This module enables a 200-V input series motor to be activated and rotated efficiently.

Technical Description of A06B-6078-H206#H500:

The servo amplifier A06B-6078-H206#H500 operates the motor through an efficient transistor PWM inverter. It, however, permits a high-frequency leakage current to traverse the ground drift capacitance of components such as motor windings, power cables, and amplifiers.

To ensure a safe and efficient operation, consider the power output of your spindle motor when selecting a compatible power supply module. Ensure its rated capacity exceeds the 30-minute marked requirement for optimal performance.

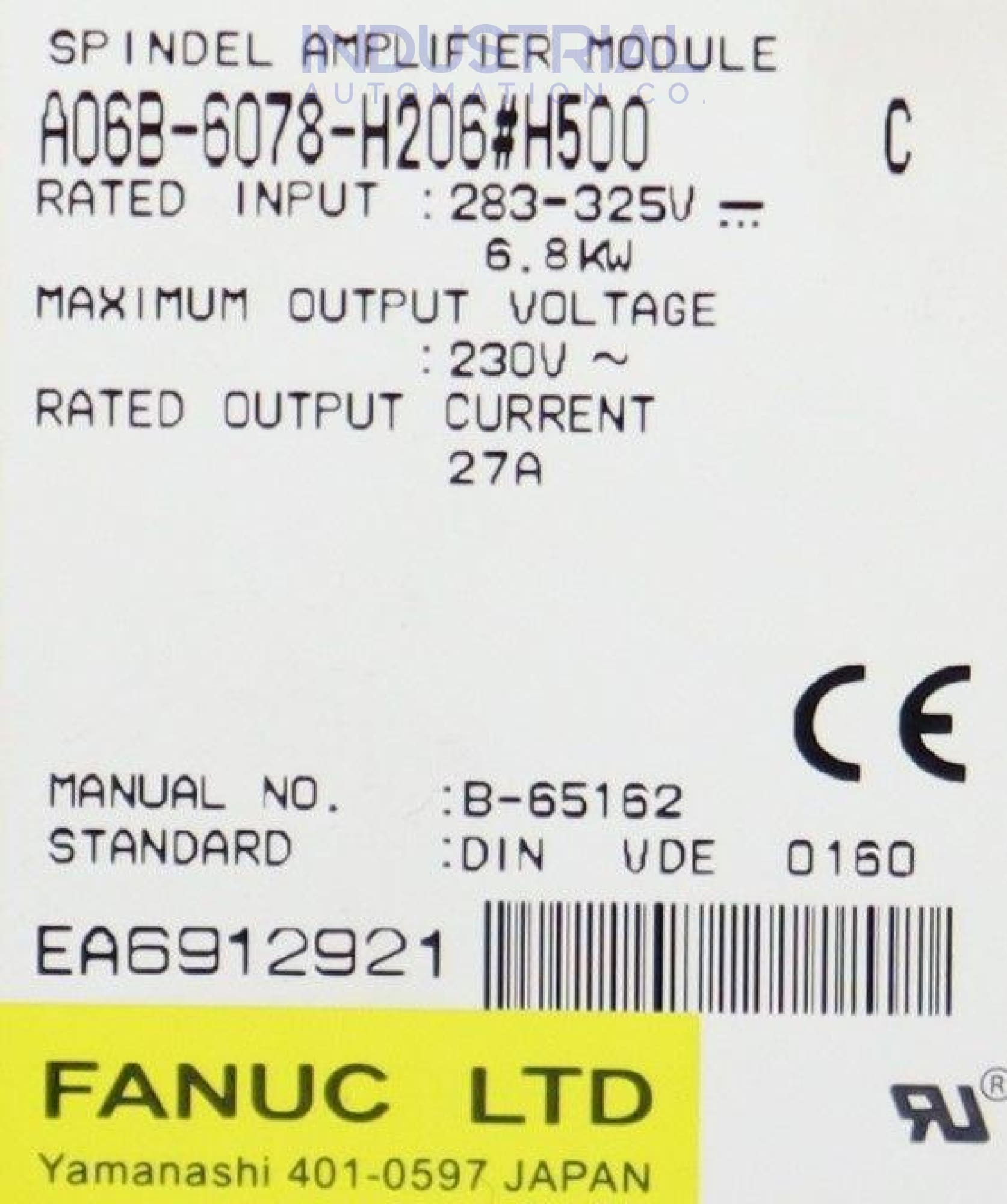

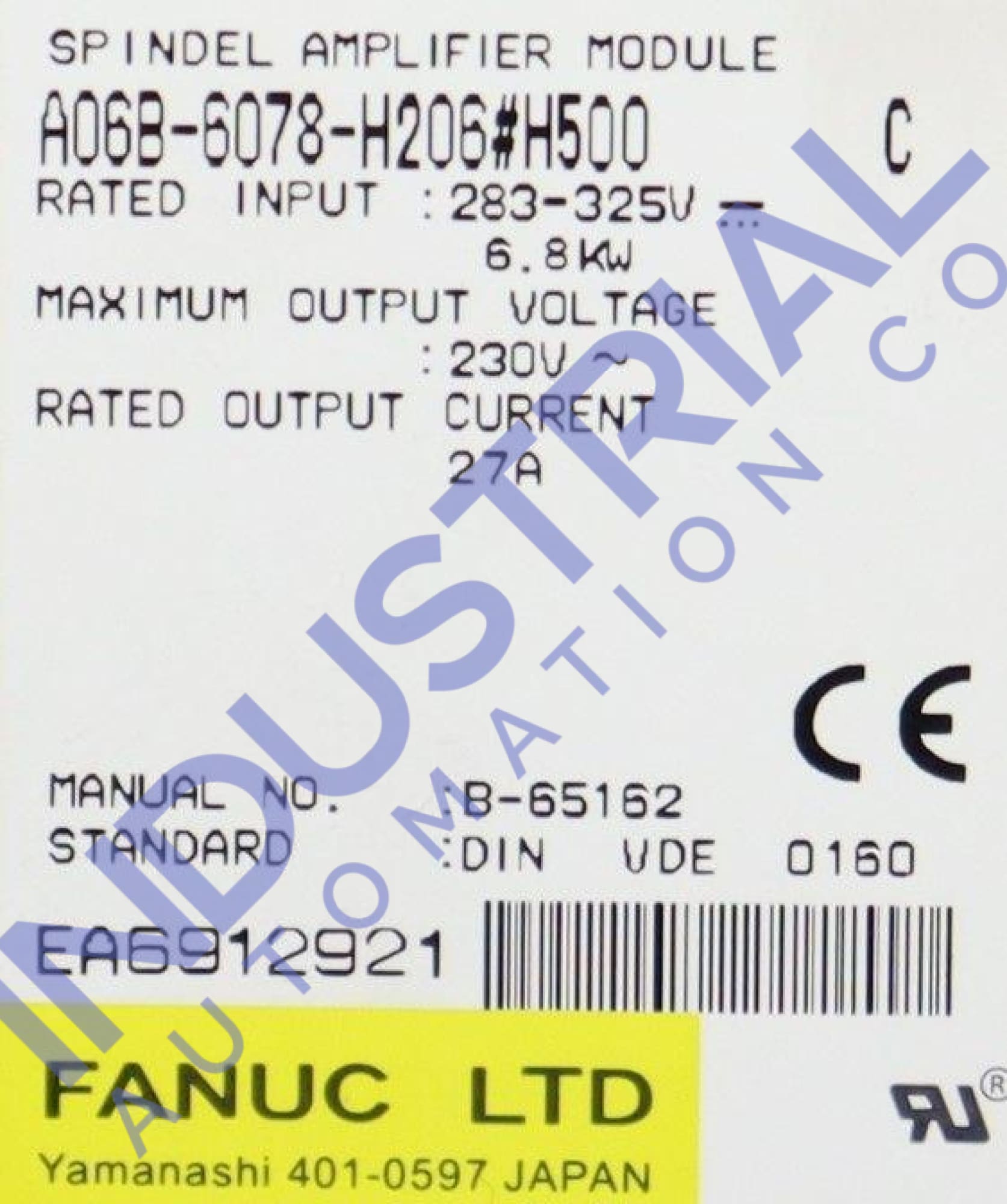

The model A06B-6078-H206#H500 features a powerful Sine€“wave PWM control circuit connected by an IGBT bridge, supplying up to 27 Amps of current. With a voltage range from 283 to 325 V, this advanced model puts out 6.8 kW of rated power for high-performance needs and can reach up to 230V at its peak output.

The A06B-6078-H206#H500 model features a Velocity feedback system with an integrated pulse generator. It enables you to adjust its speed from 1:100 and achieve fine-tuned adjustments of 0.1 percent relative to the maximum velocity for optimal performance.

Ambient Conditions:

Maintaining a steady temperature range of 0 to 55 °C is essential for optimal performance when operating the model. Reduce the output power if temperatures exceed this limit.

Installing model A06B-6078-H206#H500 at heights up to 1,000 meters above sea level will not significantly affect its performance. When elevated even further and temperatures drop below what is considered normal for that altitude (1°C lower per 100 m increase in height), special care is not required as long as all other standard operating guidelines are followed.

For optimal performance of the A06B-6078-H206#H500 model, store it indoors to protect it from dust and debris. Ideal temperatures range between -20°C and +60°C in a dry area with no direct sunlight exposure. Install it in a closed-control cabinet with at least IP54 protection.

General Wiring Precautions:

Ensure a safe connection by attaching the motor power cable's ground lead to one terminal block at the module and its second terminal block to the frame ground. Make certain of consistent stability by connecting, moreover, the metal frame's grounding link with that same frame ground.

Ensure the amplifier cover is securely closed after wiring; open covers pose an electric shock hazard. Confirm that the amplifier and any auxiliary devices are secure. Examine external components, such as contactors and breakers, to guarantee they're interlinked properly with the corresponding apparatus within the amp setup.

To ensure proper functioning, securely install the A06B-6078-H206#H500 amplifier in its power magnetics cabinet.Inadequate installation could create dust accumulation within any gaps between cabinets and mounting surfaces; this buildup may interfere with the normal operation of the device.

To ensure proper upkeep, install the amplifier A06B-6078-H206#H500 in an easily-accessible spot to facilitate routine maintenance and regular inspections. When taking off the amp, remember to power it down first - you don't want that DC link charging light going on! Lastly, beware of your fingers getting pinched between those two electrical units.
