TECHNICAL SPECIFICATIONS

FANUC A06B-6096-H207

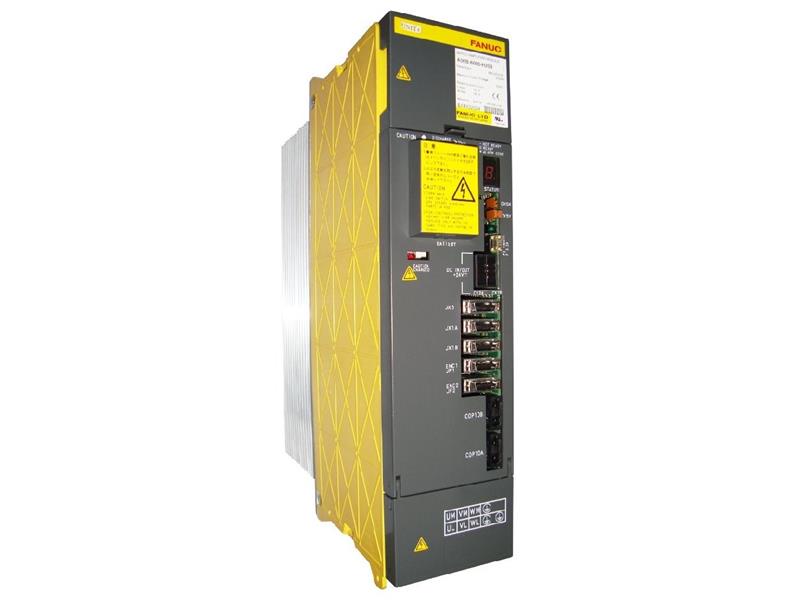

The A06B-6096-H207 is a servo amplifier module manufactured by FANUC. Control and drive servo motors in industrial automation applications with this module. It is part of the FANUC αi series of servo amplifiers and is compatible with various FANUC CNC systems.

Technical Specifications of A06B-6096-H207:

The A06B-6096-H207 servo amplifier module can deliver a maximum output of 7.5 kW and operate on an input voltage range of 200-230V AC. It has a maximum input current of 44 A and can deliver a maximum output current of 30 A. The module's wide input voltage range of 170 to 253 VAC enables its use in various applications.

The module has an output power of 11 kW, suitable for high-speed and high-precision applications. It supports a range of control modes, including position, speed, and torque control. A variety of motion control applications can utilize it. The module includes built-in diagnostic features that can help to identify and diagnose issues quickly and easily.

The features of this module have a built-in cooling fan that helps to maintain the module's temperature and prevent overheating. The module has a compact design, with 415 mm x 290 mm x 240 mm, making it easy to install and integrate into existing systems. The module weighs approximately 21 kg, which makes it lightweight and easy to handle during installation.

Operating and Installation Instructions:

During the installation process of this module, it is important to observe all safety precautions, including using the appropriate tools and materials and following proper grounding procedures. The instructions guide mounting the module in a suitable location, ensuring proper clearance and ventilation for optimal cooling.

The module is rated to operate within an ambient temperature range of 0°C to 55°C. Operating outside of this temperature range may result in decreased performance, shortened lifespan, or even complete failure of the module. In addition to temperature, the module's standard operating conditions include a relative humidity range of 10% to 90%. Operating the module outside of this range may result in moisture buildup, corrosion, or other damage that could lead to malfunctions.

General Cautions:

Handle the servo amplifier carefully to prevent damage to its internal components. It includes avoiding dropping or exposing the module to excessive vibration or shock. It is also important to avoid exposing the module to excessive vibration, dust, moisture, or temperature extremes. Doing so can compromise its performance and potentially lead to damage or failure. While the module is powered on or operating, avoiding touching any internal parts is important. Doing so could result in injury or damage to the module or connected equipment.

Under no circumstances should you modify or disassemble the module. Doing so could result in injury or damage to the module or connected equipment. Before performing any maintenance or servicing, it is essential to disconnect the power to the module. It will help to prevent electrical shock or other hazards.

Safety Precautions for Wiring:

When selecting the wiring, use appropriate materials that are compatible with the rated specifications of the amplifier. Follow the wire sizes and terminal connections specified in the installation manual.

It is also important to use insulated tools and wear appropriate protective gear such as gloves, goggles, and safety shoes. It will help to prevent injury while working with the wiring. Finally, double-check all connections before turning the power back on to the amplifier.
