FANUC A06B-6111-H006#H550

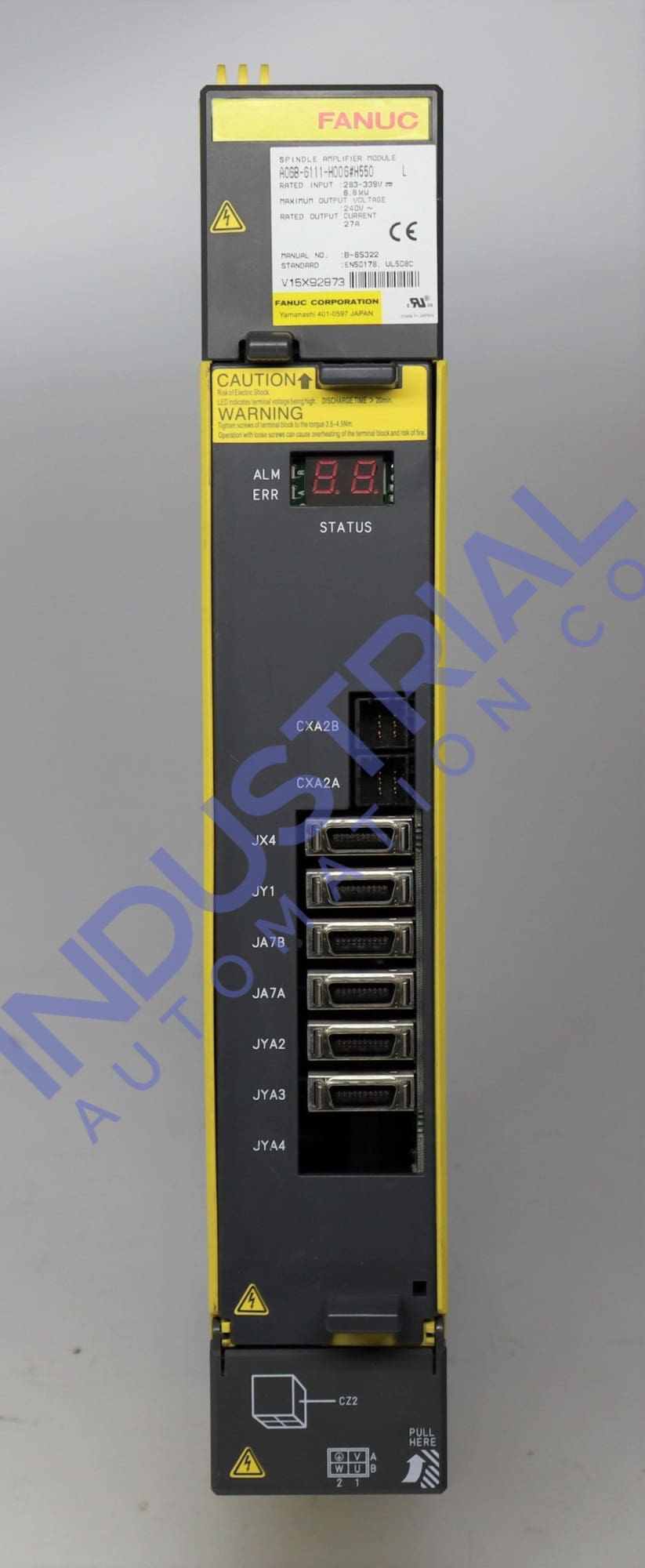

The A06B-6111-H006#H550 Alpha Spindle Module SPM-5.5i ensures that the automation line operates at maximum capacity. This module is designed to work with high-performance AC spindle motors and provides precise torque and speed control, allowing for accurate and repeatable machining operations.

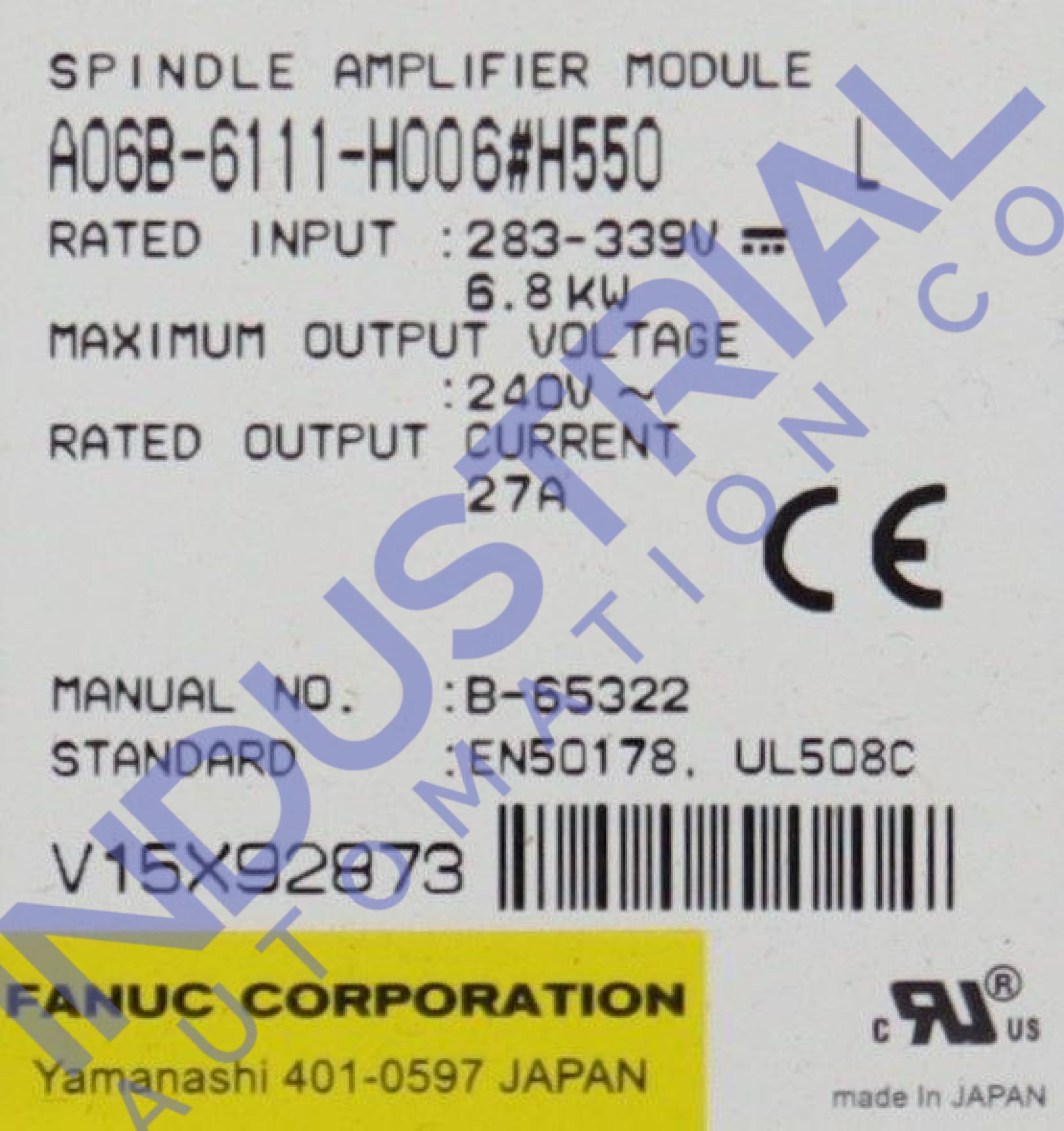

Technical Details of A06B-6111-H006#H550:

The spindle motor can be driven by this module's maximum output power of 5,500 watts, with a power rating of 5.5 kW. The spindle motor can run at high speeds thanks to its high power rating, which makes it the perfect choice for applications that call for quick and accurate milling.

The FANUC A06B-6111-H006#H550 spindle amplifier module features a high current rating of 24 amps. This rating indicates the maximum current the module can handle while in use. The module aids in shielding the spindle motor from harm brought on by overloading or short circuits by restricting the current to a safe level.

This module has a maximum torque of 20 Nm, representing the twisting force it can provide to the spindle motor. With such a high torque rating, the spindle motor can produce the necessary force to cut through tough materials or perform other difficult machining tasks.

Spindle amplifier modules are usually compact and designed to fit into standard control cabinets used in CNC machines. The weight of FANUC A06B-6111-H006#H550 is 6.1kg.

It also uses vector control technology, one of its distinguishing characteristics. Spindle motors can be controlled more precisely and effectively with vector control, leading to a smoother and more accurate operation.



This technology also makes it possible to modify the motor's torque and speed more flexibly, making it appropriate for various spindle applications.

Environmental Conditions:

The FANUC A06B-6111-H006#H550 spindle amplifier module is designed to operate in a wide range of temperatures, from 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit).

The non-condensing relative humidity range for the module is 5% to 95%. To prevent harm to the module's internal components, avoid condensation and direct water contact, even if you plan to use it in humid settings.

The module can operate up to 1000 meters above sea level. It is significant for CNC machines in high-altitude settings, such as hilly areas.

Installation Instructions:

The module must be installed in a dry, well-ventilated place and free of pollutants like moisture and dust. The outside temperature needs to fall within the manufacturer's suggested range.

The mounting brackets supplied should be used to affix the module to a suitable surface firmly. The mounting surface must be level and sturdy enough to hold the module's weight.

The module must be connected to a reliable power source that complies with the manufacturer's specifications for voltage and current. The electrical source needs to be correctly grounded.

The spindle motor and other components, such as sensors and feedback devices, should be connected to the module according to the manufacturer's instructions. Make sure to use high-quality, properly shielded cables to establish the connections.

Setting up the module using the manufacturer's software may be necessary. It may involve setting the parameters for the motor, feedback devices, and other components to ensure proper operation.

The module should be tested to ensure it operates correctly after installation and configuration. It could entail running the motor at various loads and speeds while looking for anomalies or faults.
