TECHNICAL SPECIFICATIONS

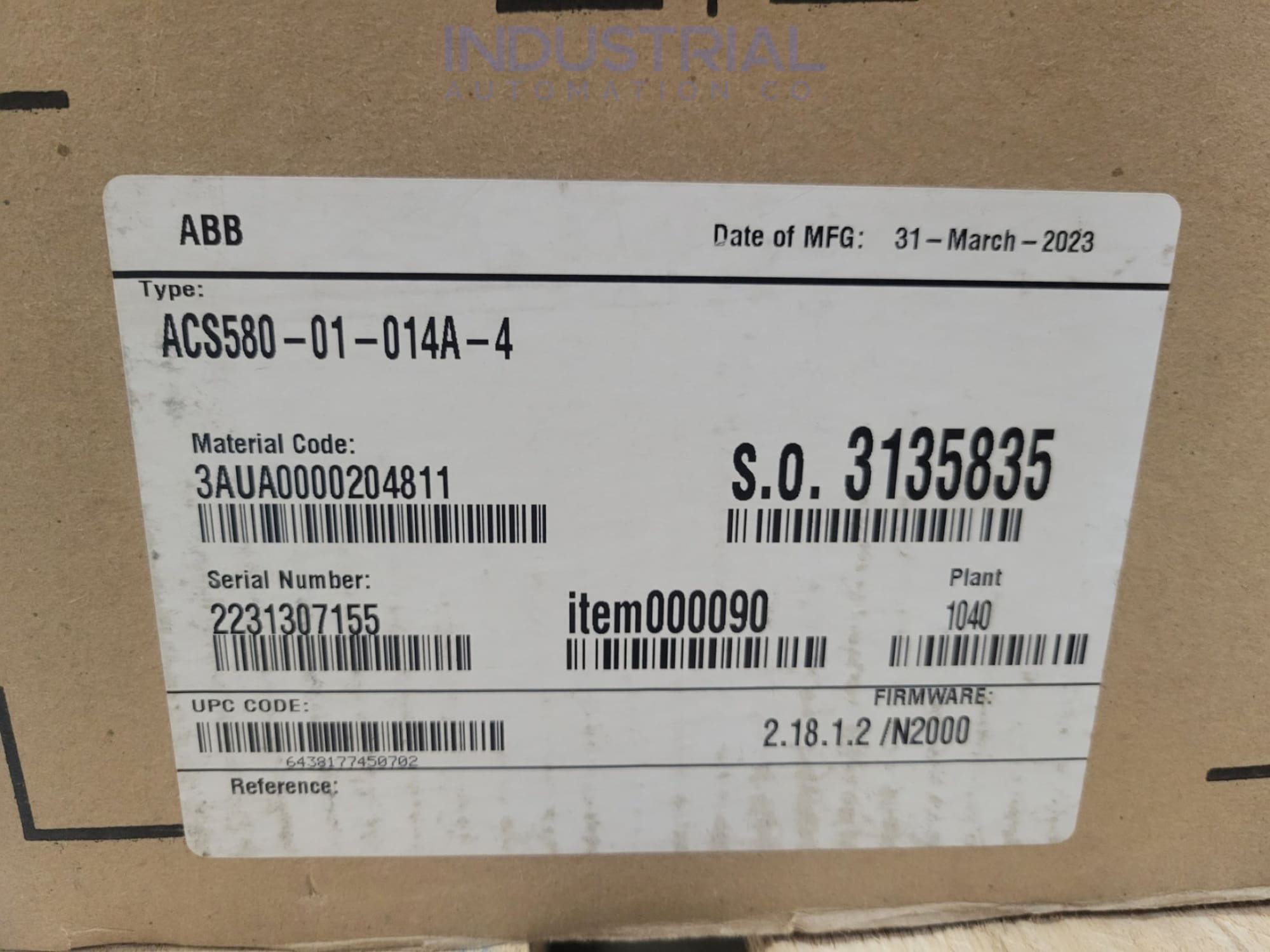

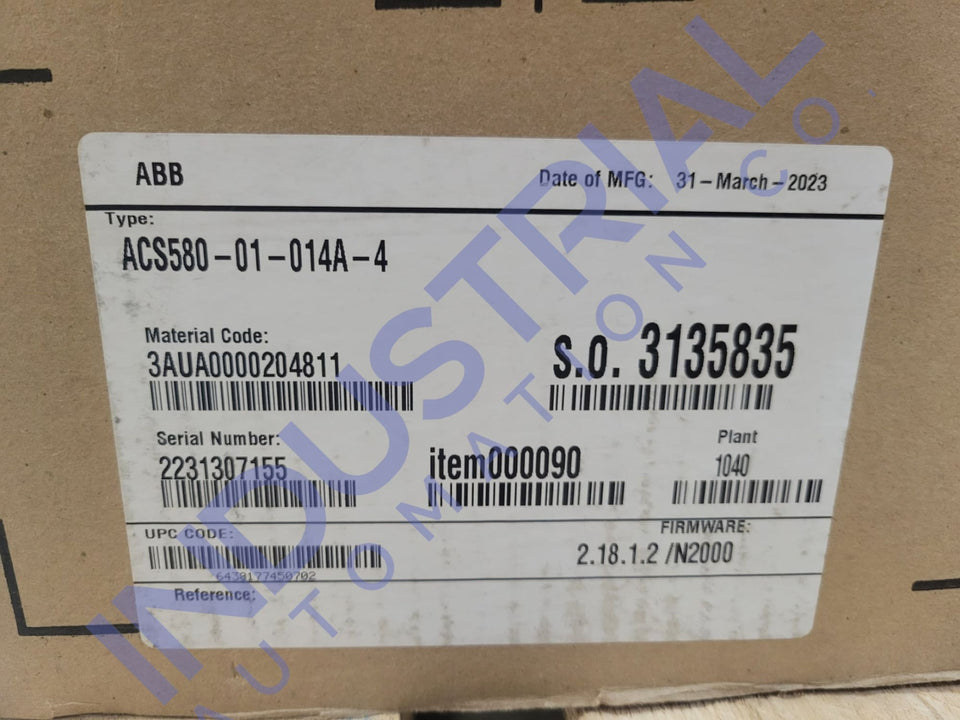

ABB ACS580-01-014A-4

The ABB model ACS580-01-014A-4 VFD is an innovative solution for industrial control needs. Packed with special features, this VFD stands out as a top option for various industrial applications.

Technical Specifications:

The ACS580-01-014A-4 VFD drive provides enhanced flexibility and programmability, enabling exact customization and control over motor operation via several built-in functions and parameters.

This variable frequency drive (VFD) can control the speed and torque of AC motors with power ratings ranging from 0.75 kW to 7.5 kW. The Variable Frequency Drive functions within a 200-240V AC voltage limit, drawing an IN current of 14 amps and supporting a max OUT current of 21.6 amps.

The variable frequency drive has an 11A heavy-duty use current and a 7.5 hp heavy-duty power output. It produces ten horsepower of variable torque. The weight of this R2 frame-size drive is only 14.3 lbs.

At 40 degrees Celsius, the ACS580-01 has a derating factor of 0.48 on 12KHz. The ACS580-01-014A-4 model, fitted with a flange kit, effectively dissipates heat at 192 W and offers a reliable resistance of 31 to 75 ohms.

Operating Conditions:

The model ACS580-01-014A-4 is designed to operate under various environmental conditions, making it suitable for different industrial applications. The VFD's exceptional adaptability allows it to function effectively in different work settings. It can withstand an immense ambient temperature of up to 50°C (122°F) without negatively impacting its performance.

The ACS580-01-014A-4 drive can withstand vibration levels up to 1g, ensuring its safe and effective operation in environments with high vibration levels. The altitude limit of the VFD is 1000 meters above sea level, making it possible to function at high altitudes without any damage or malfunction.

The VFD is also designed to operate effectively in environments with a relative humidity range of 5% to 95% non-condensing, making it a practical choice for areas with high humidity or where exposure to moisture is a concern.

Installation and Transportation:

When transporting the ACS580-01-014A-4 variable frequency drive (VFD), it's crucial to maintain an ambient temperature between -25°C to 70°C (-13°F to 158°F) to prevent any possible damages during transit.

During installation, carefully secure the VFD in a vibration-free, dust-free, and moisture-free location. Mount it vertically with enough space for proper air circulation to prevent overheating. Ensure that the VFD is visible and easily accessible for any maintenance and service purposes.

Properly ground the ACS580-01-014A-4 VFD's power supply and connect all wiring per the Manufacturer's instructions. Connect the drive to an appropriate circuit breaker or fuse to protect against short circuits and overcurrents.

Safety Precautions:

Wear appropriate protective equipment, including gloves and safety glasses, to avoid injuries caused by electrical shocks, moving parts, and debris during operation. Additionally, the VFD (ACS580-01-014A-4) generates heat during operation. Thus, adequate ventilation is necessary to prevent overheating. Ensure the ventilation openings on the VFD are clear of obstructions and debris.

To prevent any damage to the attached equipment and VFD itself, follow the Manufacturer's instructions for operation. Report and address any deviation from normal operation immediately. Only qualified personnel well-versed in electrical safety practices should install and service the VFD ACS580-01-014A-4. Ensure proper power supply grounding feeding the VFD and install overcurrent and short circuit prevention devices to ensure safe operation.
