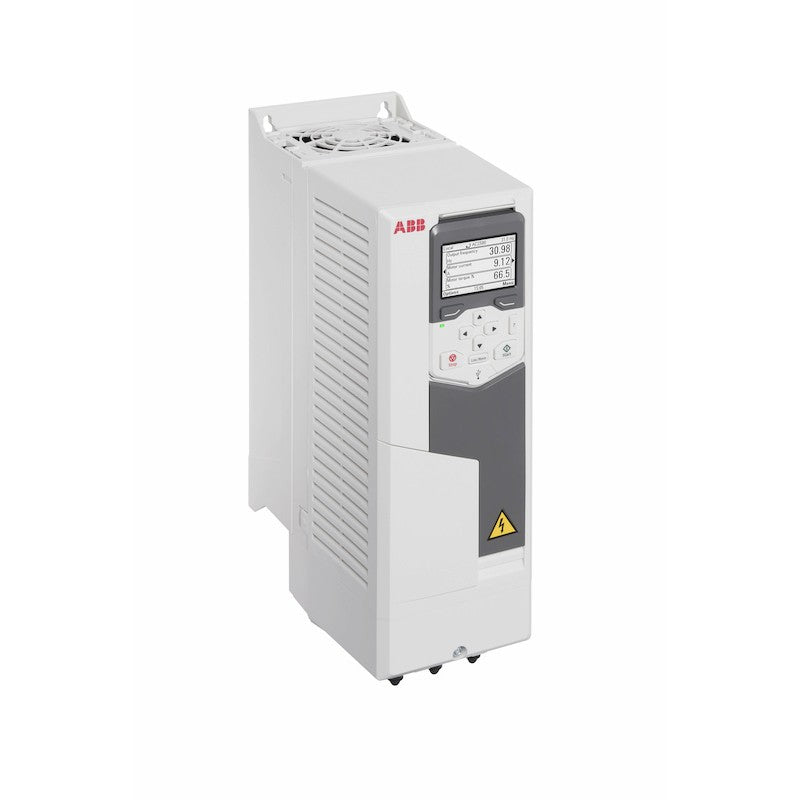

ABB ACS580-01-017A-2

The ACS580-01-017A-2 is a product code from ABB, a multinational corporation specializing in power and automation technologies. This product code refers to a variable frequency drive (VFD) from the ACS580 series, designed to control AC motors in various industrial applications.

This VFD can control AC motors up to 20 kW and operate with a supply voltage ranging from 380 V to 480 V.

The user-friendly interface of the ACS580-01-017A-2, which makes it simple to set up and configure the drive, is one of its essential characteristics. An integrated keypad enables easy configuration of variables like control mode, motor speed, and acceleration and deceleration times.

You can configure the drive with ABB's drive composer software's advanced options and monitor its real-time performance.

Its connectivity features a variety of communication interfaces, including Modbus RTU, Profibus DP, and Ethernet/IP, allowing for simple integration into current control systems.

Various cutting-edge control functions are also included in the ACS580-01-017A-2 to help optimize motor performance and lower energy usage.

For instance, it includes ABB's Direct Torque Control (DTC) technology, a patented feature that offers precise and dynamic control over the motor torque. Especially during low load, this helps increase motor efficiency and decrease energy use.

The drive can endure extremely high temperatures, high levels of humidity, and vibration because it functions in harsh industrial conditions.

Moreover, it has several built-in safeguards that contribute to the safe and dependable operation of the drive, including overvoltage and under-voltage protection, short circuit protection, and thermal overload protection.

Proper installation is essential for the safe and reliable operation of the ABB ACS580-01-017A-2 variable frequency drive. Before installing the drive, it is essential to carefully review the installation instructions provided in the user manual and any relevant safety guidelines and regulations.

Choosing a suitable location for the drive is the first stage in the installation process. Set up the drive in a clean, dry, and well-ventilated spot that is away from sources of heat and vibration. Mount the drive on a sturdy surface or rack.

The next step is to connect the power and motor cables to the ACS580-01-017A-2 drive, following the wiring diagram provided in the user manual. It is crucial to use the correct cable sizes and types and properly tighten and secure all connections. Once the cables are attached, power on the drive and set it up using the onboard keypad or Drive composer software.

It is crucial to establish the correct motor parameters, such as the rated voltage, frequency, and current, as well as any other pertinent settings, such as the acceleration and deceleration times, control mode, and communication parameters, during the configuration process.

The VFD (ACS580-01-017A-2) should be tested to ensure it runs correctly after being configured. To achieve it, operate the motor at various loads and speeds while keeping an eye on the motor voltage and current using an appropriate meter or oscilloscope. Lastly, ensure you correctly ground the drive and perform all necessary safety measures. It includes checking that all protective covers and guards are in place, that any warning labels are clearly visible, and that any relevant safety switches or interlocks are working correctly.
