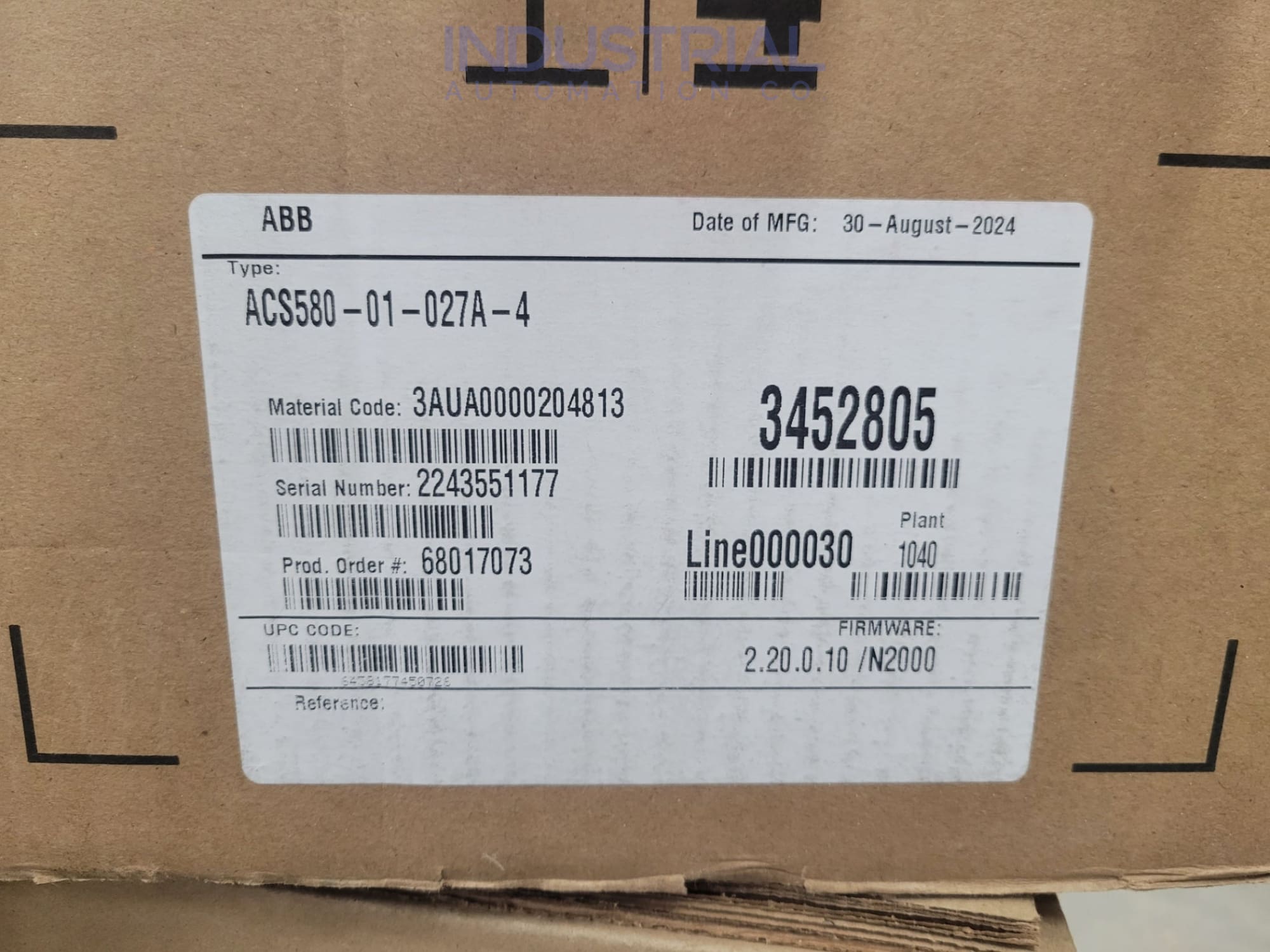

ABB ACS580-01-027A-4

Abb Acs580-01-027A-4 Adjustable Frequency Ac Drive

All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Review our Product Conditions notice here.


$2,443.97

Product Information
Drives, ACS580 Series
Drive, AC, 15HP, 480V, 21.0A, CT, N1
ACS580 Series Information

  • AC Drive
  • Built for Harsh Conditions
  • Intuitive User Interface
  • IP55
  • Can be used for Commercial Applications
  • Sensorless Vector Control

The ABB ACS580-01-027A-4 is a powerful motor drive that offers precise speed control for your application. It features an optimized energy-saving design, providing up to 47% energy savings when compared to standard motors. It also boasts adjustable up to 400 vibrations/min, making it ideal for a wide range of applications.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.


TECHNICAL SPECIFICATIONS

ABB ACS580-01-027A-4



The ACS580-01-027A-4 developed and produced by ABB, is an impressive frequency drive that effectively manages electric motors across many industrial settings. ABB is a prominent supplier of pioneering power and automation technology solutions.

Technical Specifications:

The maximum output power of the model ACS580-01-027A-4 is 22 kilowatts, while the maximum input voltage is 500 volts. It has a nominal input voltage of 380-480 volts and a frequency range of 48-63 hertz.

The input current ranges from 27 to 41.4 amps depending on the voltage level. The ACS580-01-027A-4 drive has a small footprint, measuring 275 mm in height, 190 mm in width, and 262 mm in depth. It can be installed and integrated into existing systems by mounting it on a conventional DIN rail or a wall. It weighs a total of 13 kg.

The power output rating of the drive is 20 hp for light-duty and 15 hp for heavy-duty use. At 12 KHz and 40 degrees Celsius, it has a derating factor of 0.48. The drive's nominal output current is 32 A, and its frame size is R3.

The VFD produces 386W of total heat dissipation, 105 CFM of airflow, and 76 dB of noise. The drive (ACS580-01-027A-4) showcases a resistance capacity of 16 - 37 ohms.

Operating Conditions:

The model is a highly adaptable drive engineered to function efficiently in diverse environmental conditions. It can withstand an extensive range of temperatures, from as low as -10°C to as high as 50°C. It allows for use in both indoor and outdoor settings, regardless of the temperature fluctuations.

The drive has undergone rigorous testing and is designed to withstand significant shock and vibration, with a vibration limit of 1.5 mm peak-to-peak displacement and a shock limit of 15 g. It means it can operate reliably even when other heavy machinery is nearby. Operating altitude is another aspect considered in the ACS580-01-027A-4 drive's design.

Installation and Transportation:

The compact and lightweight ACS580-01-027A-4 drive is a breeze to transport and install. To ensure this drive stays pristine during delivery, handle it carefully and provide adequate protection against physical damage.

During transport, the ambient temperature must be between -40°C and 70°C to protect it from any damage caused by extreme temperatures.

Mount the ACS580-01-027A-4 drive securely and in a stable position during installation to ensure optimal performance. Mount the drive on a standard DIN rail or wall, depending on the application and available space. Additionally, the installation location should be clean and dry, away from sources of heat or moisture that can potentially damage the internal components.

Safety Precautions:

The model ACS580-01-027A-4 features multiple safety measures to safeguard the equipment and operator, such as overcurrent and overvoltage protection and a brake chopper and DC reactor to mitigate regenerative energy and voltage spikes that could damage the motor.

To restrict unauthorized access to the drive, install it securely and limit access solely to authorized personnel. Furthermore, strict observance of safety instructions and warnings is necessary to ensure the safe and efficient operation of the drive.

Additionally, when operating the drive (ACS580-01-027A-4), remember to wear appropriate personal protective equipment, such as safety glasses or gloves, to guard against potential hazards. Before conducting any maintenance or service work, powering off the drive and disconnecting it from the main supply is crucial.
