TECHNICAL SPECIFICATIONS

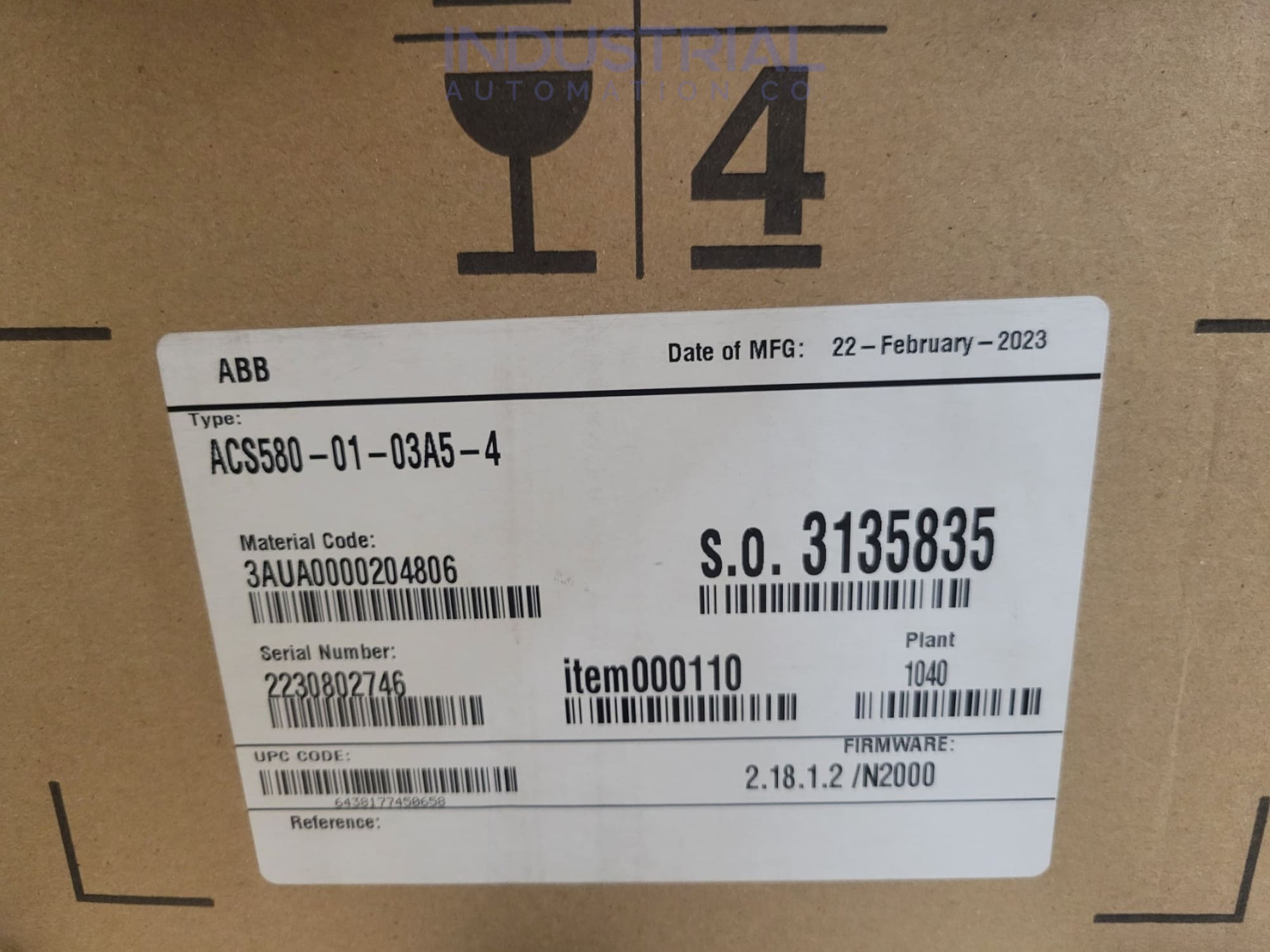

ABB ACS580-01-03A5-4

The ACS580-01-03A5-4 is a variable frequency drive (VFD) produced by ABB, a leading manufacturer of industrial automation products. Its purpose is to control the speed of induction motors. It is compact, easy to install, operate, and maintain, and has advanced control features and built-in safety functions.

Technical specifications and features:

The ACS580-01-03A5-4 is a versatile and reliable variable frequency drive that is an excellent choice for various industrial applications. One of its key strengths is its impressive power range, which spans from 0.75 kW to 250 kW. This broad range ensures that the frequency drive can meet the power requirements of many different types of machinery and equipment.

Another important feature of the ACS580-01-03A5-4 is its ability to operate in multiple control modes. Users can choose from V/Hz, and vector control, depending, and sensorless vector control on their specific needs and preferences. This flexibility allows for more precise and efficient control over the speed and torque of the motor, which can improve overall performance and reduce energy consumption.

Finally, the ACS580-01-03A5-4 has built-in communication capabilities, including Modbus, Ethernet, and PROFIBUS. These communication protocols allow seamless integration with other industrial automation systems and give users real-time access to critical data and information.

The model offers built-in features and communication capabilities, making it a flexible and dependable VFD. You can swiftly stop the motor in an emergency using its brake chopper and accurately control motor speed and acceleration through PID control.

Installation and operation:

Mount the device in a dry and clean location to avoid any potential damage. Then, connect the power cables to the device. Make sure also to connect the motor cables to the device. Any optional accessories, such as communication modules or I/O expansion modules, should also be installed at this point.

At last, turn on the power to the device and follow the start-up procedure provided by the Manufacturer to ensure that the VFD is functioning correctly. It is crucial to follow all instructions carefully to prevent damage to the VFD or connected equipment and ensure a safe and successful installation.

The ACS580-01-03A5-4 is known for its user-friendly interface and easy operation. The first step is to power the device and wait for it to complete its start-up procedure. Once the device is ready, the user can set the desired control mode and speed reference using the control panel.

The model's control panel is easy to navigate, and the user can easily adjust the device's settings. Monitoring the device's performance during operation is essential, and you can do this by using the control panel or any connected communication interfaces.

Maintenance:

The ACS580-01-03A5-4 model is a low-maintenance variable frequency drive designed to operate efficiently without frequent attention.

There are a few fundamental maintenance tasks that should be carried out, such as inspecting the device for signs of wear or damage, cleaning it and its surroundings to avoid the accumulation of dust and debris, replacing any worn or damaged components, etc.

The ACS580-01-03A5-4 also features built-in safety features, such as a safe torque-off function that shuts down the motor in an emergency, further ensuring the device's long-term reliability and safety.
