TECHNICAL SPECIFICATIONS

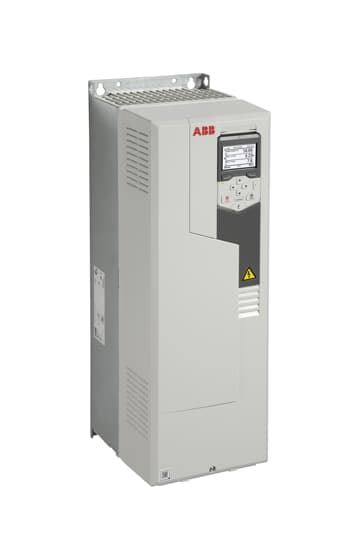

ABB ACS580-01-077A-4

The ACS580-01-077A-4 is a modern VFD tailored to deliver superior motor control for industrial applications. With state-of-the-art capabilities and features, this innovative drive ensures precision in managing motor speed and torque, resulting in higher energy efficiency, minimized maintenance expenditures, and enhanced production capacity.

Technical Specifications:

This drive, ACS580-01-077A-4, has an input current rating of 77 amps and a voltage range of 380-480 VAC. Its current is 117 amps, making it appropriate for driving high-power industrial motors.

This drive has a height of 251 mm, a width of 185 mm, a depth of 232 mm, and a weight of 41.9 lbs. The drive also has an IP20 rating, which protects it from solid objects with a diameter greater than 12 mm.

The output power ratings of the VFD range from 50 to 60 hp. It has an 88 amps nominal current output and a 77 amps fuse input current. It has a 600 V rated voltage. The heat dissipation of the R4 frame-size drive is 1047 W, the airflow is 159 m3/h, and the noise generation is 70 dB. The drive's heat dissipation with the flange kit is 887 W.

Operating Conditions:

The drive is engineered to excel in various operating conditions. Designed to withstand the typical vibrations in industrial environments, the model ACS580-01-077A-4 has a vibration limit of 1.5 mm peak-to-peak at 3 to 13.2 Hz and 0.7 g RMS at a frequency between 13.2 to 150 Hz. These vibration limits do not affect the drive's performance when used.

Installation and Transportation:

To ensure proper installation and operation of the ACS580-01-077A-4 inverter drive, follow the Manufacturer's instructions carefully. For optimal performance, install the drive in a well-ventilated, clean, and dry location that offers sufficient space for proper cooling and airflow.

When wiring and grounding the drive, pay close attention to ensure proper installation. Any incorrect wiring or grounding could damage the drive or other equipment. Regularly inspect the drive to ensure it works efficiently, and all components are in good condition.

During transportation, carefully handle the frequency drive ACS580-01-077A-4 to avoid damaging the drive or its components. Always use the original packaging and avoid dropping or jarring the package.

Optimal temperature conditions, ranging from -25 to +70 degrees Celsius, must be maintained while transporting the drive to prevent potential damage caused by significant temperature changes.

Safety Precautions:

The model ACS580-01-077A-4 is a competent variable frequency drive with precise motor control for various industrial applications. The device has advanced safety features to safeguard against electrical faults and other issues.

However, taking appropriate safety measures to protect yourself and others while using the equipment is vital. All wiring and connections must be properly insulated and protected.

Position the device in a well-ventilated area to prevent overheating. These precautions will help ensure a safe and smooth operation of the drive (ACS580-01-077A-4).

Firmware Instructions:

To ensure optimal operation, you must regularly update the drive's firmware (ACS580-01-077A-4), as it highly relies on it to function. Neglecting to update the firmware can lead to many problems, from inefficient operation to damaged equipment.

One of the primary benefits of updating VFD firmware is increased efficiency. The Manufacturer continually improves their drives, and firmware updates often include optimization that can significantly lower energy consumption.
