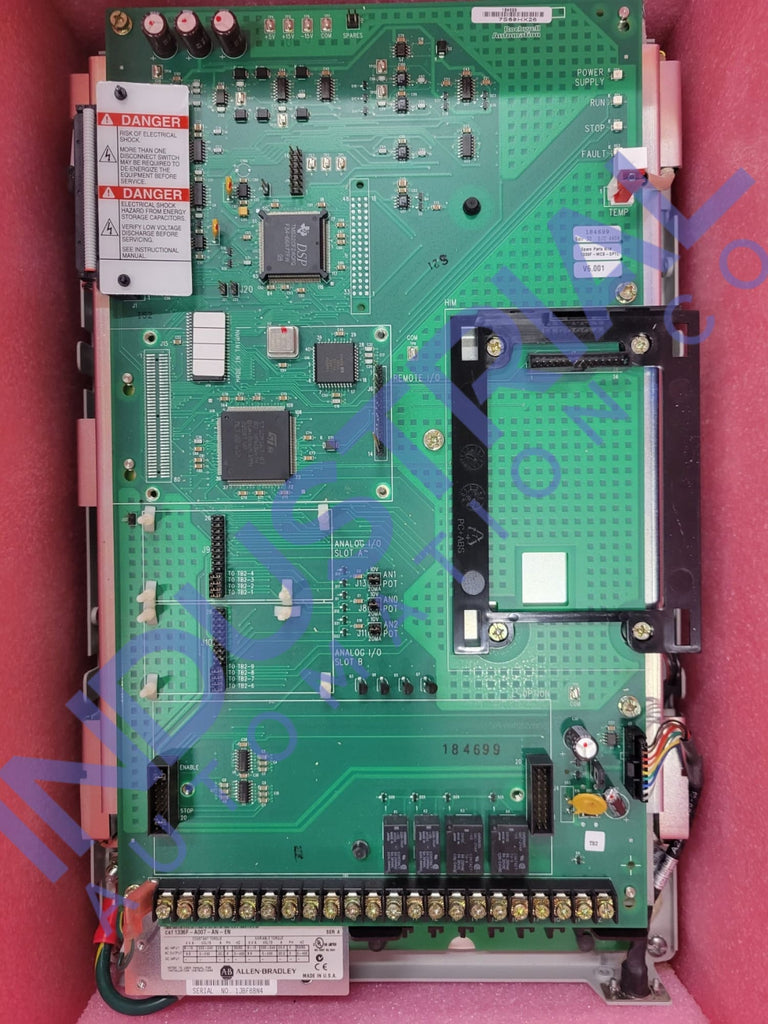

Allen-Bradley 1336F-A007-AN-EN

A high-performance adjustable frequency drive, the Allen-Bradley 1336F-A007-AN-EN is intended to provide dependable and accurate motor speed regulation for a vast array of industrial applications. Under its sophisticated technological attributes and sturdy construction, this model guarantees maximum effectiveness and heightened security in rigorous automation environments.

Technical Specifications:

With a power capacity of 5.5 kW (7.5 HP) and an operating voltage range of 200-240V AC, this model is appropriate for a wide spectrum of medium-scale industrial applications. Its IP 00 (Open) enclosure enables seamless integration into preexisting systems without the need for supplementary security measures.

The frequency drives remarkable overall efficiency of 97.5% can be attributed to its effective energy conservation features. The motor control is efficiently regulated by a Sine-coded Pulse Width Modulated signal that can be programmed between 2 and 8 kHz. Additionally, this devices output frequency spans from 0 to 400 Hz, allowing for its multifarious application implementation.

The device features analog and digital inputs, ensuring frequency accuracy of ±0.4% of the utmost output frequency and ±0.01% of the set output frequencies, respectively. Preciseness is of the utmost importance in processes that necessitate strict speed regulations.

In addition, the 1336F-A007-AN-EN has a small design that measures 276.4mm x 476.3mm x 225.0mm and has a total heat dissipation of 642W. This frequency drive has a net weight of 22.7 kilograms, which is a relatively small amount that allows it to be fitted in a variety of different configurations.

Ambient Operating Parameters:

Owing to its durable design, the drive can withstand storage temperatures between -40 and 158 °F and functions within a functional ambient temperature range of 32 to 122 °F. Additionally, it can operate at altitudes as high as 1000 meters, with the required reduction in power to account for the thinner air that could impede the chilling process.

The resilient construction is capable of withstanding a 15G operational jolt for 11 milliseconds and a 1G peak vibration, guaranteeing dependable operation in industrial environments susceptible to mechanical disruptions.

Built-in Safety Features:

The Allen-Bradley 1336F-A007-AN-EN incorporates numerous built-in features to prioritize operational safety. Class 10 Motor Overload protection and a heat sink thermistor-detected microprocessor-based over-temperature control ensure that the device operates at safe temperatures.

Using the default sensorless vector speed control obviates the necessity for mechanical sensors, thereby augmenting motor responsiveness and diminishing maintenance obligations. Furthermore, surge protection, phase-to-ground protection, and phase-to-phase protection with metal oxide varistors are also integrated. AC input over/under voltage trip thresholds of 285V AC and 138V AC and BUS DC over/under voltage trip thresholds of 405V DC and 200V DC further enhance safety.

Frequently Asked Questions:

How does the Allen-Bradley 1336F-A007-AN-EN ensure motor protection?

In addition to safeguarding against Class 10 motor overload, it regulates overheating using a heat sink thermistor. These characteristics protect the motor and drive from harm caused by overheating and excessive load.

Can the Allen-Bradley 1336F-A007-AN-EN operate at high altitudes?

Although it may function at altitudes of up to one thousand meters above sea level, it must be derated to account for the reduced efficiency of refrigeration at such heights.

What are the efficiency and output frequency ranges of the Allen-Bradley 1336F-A007-AN-EN?

The drive features a variable output frequency range of 0 to 400 Hz and an efficiency of 97.5%. Due to its broad frequency range and high efficiency, it is appropriate for various applications.

Product Specifications Table:

Attributes	Specification
Voltage Range	200-240V AC
Power Capacity	5.5 kW (7.5 HP)
Enclosure Type	IP 00 (Open)
Overall Efficiency	97.5%
Signal Type	Sine-coded Pulse Width Modulated
Programmable Frequency Range	2 to 8 KHz
Output Frequency Range	0 to 400 Hz
Frequency Accuracy	±0.01% of set output, ±0.4% of max output
Heat Dissipation	642W
Dimensions and Weight	276.4mm x 476.3mm x 225.0mm, 22.7 Kg
