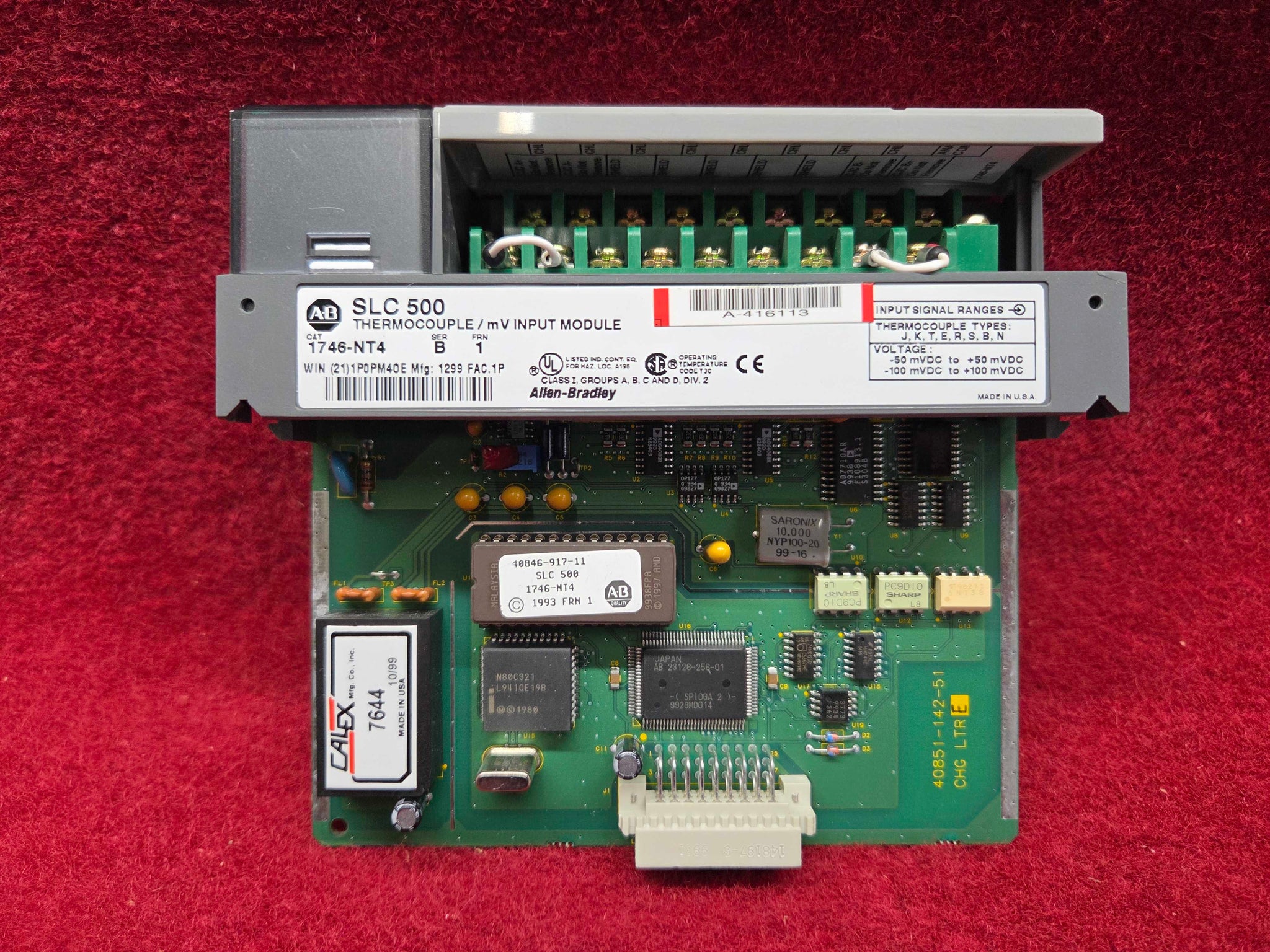

1746NT4
DISCONTINUED BY MANUFACTURER
INPUT MODULE
4 POINT
THERMOCOUPLE MODULE
SLC 500 SERIES
MV ANALOG
TYPE B/ E / J / K / N / R / S / T
50 MV OR 100 MV
All products are covered by Industrial Automation Co.'s 2-Year Warranty.
Condition
SKU
Price
Warranty
Availability
Quantity
Purchase
Technical Specifications
Manufacturer
Industrial Automation
Brand
Allen-Bradley
Part Number/Catalog No.
1746-NT4
Series
SLC 500
Inputs
4
Module Type
Thermocouple/mV Analog Input Module
Backplane Current (5 Volts)
60 milliamps
No. of Inputs
Four (4)
Backplane Current (24 Volts)
55 milliamps
Compatible Thermocouple Sensors
J, K, T, E, S, R, B and N
Update Time
26 milliseconds-1.2 seconds
Compatible miliVolt signal
+/- 50 mV and +/- 100 mV
Resolution
16 bits in, 14 bits out
Backplane Current
0.06 mA @ 5VDC; 0.04 mA @ 24VDC
Step Response
60 milliseconds in, 2.5 milliseconds out
Backplane Power Consumption
0.8W maximum (0.3W @ 5V dc, 0.5W @ 24V dc)
Channels
4 backplane isolated
Open Circuit Detection
Zero; Upscale; Downscale
UPC
10612598172693
I/O Chassis location
Any slot except Slot 0
UPC
10662468165911
Operating Temperature
0 to 60 degrees Celsius
Storage Temperature
-40 to 85 degrees Celsius
A/D Conversion method
Sigma-delta modulation
