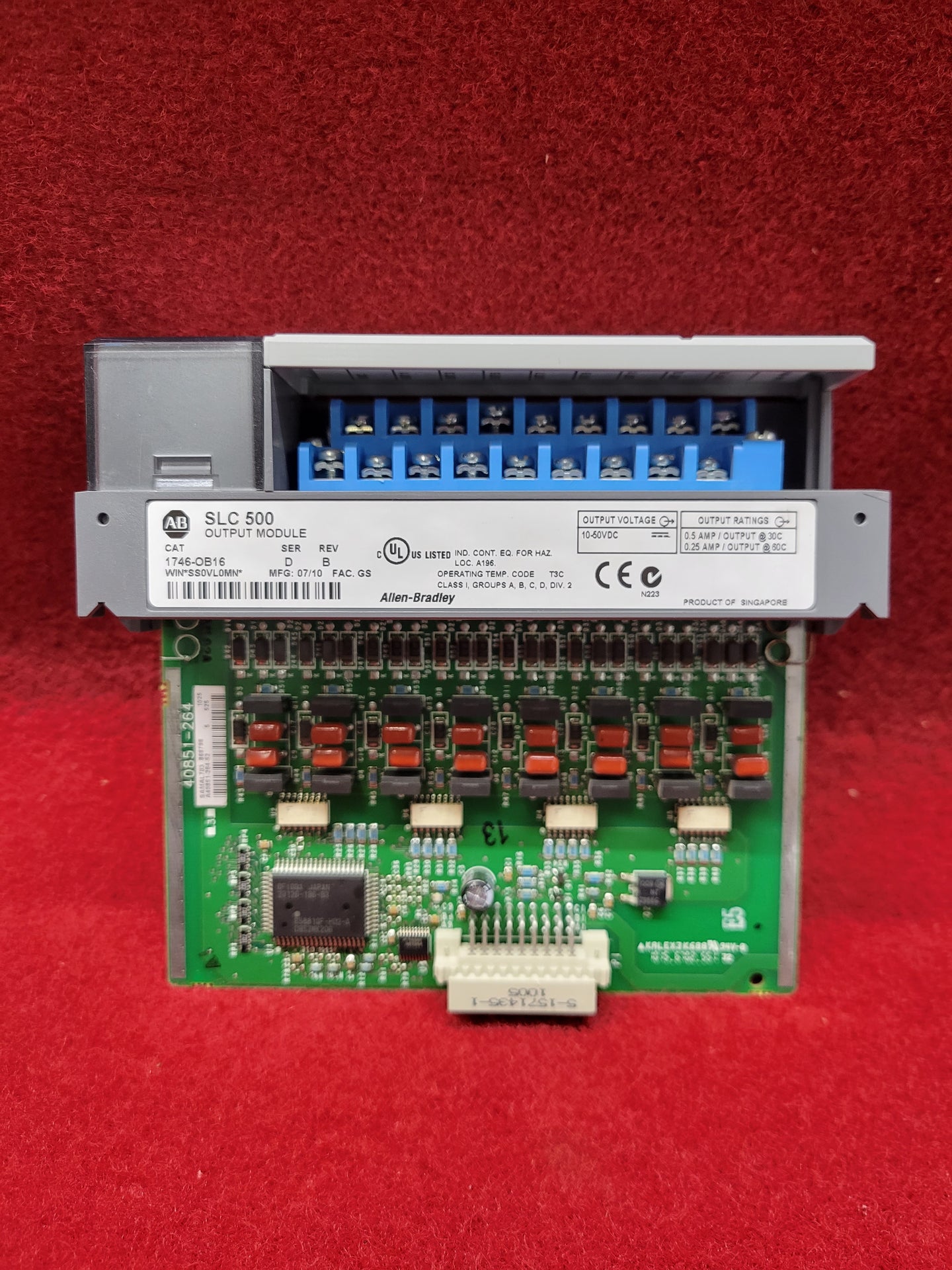

Allen-Bradley 1746-OB16

Allen-Bradley 1746-OB16
Allen-Bradley 1746-OB16

Allen-Bradley 1746-OB16

$0.00

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Request a Price Quote
Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available

We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

The Allen-Bradley 1746-OB16 is a discrete output module designed for the SLC 500 series, featuring sixteen 24V DC output channels for precise control in automation processes. This module seamlessly integrates into the SLC 500 chassis, excluding the processor-reserved slot, and is capable of driving devices with a backplane current draw of 0.280A at 5V DC. With a swift ON signal delay of 0.1 ms and OFF delay of 1 ms, it handles a continuous current of up to 1.5A per channel at 30°C, providing reliable performance across its operational range from 0 to 60°C. The 1746-OB16 maintains operational integrity in demanding environments, boasting approvals for UL, CSA, and hazardous location standards, while offering comprehensive voltage isolation and impressive shock and vibration resistance.


Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
Surplus Original Box 1746-OB16 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

Quick Search

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


TECHNICAL SPECIFICATIONS

Technical specifications for 1746-OB16

Manufacturer Rockwell Automation
Module Type Digital DC Output Module
Series SLC500
Part Number/Catalog No. 1746-OB16
Brand Allen-Bradley
No. of Outputs Sixteen (16) outputs
Output Voltage 24VDC output
Operating Voltage Range 10-30VDC
Output Delay Time, OFF to ON 1.0 ms
Output Delay Time, ON to OFF 0.1 ms
OFF state leakage current 1 mA
Backplane Current at 5.1 Volts 0.135 A
Continuous current per point 1.5 A @ 30 °C (86 °F) 1.0 A @ 55 °C (131 °F)
Continuous current per module, max 6.4 A @ 0...60 °C (32...140 °F)
Voltage Range 10-50 Volts DC Source
Outputs 16
Current/Output 0.5 or 0.25 amps
Current/Module 8 or 4 amps
Backplane Current (5 Volts) 280 milliamps
Current/Module (30 Celsius) 9 amps
Applications High Current
Step Response 60 milliseconds in, 2.5 milliseconds out
Heat Dissipation 7.6 Watts
UPC 10662468067055
UNSPSC 32151705
