Allen-Bradley 1746SC-INO4VI
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description

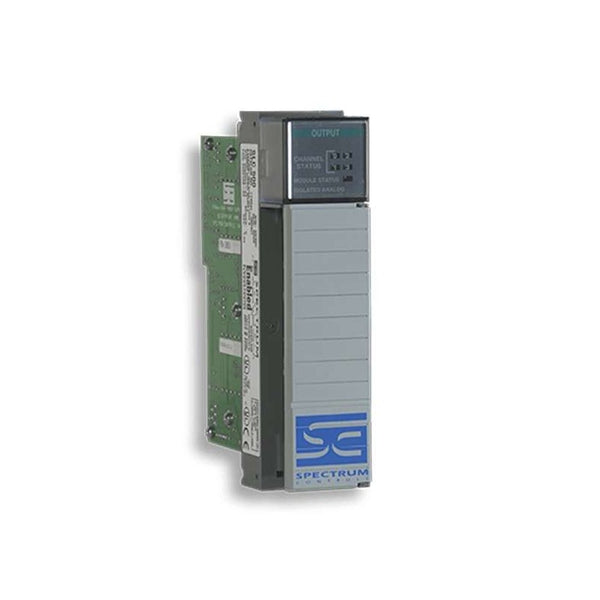

The 1746SC-INO4VI analog output module from Spectrum Controls offers four isolated channels compatible with a variety of current and voltage signals, including 0-20 mA and ±10 V, optimized for the SLC500 PLCs. With a 16-bit resolution and superior features such as auto-calibration and programmable limits, this module ensures high precision, offering output accuracies of up to 0.08% at 25°C for current and extended reliability with a non-linearity rating of 0.02%. Designed for robust industrial use, it operates within a 0 to 60°C ambient temperature range, supports non-condensing environments up to 95% humidity, and requires handling under ESD protection guidelines to ensure durability and optimal performance.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 1746SC-INO4VI
| Brand | Allen-Bradley |
|---|---|
| Part Number/Catalog No. | 1746sc-INO4VI |
| Resolution | 16-bit |
| Manufacturer | Spectrum Controls |
| Compatible Series | SLC500 |
| No. of Inputs | Four (4) analog output channels |
| Channel isolation: | Yes |
| Slot Width | Single slot |
| Compatible Current signal | 0-20 mA, 0-21 mA and 4-20 mA |
| Compatible Voltage signal: | 0-5 V, 1-5 V, 0-10 V and ±10 V |
| Accuracy: | 0.08% of full scale @ 25 Degree Celsius and 0.10% of full scale at 60 Degree Celsius for Current; 0.10% of full scale @ 25 Degree Celsius and 0.35% of full scale @ 60 Degree Celsius for Voltage signal. |
| Non-linearity rating: | 0.02% of full scale |
| Step Response Time: | 1 ms to 95% of full scale |
| Electrical Isolation: | Field wiring to backplane: 500 VAC continuous Channel- to-channel isolation: 500 VAC continuous |
| Backplane Current Required: | 120 mA at 5 V; 250 mA at 24 V |
| Product Type | Analog Output Module |
| Rockwell Automation Compatible Series | SLC 500 |
| Channels | 4 |
| Input Type | Analog Isolated Current/Voltage |
| Input Current | 0-20 mA |
| Input Voltage | 0-5V |
| Thermal Dissipation | 5 W max. |
| UPC | 850637004212 |
