Allen-Bradley 1746sc-NI8U

Allen-Bradley 1746sc-NI8U
Allen-Bradley 1746sc-NI8U

Allen-Bradley 1746sc-NI8U

$0.00

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Request a Price Quote
Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available

We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

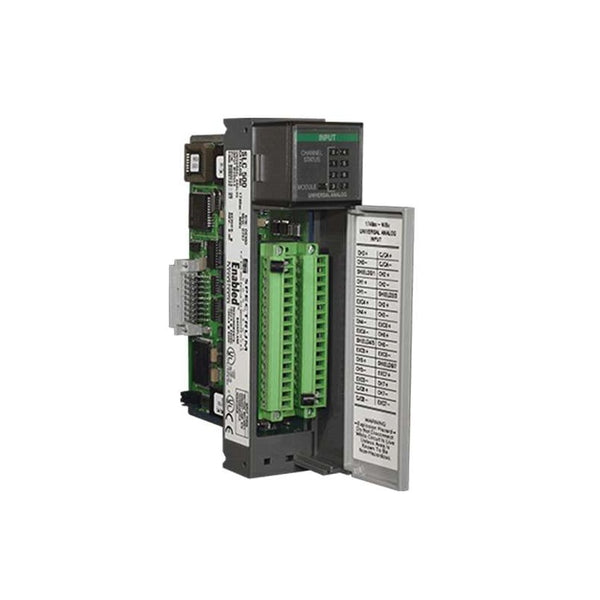

The Spectrum Controls 1746sc-NI8U is an 8-channel universal analog input module tailored for Allen-Bradley SLC 500 systems, facilitating seamless integration into industrial automation. This versatile module supports a diverse range of input types, including thermocouples, RTDs, millivolt, voltage, and current signals, with compatibility for thermocouple types J, K, T, B, E, R, S, N alongside PT100 RTDs and resistance inputs up to 3000 Ohms. It is adept at handling standard signal ranges from 0-20 mA to ±10 V. Noteworthy for its straightforward installation, it fits any slot in an SLC-500 chassis, barring slot 0, and offers simple data exchange with SLC processors through its image table. Operating within a 0 to 60°C temperature range, the module is powered via the SLC-500 chassis, drawing 0.12 Amps at 5 Volts DC and 0.1 Amps at 24 Volts DC, and is built to meet UL, CUL, and CE certifications.


Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
Surplus Original Box 1746sc-NI8U 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

Quick Search

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


TECHNICAL SPECIFICATIONS

Technical specifications for 1746sc-NI8U

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1746sc-NI8u
Manufacturer Spectrum controls
Product Type Universal Analog Input Module
Series SLC
Module Type Universal Analog input module
Rockwell Automation Compatible Series SLC 500
No. of output Six (6) individually isolated channels
Channels 8
Compatible thermocouple sensors: J, K, T, B, E, R, S, N, and C
Input Types 31
Compatible RTD sensors: PT385/3916, Ni618/672, Cu426
Input Current 0-20 mA
Compatible resistance signals: 0-3000 ohms
Input Voltage 0-5 V
Compatible current input signals: 0-20 mA; 4-20 mA
Input Overcurrent Protection 28 mA cont.
Compatible voltage signals: ±50 mV, ±100 mV, ±0.5 V ±2.0 V 0-5 V, 1-5 V, 0-10 V, and ±10 V
Thermal Dissipation 3 W max.
Input filters: 10 Hz; 50 Hz; 60 Hz; 250 Hz
UPC 850637004236
No, of channels: 8 V, C, or TC, or 2 RTD/Res (2 groups of 4 Ch)
Recommended Cable For TC inputs: shielded, twisted-pair TC extension wire;
Recommended cable For RTD, mV, V, or mA inputs: Belden 8761 or equivalent;
Recommended cable For RTD inputs: shielded Belden 9501, 9533, 83503
