Allen-Bradley 1746sc-NO8I
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description

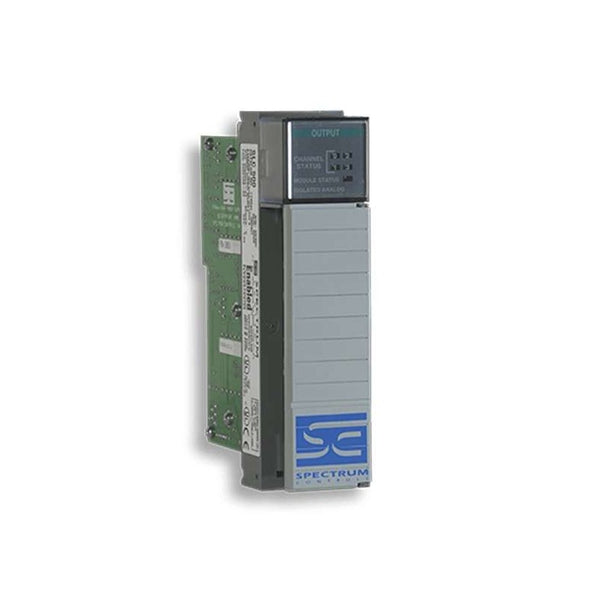

The Spectrum Controls 1746sc-NO8I is a high-performance analog output module tailored for Allen-Bradleys SLC 500 systems, offering eight current output channels that support 0-20 mA and 4-20 mA signals with 16-bit resolution. Designed for precise control of modulating devices like valves and VFDs, this module is also ideal for signal retransmission to panel meters and data loggers. With a compact design fitting a single slot, it requires a backplane current of 120 mA at 5 VDC and 240 mA at 24 VDC, and includes a removable terminal block for easy installation and maintenance, though it is not hot-swappable.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 1746sc-NO8I
| Brand | Spectrum Controls |
|---|---|
| Series | SLC |
| Manufacturer | Spectrum controls |
| Part Number | 1746SC-NO8I |
| Part Number/Catalog No. | 1746sc-NO8I |
| Product type | Analog current output module |
| Module Type | Analog output module |
| Compatibility | Allen Bradley SLC 500 |
| No. of output | Eight (8) |
| Cable | Belden 8761 |
| Output signals | 0-20 mA; 4-20 mA |
| Terminal screw torque | 7 lb-in to 9 lb-in |
| Module resolution | 16-bit |
| Wire size | Maximum 14 AWG |
| Slot width | 1-slot |
| Mounting location | any slot of 1746 chassis except slot |
| Backplane Current consumption | 120mA at 5 VDC and 240 mA at 24 VDC |
| Recommended cable | Belden 8761 (shielded, twisted-pair) or equivalent |
| Operating Temperature | 0°C to +60°C (+32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Humidity | 5 to 95% non-condensing |
