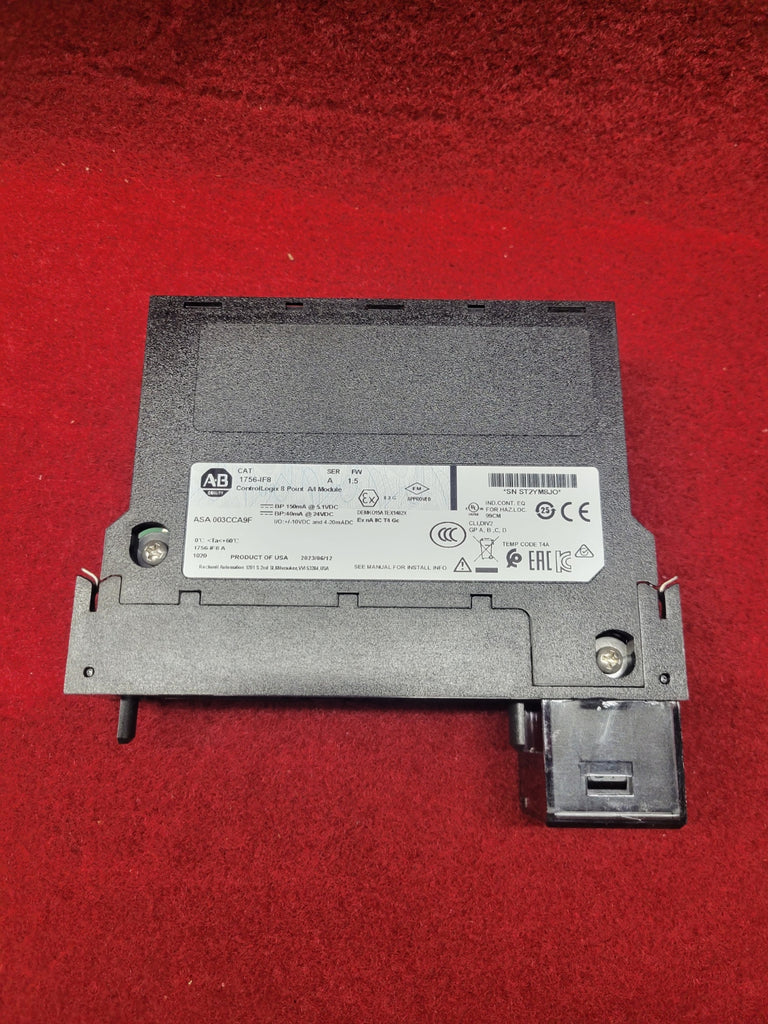

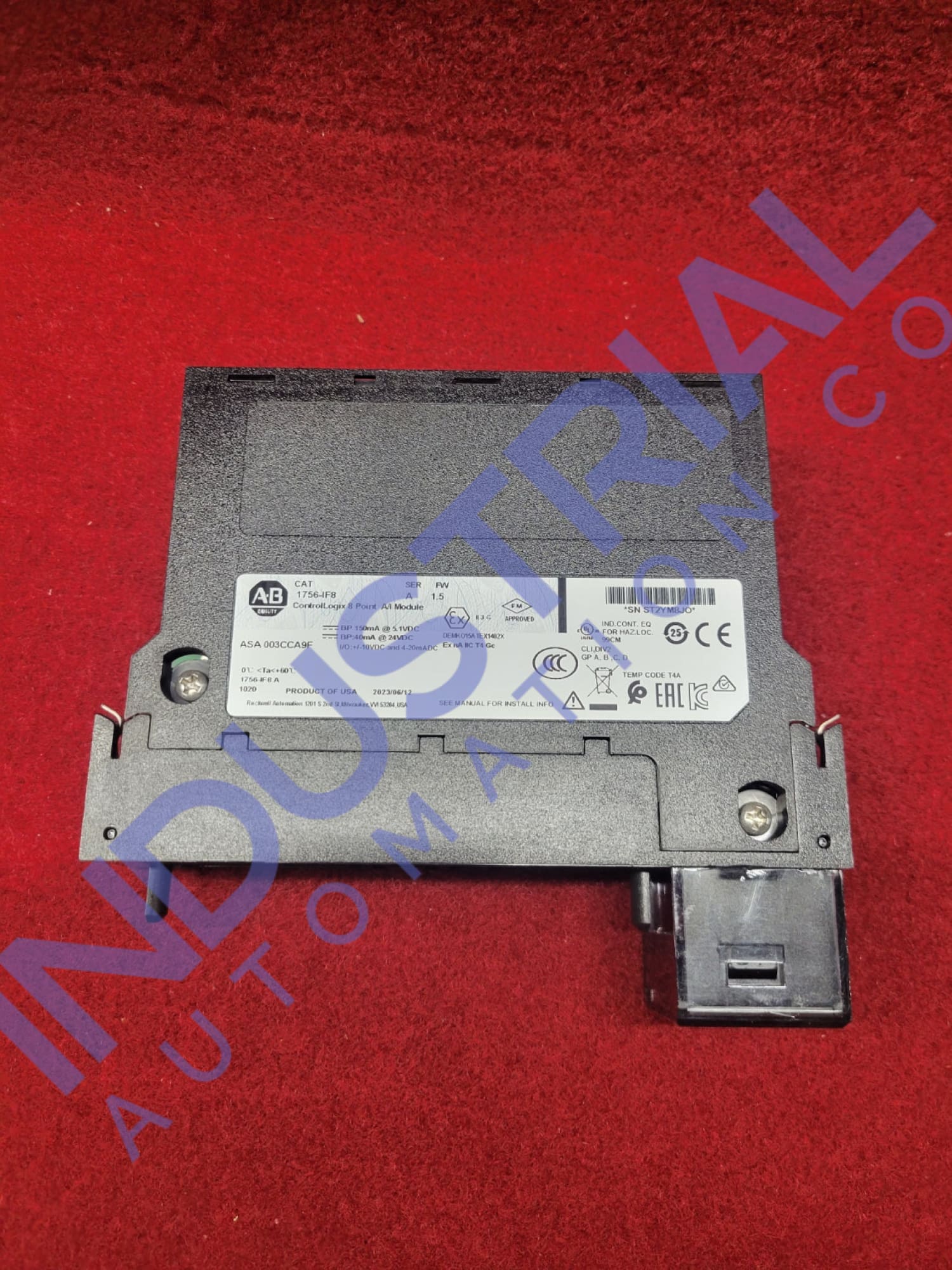

Allen-Bradley 1756-IF8

Allen-Bradley 1756-If8

Allen-Bradley 1756-IF8

Regular price
Sale price
We currently have 4 in stock.
Checkmark

In stock - Ships Today

Checkmark

Eligible for Next Day Delivery

Checkmark

Ships From Our North Carolina Warehouse

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice‚ here.

  • 1756IF8
  • I/O MODULE
  • CONTROLLOGIX
  • ANALOG INPUT
  • 8 CHANNEL
  • 24 VDC

The Allen-Bradley 1756-IF8 is a trusted digital input-output module for maximum flexibility and performance. With its valuable features, this module helps you control up to eight individually isolated digital inputs. It produces maximum output of 2A at 24VDC and is designed to withstand extreme temperatures.


Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
Surplus Original Box 1756-IF8-FS $480.00 USD 2 Year Extended Warranty 4 In Stock in US!
Surplus Original Open Box 1756-IF8-NSO 2 Year Extended Warranty 1 In Stock in US!
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


TECHNICAL SPECIFICATIONS

The Allen-Bradley 1756-IF8 ControlLogix analog input module is commonly used to connect instruments and equipment that generate analog signals, such as transmitters, transducers, signal splitters, signal isolators, panel meters, and other devices with comparable capabilities. It has eight input channels that may be configured for a range of input signals, including 0...20 mA for current signals and 0...10V dc, 0...5V dc, and ±10V dc for voltage signals.

The single-slot 1756-IF8 analog input module has a high conversion resolution. It has several resolutions. The number of significant bits is 16, which corresponds to 65,536 counts. The resolution is 320 µV per count at an input range of ±10.25 V, 160 µV per count at an input range of 0...10.25 V, 80 µV per count at an input range of 0...5.125 V, and 0.32 µA per count at an input range of 0...20.5 mA.

There is essentially no restriction on how many times this module may be installed. Up to 4000 analog I/O signals can be supported by most ControlLogix controllers. The 1756-IF8 analog input module may be installed adjacent to the controller in the local chassis or distributed I/O racks.

Sigma-Delta signal conversion and IEEE 32-bit floating point data storage format are also capabilities of the 1756-IF8 analog input module. It makes use of user-defined, mechanical keying on the 1756-TBCH and 1756-TBSH removable terminal blocks (RTB).

Depending on the needs of the user and the application, the 1756-IF8 analog input module may be connected in single-ended, differential, or high-speed differential wiring. The single-ended method works well when every input device is connected to the same ground. To give digital data to a controller, the module first determines the difference between the signal ground and one side of the input of the signal.

Differential wiring is advised for uses where there may be separate signal pairs or where there is no shared common ground. This wiring technique is also suitable for environments that call for improved noise immunity. In a differential mode, the channels are not isolated from one another. The reading of one channel may have an impact on the reading of some other channel if multiple differential input signals make use of various common voltage references. Users should connect the input on distinct modules or replace the non-isolated module with an isolated module if this occurs.

The high-speed differential wiring approach enables the fastest data changes. The wire configuration affects how long it takes the module to scan. For single-ended, differential, and high-speed differential wiring, the scan time is 16 to 488 ms, 8 to 244 ms, and 5 to 122 ms, respectively.

Module filter, under-range/over-range detection, process alarms, wire-off detection, various input ranges, real-time sampling, digital filter, and rate alarms are characteristics specific to the 1756-IF8 analog input module. The highest current ratings for its backplane are 150 mA at 5.1V dc and 40 mA at 24V dc. The device has a 1.73 Watt power consumption and maximum overvoltage protection of 30V dc.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1756-IF8
SeriesControlLogix
Module TypeAnalog Input Module
Inputs2 high-speed differential, 4 differential, 8 single-ended
Input Resolution (+--) 10.25 Volts, 0-5.125 Volts, 0-10.25 Volts
Backplane Current (5Volts)150 milliamps
Backplane Current (24Volts)40 milliamps
Power Dissipation (Max)1.73 Watts (Voltage), 2.33 Watts (Current)
Removeable Terminal Blocks1756-TBCH, 1756-TBS6H
Removeable Terminal Blocks1756-TBCH, 1756-TBS6H
Power Consumption1.73 Watts
RSLogix 5000 SoftwareVerson 8.02.00 or later
UPC10612598171795
UNSPSC32151705
