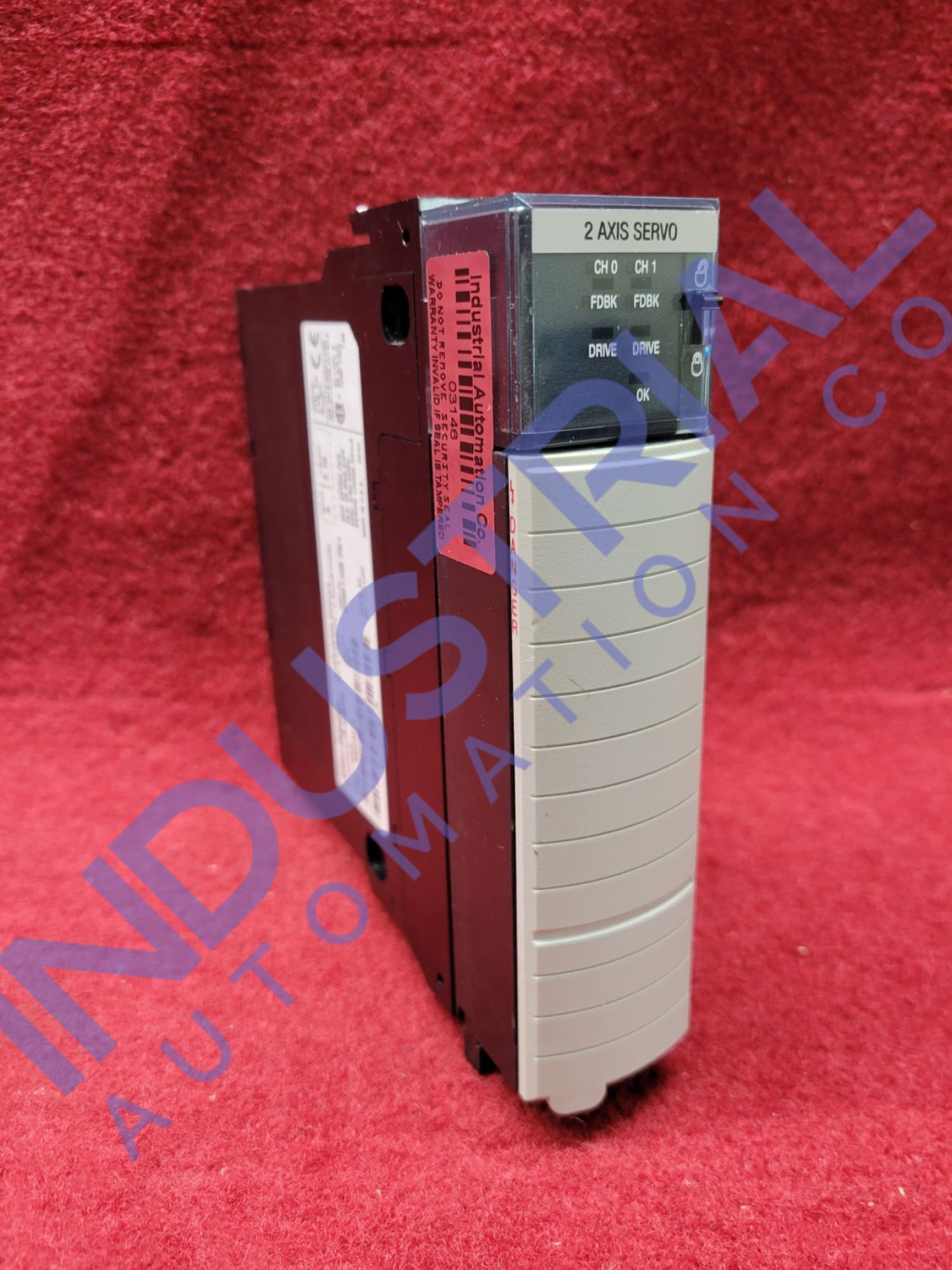

Allen-Bradley 1756-M02AE
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Description
The Allen-Bradley 1756-M02AE is an advanced analog encoder module designed for precise motion control applications within ControlLogix systems, featuring two axes and supporting both velocity and torque reference inputs with a +/- 10V analog output. Ideal for open-loop or closed-loop control, it integrates seamlessly with rotary and linear quadrature-output transducers, updates position feedback every 500 microseconds, and is capable of handling up to 4 MHz count per second via a 4X quadrature encoder mode. The module supports current sinking configurations with optically isolated inputs and boasts a robust design suited for both standalone and distributed installations, providing solid-state relay contact outputs suitable for demanding industrial environments.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Series | ControlLogix |
| Part Number/Catalog No. | 1756-M02AE |
| Module Type | Servo Analog Encoder Module |
| Axes per Module | Two (2) |
| Axes per Controller | Thirty-Two (32) |
| Input Type | Encoder input: Incremental AB quadraturewith marker |
| Discrete Input type | Optically isolated, current sinking |
| Discrete Input operating Voltage | 24VDC |
| Servo Output Type | Analog voltage |
| Servo Output Resolution | 16 Bits |
| Thermal Dissipation | 21.2 BTU-hour |
| Discrete Output | Solid-state isolated relay contact |
| Isolation Voltage | 50 Volts Continuous |
| Operating voltage | 24V DC (Class 2 source) |
| Enclosure | None |
| Backplane Current (24Volts) | 2.5 mA |
| Backplane Current (5Volts) | 700 mA |
| UPC | 10612598172396 |
| Removeable Terminal Blocks | Removeable Terminal Blocks |
| Current Draw (5.1 Volts) | 1.2 amps |
| Power Dissipation | 6.2 Watts |
