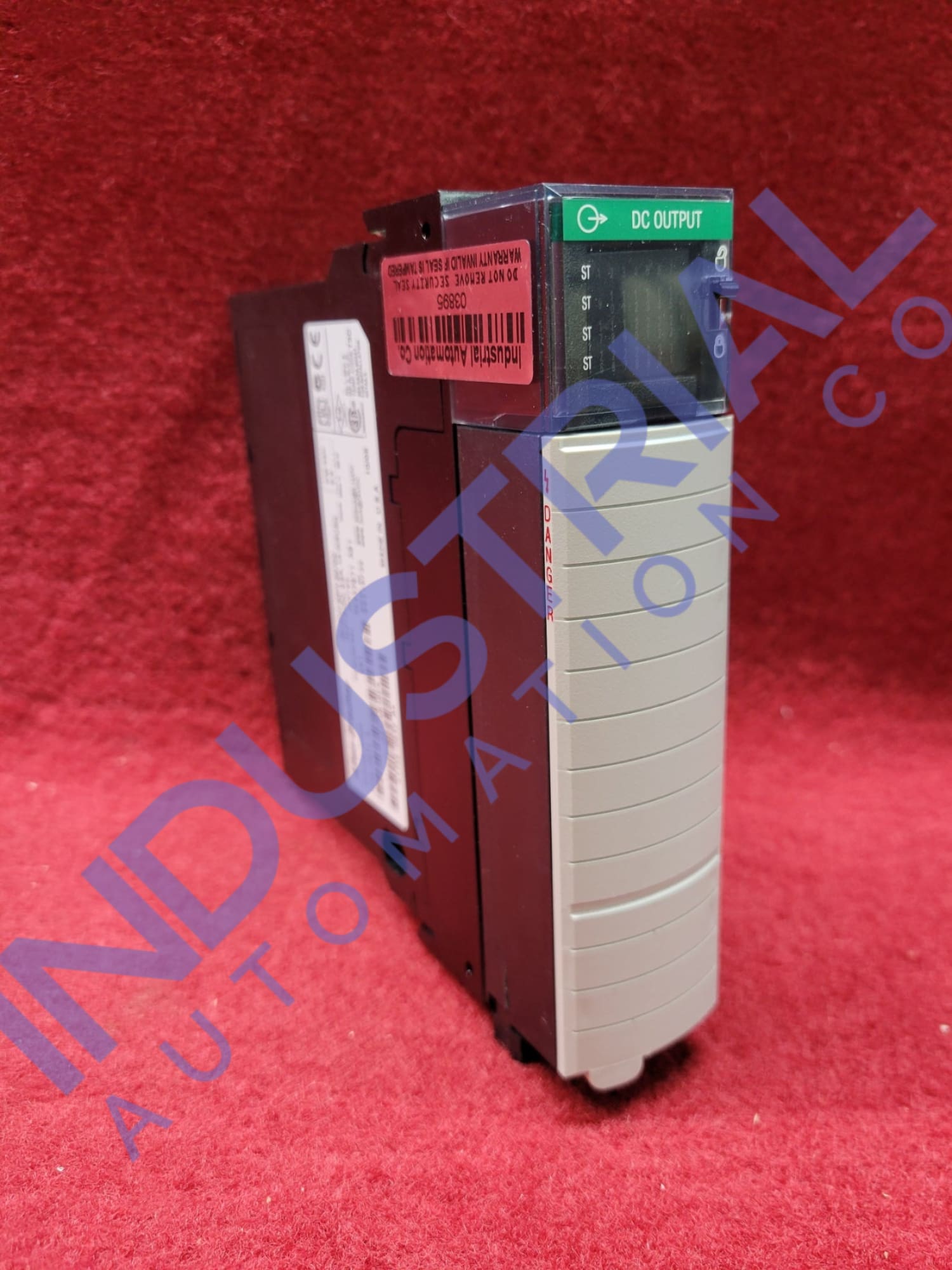

Allen-Bradley 1756-OB32
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Description
The Allen-Bradley 1756-OB32 is a high-density 24VDC discrete output module designed for applications requiring numerous outputs in a compact space. Compatible with any ControlLogix processor, it supports installation in both local and remote chassis, efficiently utilizing a single slot while offering individual configurable parameters and output forcing on its 32 channels. Notable features include LED indicators for real-time channel status monitoring, a sourcing configuration, and a Removable Terminal Block (RTB) for streamlined wiring and maintenance, with models 1756-TBCH and 1756-TBS6H ensuring seamless connectivity. Operating within a voltage range of 10 to 31.2V DC, it offers a robust current handling capacity, suitable for driving a variety of devices such as relays, solenoids, and contactors, with specifications including a maximum current of 16A at 50°C per module, a continuous isolation voltage of 250V, and an operating temperature range of 0 to 60°C.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-OB32 |
| Series | ControlLogix |
| Outputs | 32-Point |
| Module Type | DC Output Module |
| Voltage | 12-24 Volts DC Source |
| Operating Voltage Range | 10-31.2 Volts DC |
| Output Delay Time, OFF to ON | 60 µs nom/1 ms max |
| Output Delay Time, ON to OFF | 200 µs nom/1 ms max |
| Current per point | 0.5 A @ 50 °C (122 °F) linear derating 0.35 A @ 60 °C (140 °F) |
| Current per module | 16 A @ 50 °C (122 °F) linear derating10 A @ 60 °C (140 °F) |
| Maximum Output Current Rating-Point | 0.5 Amps at 50 Celsius, 0.35 Amps at 60 Celsius |
| Maximum Output Current Rating-Module | 16 Amps at 50 Celsius, 10 Amps at 60 Celsius |
| UPC | 10662468702994 |
| Power Dissipation (Max) | 4.8 Watts at 60 degrees Celsius |
| Backplane Current at 5 Volts | 300 milliamps |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Isolation Voltage | 50 Volts Continuous |
| Enclosure | None |
