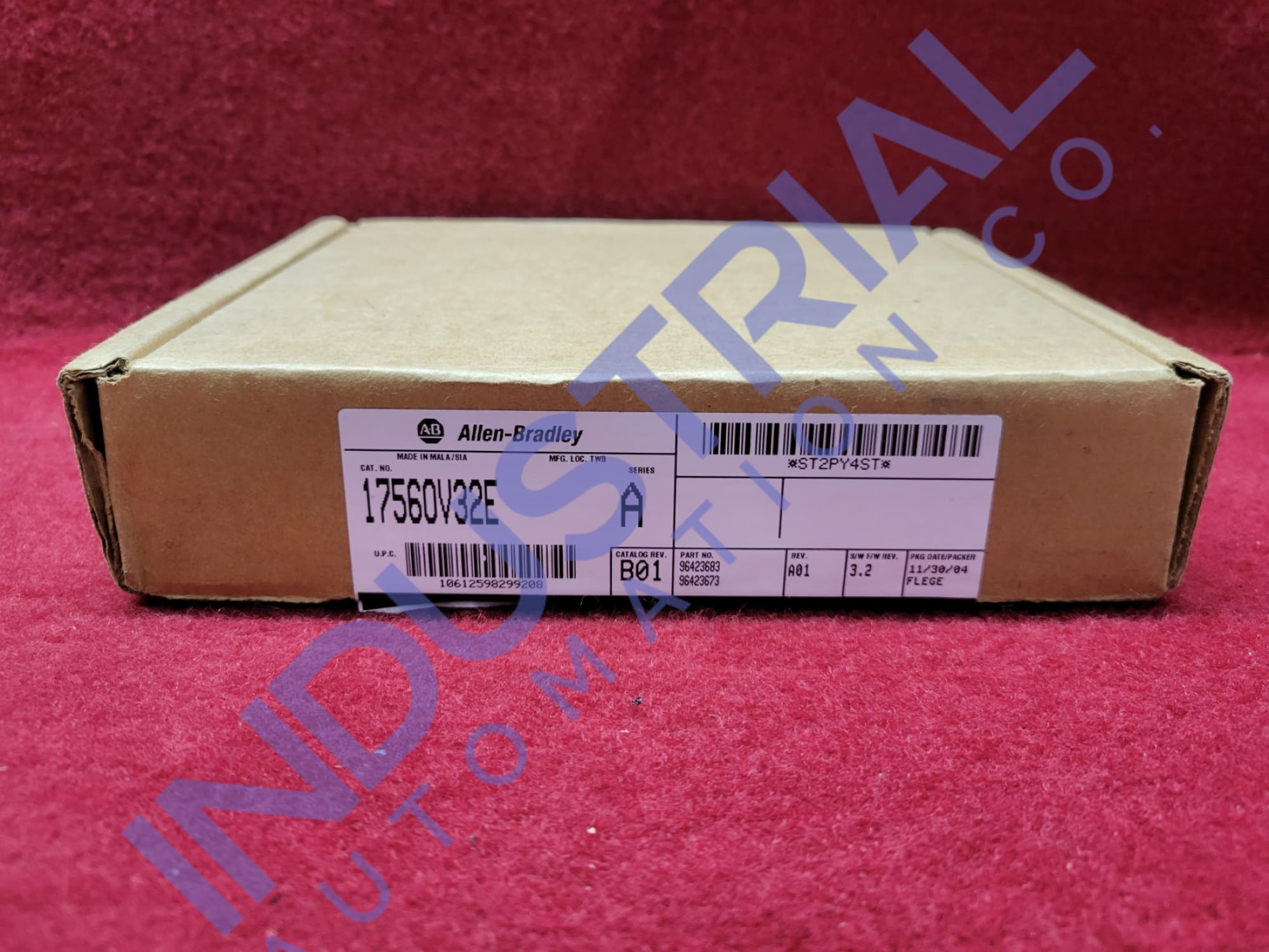

Allen-Bradley 1756-OV32E
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description
The Allen-Bradley 1756-OV32E ControlLogix DC Electronically-Fused Sinking Output Module is designed for demanding industrial environments, offering 32 electronically-fused sinking outputs within a chassis-located configuration. It operates efficiently within a voltage range of 10-30V DC, featuring fast signal transition times with a maximum delay of 300Vs from OFF to ON and 1ms from ON to OFF. The module can handle a maximum point current of 0.5A at 50 °C, reaching a total of 16A for the entire module, while maintaining synchronization with system time via a 16.7s scheduling reference. This module is equipped with a robust thermal dissipation capacity of 20.1 BTU/hr and is safely encapsulated with 250V basic insulation, suitable for operating temperatures between 0 and 60 °C, and stable in humid conditions ranging from 5 to 95% without condensation.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-OV32E |
| Series | ControlLogix |
| Module Type | Electronically Fused Sinking Output Module |
| Outputs | 32-Point Electronically Fused |
| Voltage | 12-24 Volts DC |
| Operating Voltage Range | 10-30 Volts DC |
| Maximum Output Current Rating-Point | 0.5 Amps at 50 Celsius, 0.35 Amps at 60 Celsius |
| Maximum Output Current Rating-Module | 16 Amps at 50 Celsius, 10 Amps at 60 Celsius |
| Power Dissipation (Max) | 5.88 Watts at 60 Celsius |
| Backplane Current at 5 Volts | 390 milliamps |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Isolation Voltage | 50 Volts Continuous |
| Enclosure | None |
