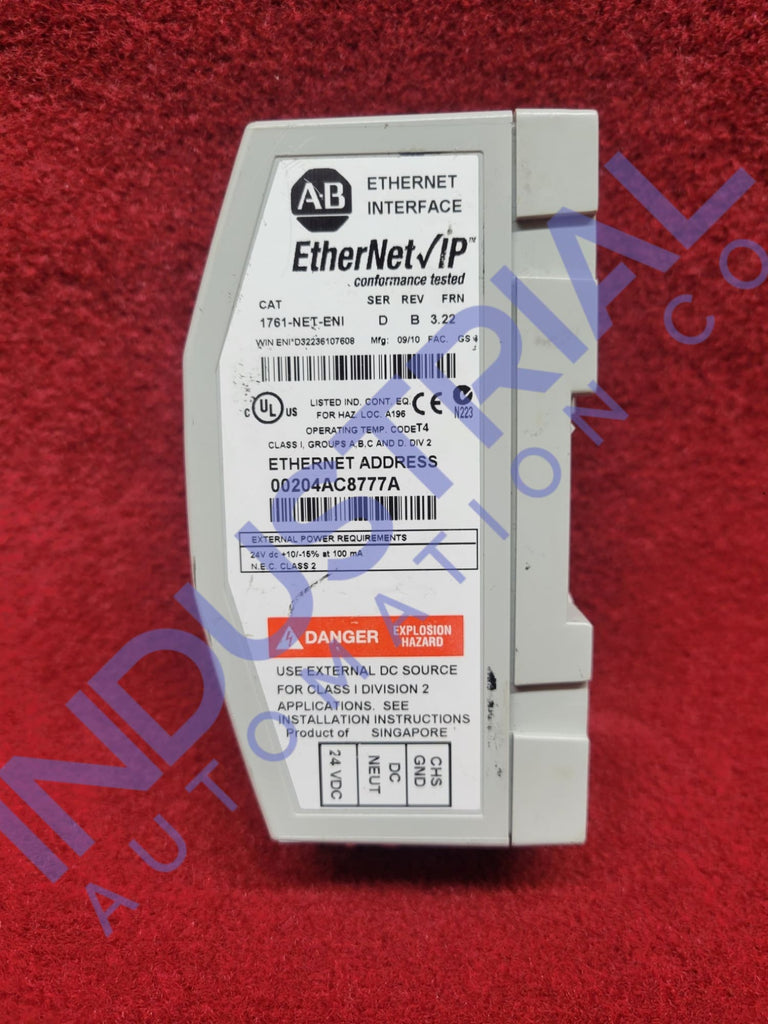

Allen-Bradley 1761-NET-ENI
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description
Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice‚ here.
- 1761NETENI
- DISCONTINUED BY MANUFACTURER
- ETHERNET INTERFACE MODULE
- 24 VDC
- 100 MA
- MICROLOGIX
- COMPACTLOGIX
- NEC CLASS 2
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
The Allen-Bradley 1761-NET-ENI Explained
The Allen-Bradley 1761-NET-ENI is an efficient Ethernet/IP interface module that delivers outstanding output for less power consumption. It provides connectivity for MicroLogix, CompactLogix, SLC 500, and other DF1 full-duplex devices. Compatible with the 1761-L32BWA and 1761-L32AWA, this advanced interface connector lets point-to-point devices connect to multi-node communication networks.
Key Features and Benefits
The AB 1761-NET-ENI allows downloading and uploading of programs, generates emails and communicates between controllers while connected to non-Ethernet controllers. Other features include:
- A 100 Base-T port
- Visual indicator LEDs
- An RS-232 port
- Diagnostic page
- Simple mail transport protocol (SMTP) service
Technical Specifications
With our Allen-Bradley 1761-NET-ENI replacement products, you can connect old controllers to modern Ethernet networks without having to invest in the costly engineering development or shutdowns required when replacing connected devices. Technical specifications include:
- Maximum operating temperature: 0 to 70° Celsius
- Maximum storage temperature: -45 to 85° Celsius
- Ethernet transmission speed: Series A and B — 10 Mbps; Series C and D — 10/100 Mbps
- Certifications: IEC 801-2, 3, 4, 5 and 6
- Safety feature: Master control relay

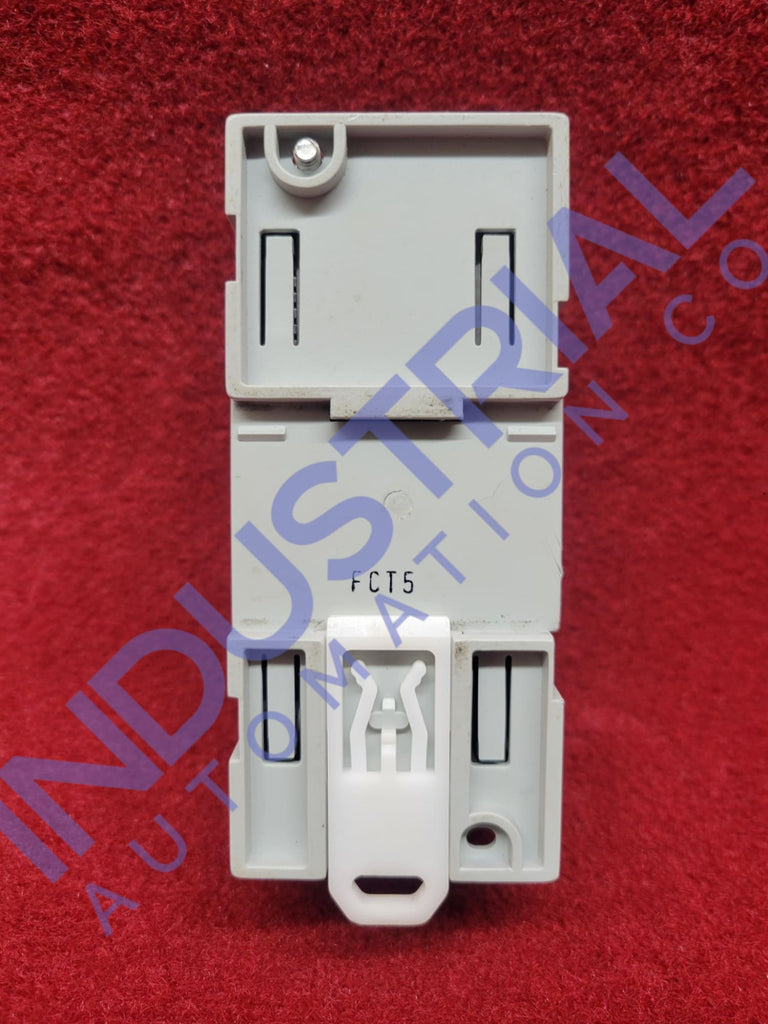

- Mounting: DIN rail or panel
- Internal isolation: 710V DC for one minute
Applications
The AB 1761-NET-ENI is designed to work with any DF1 full-duplex devices, including MicroLogix, CompactLogix and SLC 500. Because of its adaptability, the device is well-suited for a wide range of applications, including:
- Manufacturing automation
- Process control systems
- Material handling
- Food and beverage
Installation and Configuration

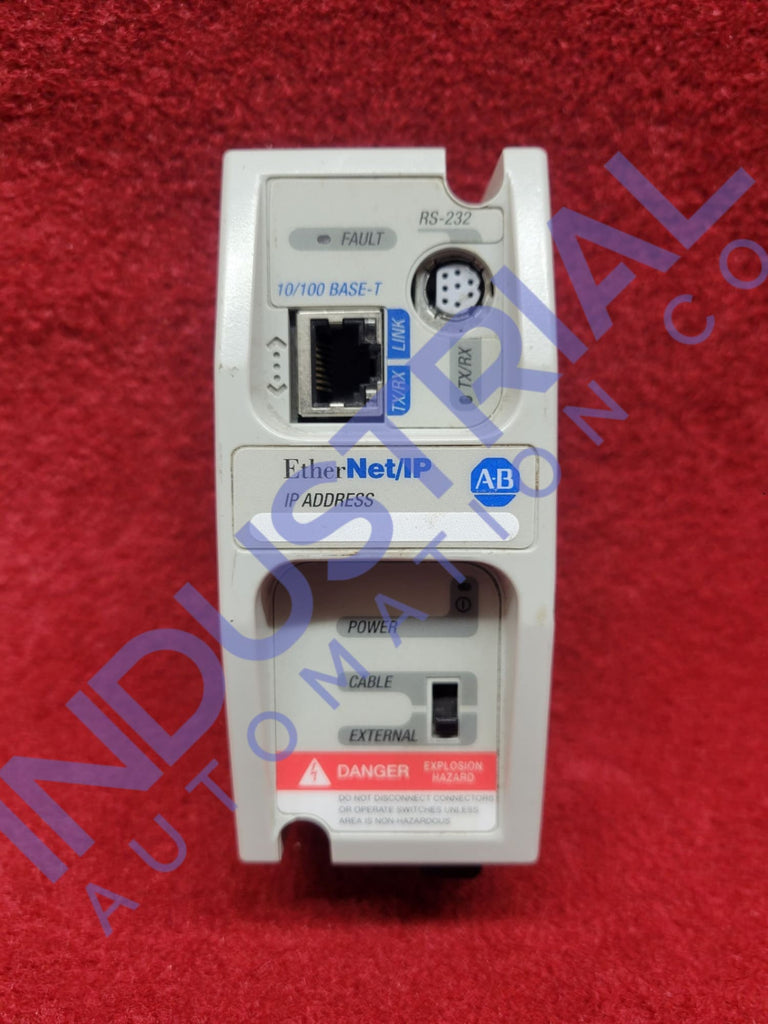

The Allen-Bradley 1761-NET-ENI is simple to install and configure. Connect the DF1-capable device through the RS232 port and use the RJ45 port for the Ethernet connection. You can configure these devices with a configuration security mask provision.
Order the AB 1761-NET-ENI Today From Industrial Automation Co.
Industrial Automation Co. is a trusted source for AB 1761-NET-ENI replacement products. We offer fast turnarounds and unparalleled customer service. The AB 1761-NET-ENI is an excellent choice for extending the life of your controllers. Request a quote today and take advantage of everything Industrial Automation offers.
TECHNICAL SPECIFICATIONS
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Type | Ethernet Interface |
| Part Number/Catalog No. | 1761-NET-ENI |
| Number or ports: | 2; 1 (RS232); 1 Ethernet I/P |
| Ports | RS-232 |
| Protocol | DF1 Full-Duplex; Ethernet |
| Safety Feature | Master Control Relay |
| Ethernet Transmission speed: | Series A and B: 10 mbps Series C and D: 10/100 mbps |
| Mounting: | DIN Rail or Panel |
| Power Supply: | 20.4 to 26.4V dc |
| 24 Volts DC Current Draw | 50 mA typical, 100 mA maximum |
| Item weight | 1 pound |
| Certifications | IEC801-2, 3, 4, 5, and 6 |
| Dimensions | 23 x 16 x 18 inches |
| Cable | Cat5, Cat5e, Cat6, Cat6e cable |
| Storage Temperature | -45 to 85 degrees Celsius |
| UPC | 10611320499787 |
| UPC | 10611320931805 |
| Operating Temperature | 0° C…+60° C (+32° F…+140° F) |
| Internal Isolation: | 710V dc for one minute |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1761-NET-ENI has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1761-NET-ENI units instead of migration.
