Allen-Bradley 1764-28BXB
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description

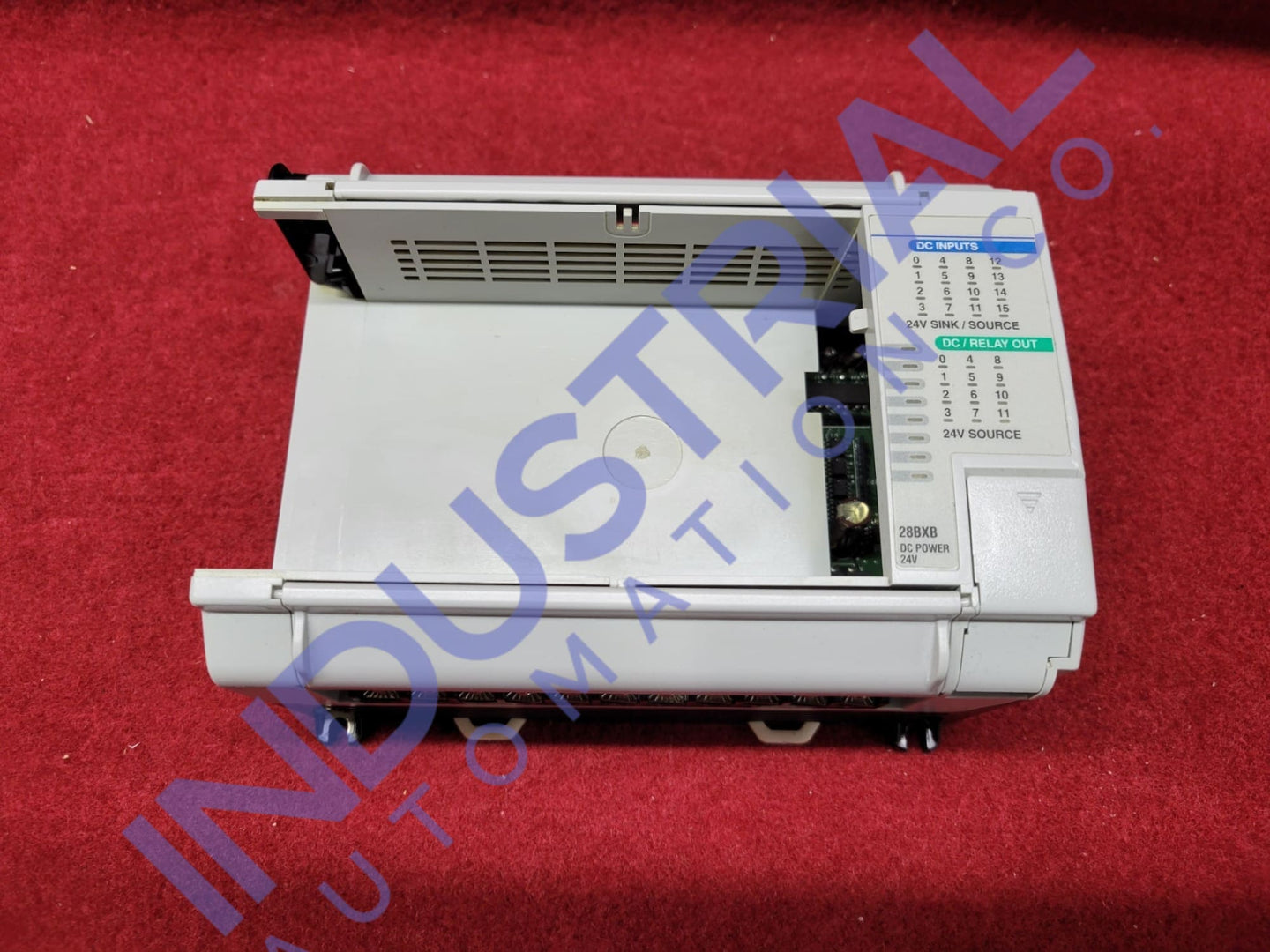

Allen-Bradley 1764-28BXB
The Allen-Bradley 1764-28BXB is a versatile and robust base unit designed for use in industrial automation systems. This unit, part of the MicroLogix 1500 series, offers a range of features and capabilities that make it suitable for various applications requiring reliable and efficient control solutions.
Technical Description:
The Allen-Bradley 1764-28BXB base unit operates with a relay output channel voltage ranging from 24 -125 VDC and 120 – 240 VAC, ensuring compatibility with various power supply configurations. The unit features a 24 Volt DC sink/source input circuit type.
The output circuit type comprises six relay and six FET transistor outputs, providing multiple options for controlling external devices. This base unit supports a transistor output channel voltage of 20.4 VDC to 26.4 VDC, offering stable and consistent output for connected equipment.
The line power requirement is specified as 20.4-30.0 Volts DC, ensuring reliable operation in diverse environments. The high-speed output frequency capability of 20 kHz makes it suitable for applications demanding rapid response times.
With a power supply voltage range of 20.4 to 30 VDC and a power supply usage of 30 Watts, the 1764-28BXB is both efficient and powerful. It can handle a power supply inrush current of 24 VDC at 4 A for 150 ms, accommodating sudden spikes in power demand.
The unit's dimensions are 5.43 x 6.62 x 3.43 inches, making it compact enough for installations where space is limited. The maximum load current of 400 mA ensures the unit can manage moderate loads without issues.
Input and Output Capabilities:
The 1764-28BXB base unit features an I/O count of 16 inputs and 12 outputs, with a maximum expanded I/O count of 512, making it highly scalable. The input channel voltage is 24V DC, supporting both sink and source configurations.
The input voltage is also 24 Volts DC, ensuring compatibility with standard industrial control signals. High-speed input frequency capabilities include eight 20 kHz inputs, making the unit suitable for applications requiring fast response times.
The output source includes a relay port and DC FET, providing flexibility in controlling different types of loads. The number of outputs is six relay outputs, four standard 24 VDC transistor outputs, and two fast 24 VDC outputs.
Communication and Expansion:
The base unit supports the installation of additional modules such as Real-Time Clock and Memory modules, enhancing its functionality. It is also compatible with Compact I/O modules for further expansion of its integrated features.
The integrated serial communication port has a default configuration of 19.2K Baud Rate, no parity, node address set to 1, and no handshaking. It includes CRC error detection, auto-detect embedded responses, and duplicate packet (message) detection enabled.
The communication port settings, such as ACK timeout of 50 counts and NAK retries set to 3, ensure reliable data transmission. The ENQ set to 3 retries and stop bits set to 1 further enhances communication reliability.
Frequently Asked Questions:
What are the input and output capabilities of the Allen-Bradley 1764-28BXB?
The 1764-28BXB has 16 inputs and 12 outputs. It supports an input channel voltage of 24V DC. The maximum expanded I/O count is 512.
What is the power supply requirement for the 1764-28BXB?
The unit requires a power supply voltage of 20.4 to 30VDC. It uses 30 Watts of power. The power supply inrush current is 24V DC at 4A for 150 ms.
What connectivity options does the 1764-28BXB base unit offer?
It features an integrated serial communication port with a 19.2K Baud Rate. The port supports no parity and the node address is set to 1. It includes CRC error detection and auto-detect embedded responses.
Product Specifications Table
| Attribute | Specifications |
|---|---|
| Series | MicroLogix 1500 |
| Product Type | Base Unit |
| No. of Outputs | 12 |
| Input Voltage | 24V DC |
| Power Supply Voltage | 20.4 to 30VDC |
| Maximum Load Current | 400 mA |
| Dimensions | 5.43 x 6.62 x 3.43 inches |
| Product Status | Discontinued/Obsolete |
| Input Circuit Type | 24 Volt DC Sink/Source |
| High Speed Output Frequency | 20 kHz |
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
| Manufacturer | Industrial Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1764-28BXB |
| Series | MicroLogix 1500 |
| Function | Base Controller |
| I/O Count | 16 inputs/12 outputs |
| Module Type | Base Unit |
| Max Expanded I/O Count | 512 |
| No. of Inputs | 16 inputs |
| Input Voltage | 24 Volts DC |
| Input channel Voltage | 24V dc, sink/source |
| Output Source | Relay Port and DC FET |
| High Speed Input Frequency | Eight (8) 20 kHz input |
| No. of Outputs | Six (6) Relay; Four (4) Standard 24VDC Transistor; Two (2) Fast 24VDC |
| Input Circuit Type | 24 Volt DC Sink/Source |
| Relay Output channel Voltage | 24-125VDC; 120-240VAC |
| Output Circuit Type | 6 Relay, 6 FET Transistor |
| Transistor Output channel Voltage | 20.4VDC - 26.4VDC |
| Line Power | 20.4-30.0 Volts DC |
| High Speed Output Frequency | 20 kHz output |
| Power Supply Usage | 30 Watts |
| Power Supply Voltage | 20.4 to 30VDC |
| Power Supply Inrush Current | 24V dc = 4A for 150 ms |
| Maximum Load Current | 400 mA |
| Dimensions | 5.43 x 6.62 x 3.43 inches |
| Mounting | Horizontal |
| Compatible Processors | 1764-LSP and 1764-LRP |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1764-28BXB has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1764-28BXB units instead of migration.
