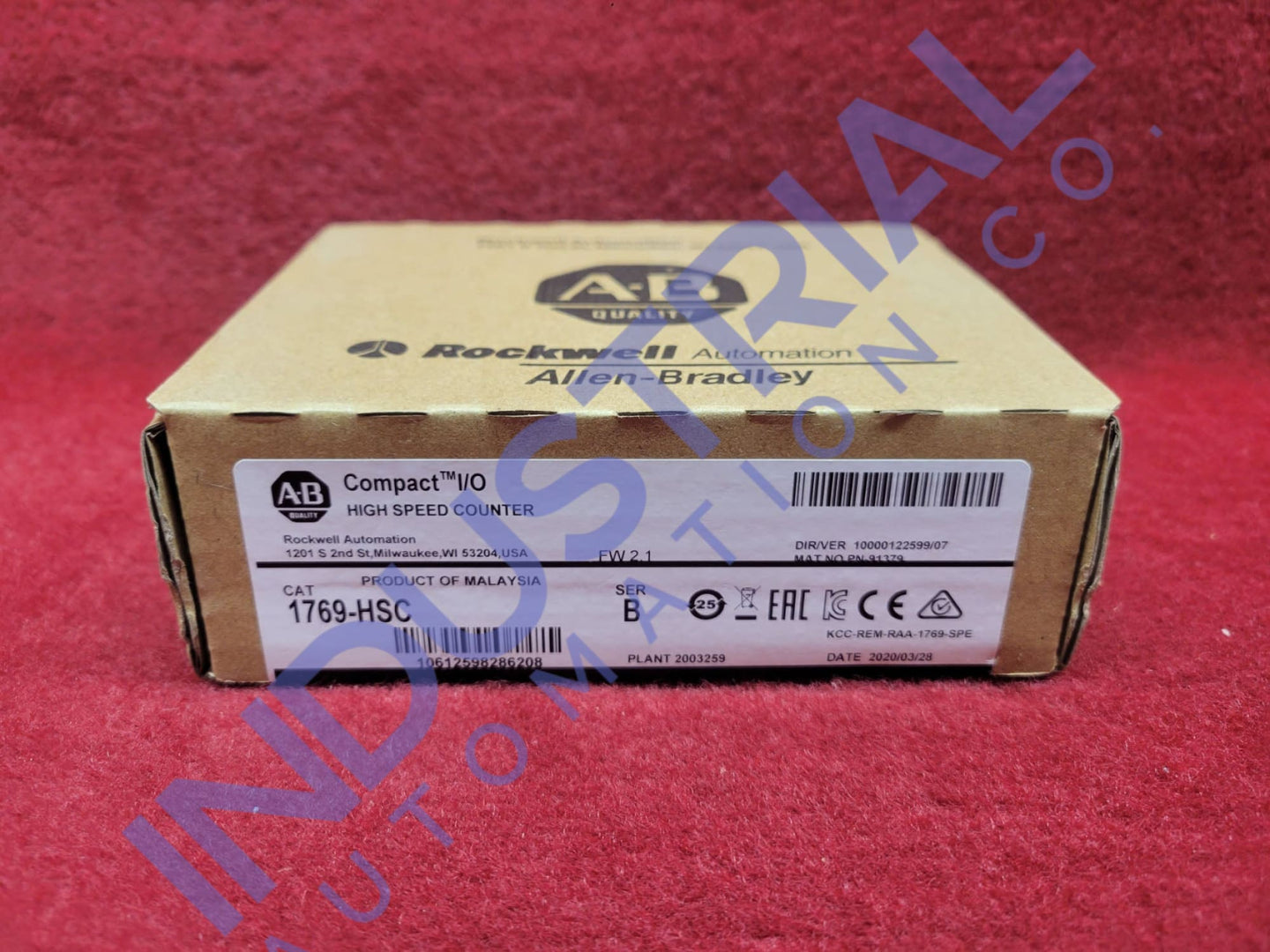

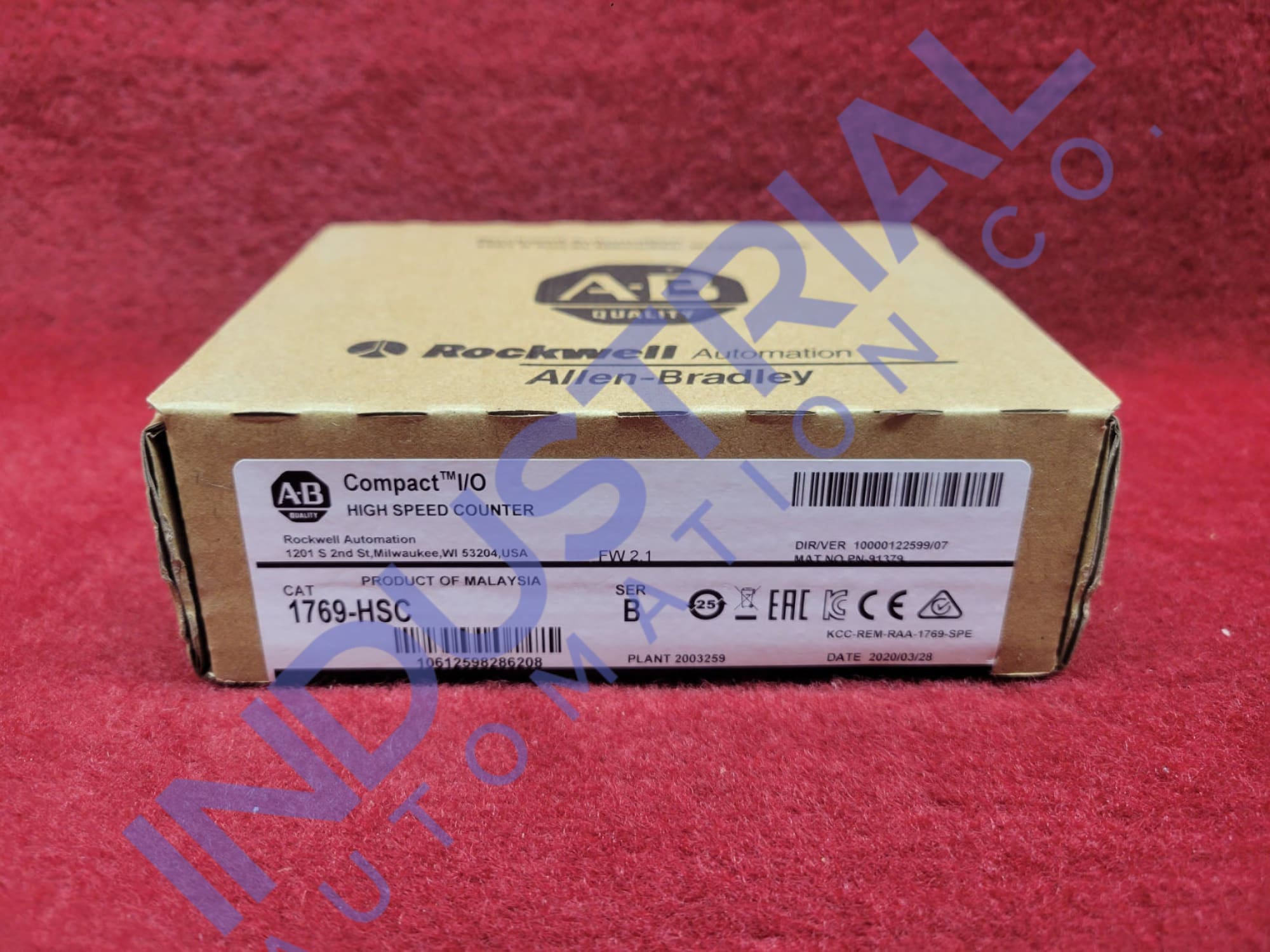

Allen-Bradley 1769-HSC

Allen-Bradley 1769-Hsc

Allen-Bradley 1769-HSC

Regular price
Sale price
$1,395.00

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice‚ here.

  • 1769HSC
  • INPUT MODULE
  • COMPACTLOGIX
  • HIGH SPEED COUNTER
  • 2 QUADRATURE (ABZ) DIFFERENTIAL INPUTS AT 1 MHZ
  • 2-30 VDC
  • 16 TOTAL OUTPUTS (4 PHYSICAL AND 12 VIRTUAL)
  • 1 A PER POINT @5-30 VDC

Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
Surplus Original Box 1769-HSC-FS 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


TECHNICAL SPECIFICATIONS

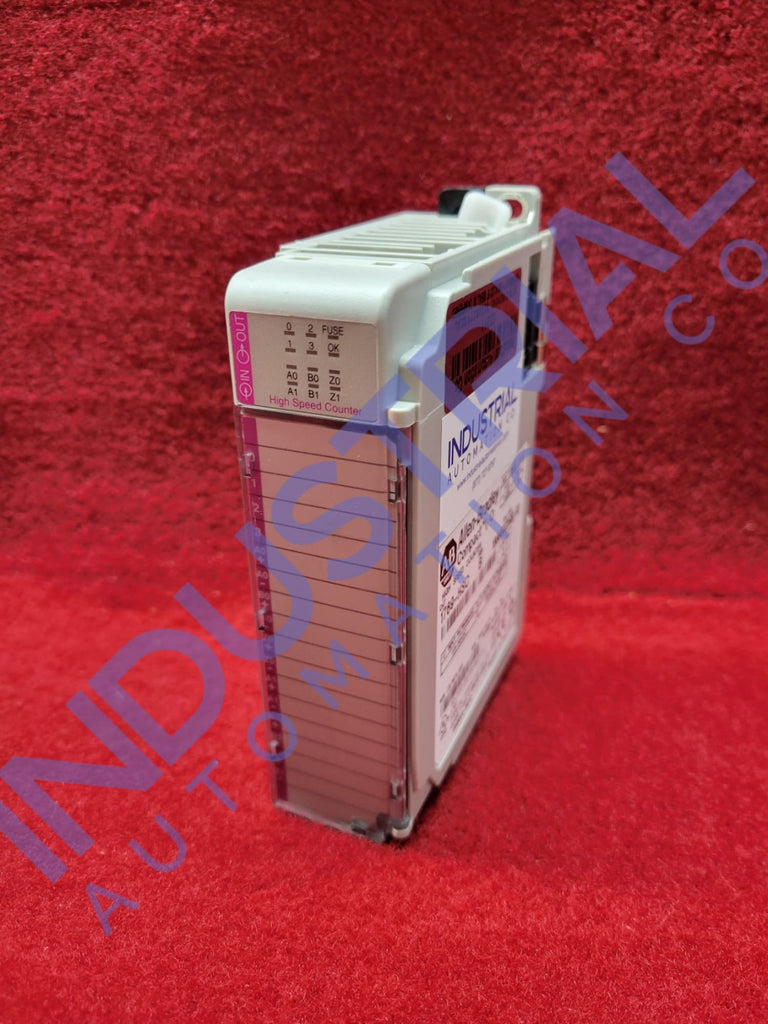

The Compact Allen-Bradley 1769-HSC I/O module links signaling devices using high-frequency switches. It is also used frequently for location control and monitoring, counter applications, and totalizer requirements.

This module, part of the 1769 I/O modules series, may be utilized with a programmable logic controller (PLC) for MicroLogix and a programmable automation controller (PAC) for CompactLogix. It can be a direct interface for encoders, transmitter pulse output, and fast sensing equipment.

The input voltage span for the 1769-HSC's two differential quadrature (ABZ) inputs is 2.6...30V dc. It takes pulses with a minimum of 250 ns in width and 131 ns in separation. This module's output channels consist of 4 physical and 12 virtual outputs, having a 5...30V dc output voltage range. For every channel, the maximum on-state current is 1 A per node and 4 A for each module.

The module's input channels operate at a frequency of 1MHz for counting and encoding operations. The integrated channels accept an input voltage ranging from 2.6V dc to 30V dc and include four internal sourcing outputs for high-speed control requirements such as positioning, speed, and movement.

According to the power supply distance rating specification, the 1769-HSC cannot be mounted further than four modules from the power source. It is not advised to install and remove the module in these circumstances since it does not permit uninstallation while using power. This module may be configured using the RSLogix 500 or the RSLogix / Studio 5000 programming software.

The 1769-HSC has a counter/encoder operating input frequency of 1 MHz and four onboard source outputs with a voltage range of 5 V dc to 30 V dc. This module is essential for high-speed control tasks like flow regulation, frequencies, duration monitoring, and other parameters. At 24V dc and 5V dc, the 1769-HSC module may drain a maximum of 0 mA and 425 mA of bus current. It is tested at 1200V ac for 2 s and has a heat dissipation peak of 6.21 W and reinforced insulation isolation voltage of 75 V.

The 1769-HSC has a 90 °C (194 °F) wire type and can accept solid copper wire up to 22...14 AWG or stranded copper wire up to 22...16 AWG. A twisted pair or individually insulated cable should be used. The module's signal ports fall under wiring category 2 and have an open-style enclosure type. The 1769-HSC module has a voltage input range of 2.6V dc to 30 V dc and two asynchronous differential inputs. It has an off-state voltage of 1.0V dc at its highest and a minimum on-state current of 6.8 mA. The maximum leakage current and off-state current are both 1.5 mA.

The module's input current ranges from 6.8 mA to 15 mA at its lowest point. The module has an input impedance of 1950 Ω and a minimum pulse width of 250 ns. Additionally, it has a 131 ns minimum pulse spacing. Its output voltage range is 5–30V dc. It has a 30V dc reverse polarity protection. Maximum turn-on and turn-off periods for the 1769-HSC are 400 s and 200 s, respectively. It operates between 0 and 60 °C (32 and 140 °F) and between -40 and 85 °C (-40 and 185 °F) when not in use.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1769-HSC
Product LineCompactLogix
Module TypeHigh Speed Counter Module
SoftwareRSLogix5000
Shipping Weight2 pounds
Shipping Dimensions8 x 8 x 5 inches
SeriesA and B
Enclosure TypeOpen
Operating Temperature0 to 60 degrees Celsius (32 to 14 degrees Fahrenheit)
Maximum Bus Current Draw5 mA at 5 Volts DC
Backplane Current1.4 Amps at 24 Volts
Power Consumption33.6 Watts
Power Dissipation7.5 Watts
UPC10612598286208
