Allen-Bradley 1769-OA16

Allen-Bradley 1769-Oa16
Allen-Bradley 1769-Oa16

Allen-Bradley 1769-OA16

Regular price
Sale price
$401.00

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice‚ here.


  • 1769OA16
  • I/O MODULE
  • COMPACTLOGIX
  • 16 POINT
  • SOLID STATE
  • AC SOURCE
  • OUTPUT
  • 100/240 VOLT AC

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.

Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
Surplus Original Box 1769-OA16-FS 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

Quick Search

TECHNICAL SPECIFICATIONS

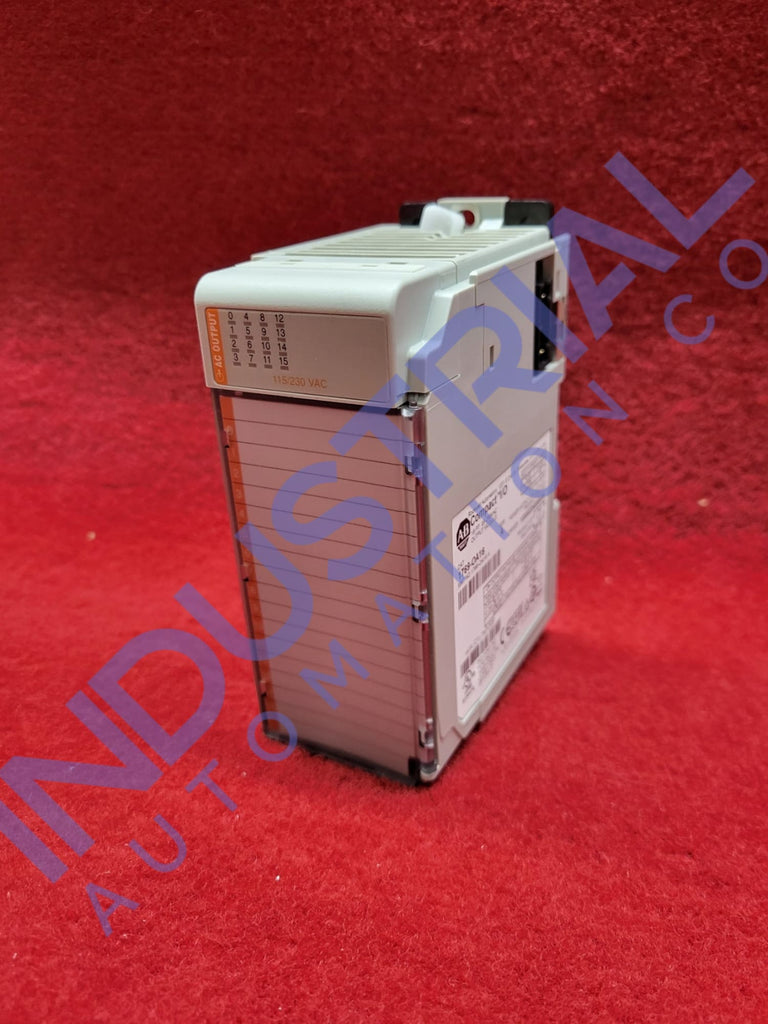

The Allen-Bradley 1769-OA16 is an output module from the I/O Compact 1769 series. This module provides an 85-264VAC voltage range with 47-63 HZ frequency. This module has a 1.5 slot width and is compatible with the CompactLogix and MicroLogix 1500 controllers.

This 1769-OA16 module can provide direct power to devices running with AC voltages. These devices include contactors, relays, and solenoid-activated devices; indicating devices such as pilot lamps; Sounding devices, including audible warnings, sirens, and horns. This module can also supply indirect power to DC devices through an interposition circuit. Fusing each output channel is a safe way to protect the module during installation.

With two (2) sets of output channels, the 1769-OA16 can run each channel in a different voltage class, either 120V AC or 240V AC. The module has a current bus draw of 225 mA at 5.1 VDC with output delays of ½ cycle for both signal transitions on each output channel. The modules' output current per point is 0.25 A at 60 °C or 0.5 A at 30 °C, with a total output current of 2 A at 60 °C and 4 A at 30 °C.

The 1769-OA16 module has a nominal power distance of Eight (8) modules and is suitable for 1769-PA2, 1769-PB2, 1769-PA4, and 1769-PB4. This module follows the standard installation supported by the host controller, which is the direct panel installation or the DIN rail installation. The recommended wire size for terminating signal lines to this module is 22...16 AWG stranded or 22...14 AWG solid copper wire.

To connect signals to the 1769-OA16, use a strong 22-14 AWG cable or 22-16 AWG cable. The 1769-OA16 module assembly measures 4.65 x 1.38 x 3.43 inches and weighs approximately 0.61 pounds. It also features an open-type housing and can mount on a DIN rail or mounting panel. This module is set up and tracked using the RSLogix5000 software.

The nominal voltage for 1769-OA16 is 100-240 V AC with a power dissipation of 4.9 W. It has an output voltage of 85 to 265 volts AC at a frequency of 47 to 63 hertz. The off-state leakage current is limited to 2 mA at 132 V AC and 2.5 mA at 265 V AC, with an on-state current limit of 10 mA.

The 1769-OA16 module features a maximum voltage drop of 1.5 Volts to 2 Amps. The maximum intensity for each point and module varies according to the temperature. At 60 degrees Celsius, the current per point is 0.25 amps and 0.5 amps at 30 degrees Celsius, while this current per module is 2 amps at 60 degrees Celsius and 4 amps at 30 degrees Celsius.

The 1769-OA16 has a surge current of 5 amps for 25 milliseconds, repeated every 2 seconds. This module's response time is half a cycle in both the ON and OFF modes. It has an unpolished relative humidity of 5 to 95% and a maximum heat dissipation of 4.9 W. The insulation voltage is 265 volts AC for the essential insulation and 150 volts AC for the class 2 IEC reinforcement insulation.

The operation vibration for the 1769-OA16 module is 5G between 10 and 500 Hertz, and its relay operation vibration is 2G. When installed on a panel, the module has a 30 G operating shock, a 7 G relay operating shock, and a 40 G non-functioning shock. The working shock is 20 G when installed on a DIN rail while the relay operational shock is 5 G, and the non-operating shock is 30 G.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1769-OA16
Product LineCompactLogix
Module TypeOutput Module
SoftwareRSLogix5000
Communication Cable 16-Point
Shipping Weight2 pounds
Shipping Dimensions8 x 8 x 5 inches
Wire TypeCopper 90 degrees Celsius
EnclosureOpen
Power Supply Distance Rating8 Modules
Voltage Category100 to 240 Volts AC
Wire Size (Solid)22-14 AWG
Wire Size (Stranded)22-16 AWG
UPC10612598286222
UNSPSC32151705
