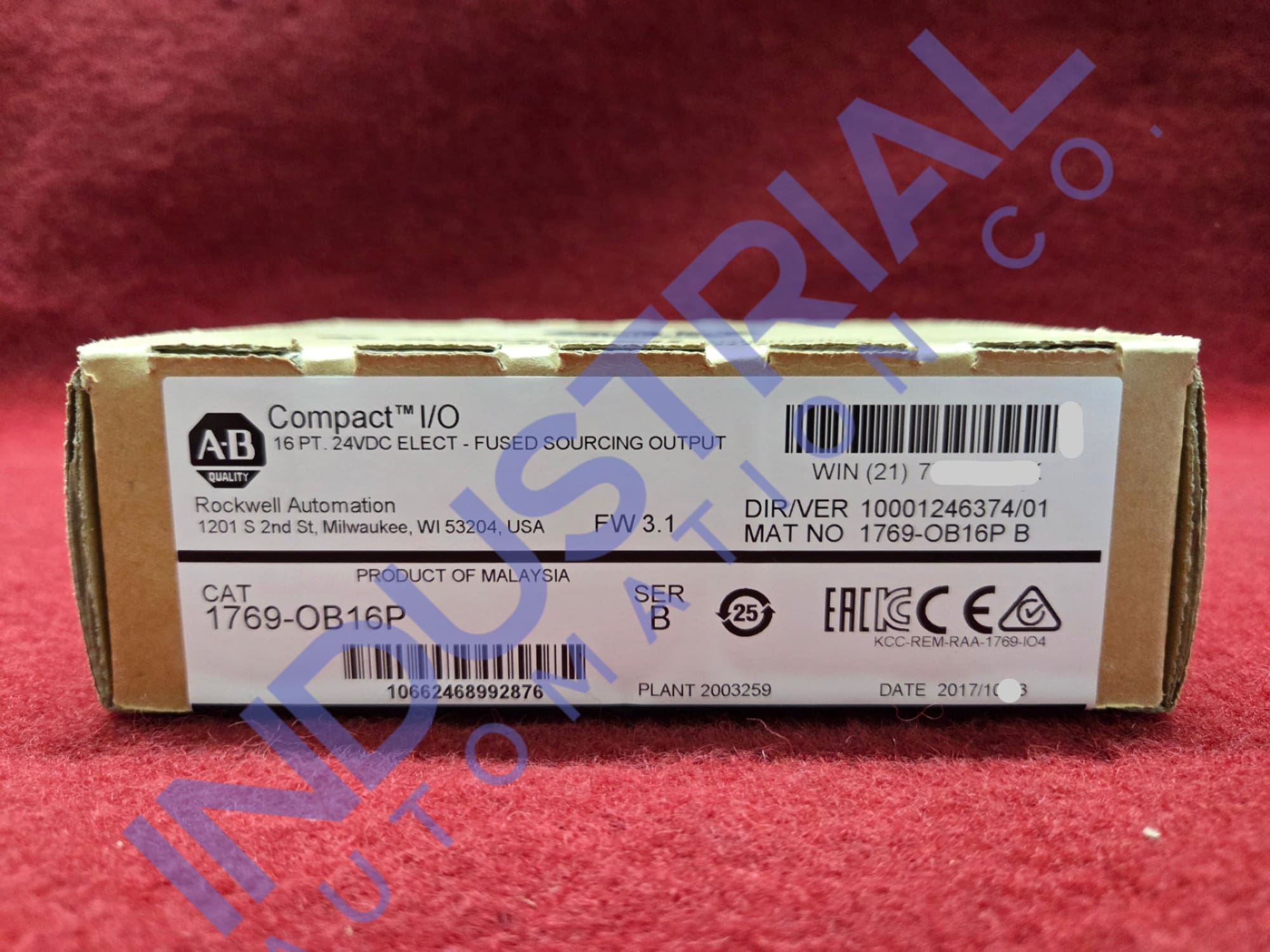

Allen-Bradley 1769-OB16P

allen-bradley-1769-ob16p

Allen-Bradley 1769-OB16P

Regular price
Sale price
$0.00

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Request a Price Quote
Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.

Description

The 1769-OB16P solid-state output module is a versatile component of the 1769 Compact I/O family, compatible with Allen-Bradleys CompactLogix and MicroLogix controllers, functioning as both a local and expansion I/O module. It features an output voltage range of 20.4-26.4VDC in a sourcing configuration, with each channel capable of handling up to 1.0 A at 30°C or 0.5 A at 60°C, and provides a maximum module output of 8.0 A at 30°C or 4.0 A at 60°C. Notably, the module offers a rapid signal transition delay of 1.0 ms for ON states and 2.0 ms for OFF states, requires a 160 mA current draw, and supports a power supply distance rating of up to eight modules.


Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
Surplus Original Box 1769-OB16P-FS 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

Quick Search

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


TECHNICAL SPECIFICATIONS

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1769-OB16P
Product LineCompactLogix
Module TypeDC Output Module
Input TypeDigital Output
SoftwareRSLogix5000
Communication Cable 16-Point
Shipping Weight2 pounds
Shipping Dimensions8 x 8 x 5 inches
SeriesA and B
Power24 Volts DC
SeriesA and B
Power Supply Distance Rating8 Modules
Voltage Category100 to 240 Volts AC
Wire Size (Solid)22 to 14 AWG
UPC10662468992876
UNSPSC32151705
