Allen-Bradley 1771-OF04
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description

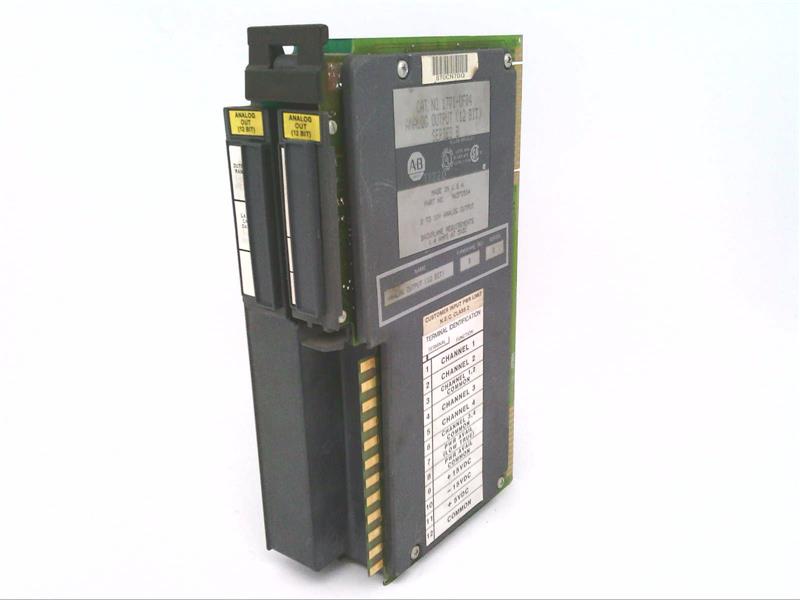

The Allen-Bradley 1771-OF04 is an analog output module from the 1771 series designed for industrial applications, featuring four individually isolated outputs for enhanced operational safety. It offers a nominal output voltage range of 1 to 5 Volts DC with a current capacity of 10 milliamps per channel, and a digital resolution of 12-bit binary. Equipped with overload protection to prevent damage from short circuits, this module operates within a wide temperature range of 0 to 60 degrees Celsius and can withstand shocks up to 30 G. With an isolation voltage rating of 850 Volts DC tested for 1 second and an internal scan rate of 8 milliseconds with scaling, the 1771-OF04 ensures reliable performance in controlled environments.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 1771-OF04
| Brand | Allen-Bradley / Rockwell Automation |
|---|---|
| Series | PLC 5 |
| Part Number | 1771-OF04 Â |
| Type | Analog Output Module |
| Outputs | 4 |
| Output current rating | 10 mA per channel |
| Isolation voltage | 850 Volts DC for 1 second (Tested) |
| Voltage | 1-5 Volts DC |
| Enclosure | None (open) |
| Digital resolution | 12 bits binary |
| Conductors | 12 gauge stranded copper wire and 1,2 insulation |
| Status indicators | Yes |
| Output impedance | 1.5 Megaohms for current output |
