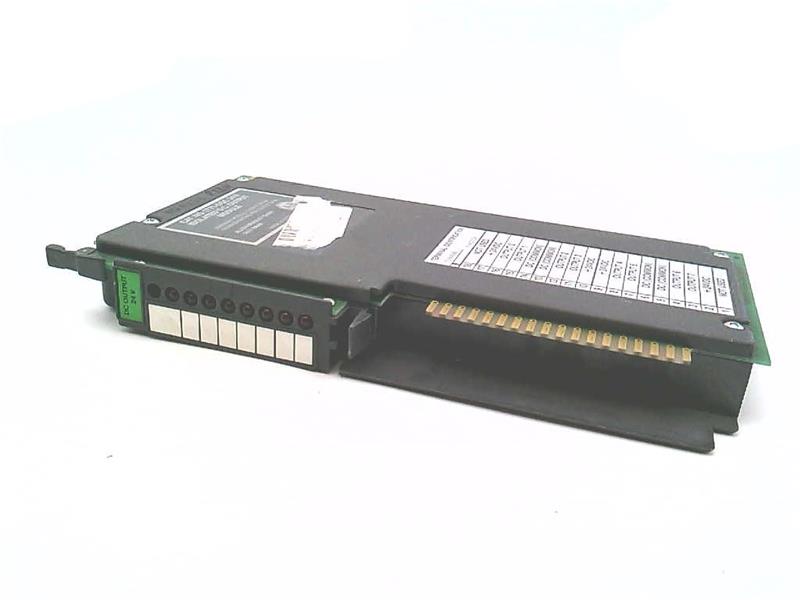

Allen-Bradley 1771-OQC

Allen-Bradley 1771-OQC
Allen-Bradley 1771-OQC

Allen-Bradley 1771-OQC

$0.00

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Request a Price Quote
Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available

We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

The Allen-Bradley 1771-OQC is a robust digital output module within the 1771 series, expertly crafted to manage the power state of DC-powered devices. Featuring 8 outputs organized into 4 groups, this module supports a voltage rating of 24 Volts DC with a tolerance from +10% to -15%, and handles modulated voltage peaks between 17 and 34 Volts DC. It is capable of a maximum output current of 2.25 Amps per output/group and 9 Amps per module, with surge current up to 4 Amps for 10 milliseconds. With a power dissipation of up to 19.1 Watts and thermal dissipation of 65.1 BTU per hour, the module operates efficiently under environmental conditions of 0 to 60 degrees Celsius and 5 to 95% relative humidity without condensation. Designed for indoor use, the module requires additional surge suppression devices when connected to inductive loads due to the absence of an external enclosure, although internal clamping diodes provide protection from high voltage transients.


Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
Surplus Original Box 1771-OQC 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

Quick Search

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


TECHNICAL SPECIFICATIONS

Technical specifications for 1771-OQC

Brand Allen-Bradley / Rockwell Automation
Series PLC 5
Part Number 1771-OQC
Type Digital output modules
Category 24 Volts DC sink
Outputs 8 outputs
Isolated Voltage 20.4 to 26.5V DC
Backplane current load 225 mA
Output current 2,25 A per output/group - 9 A per module.
Surge Current 4 A per 10 ms per output
Thermal dissipation 65,1 BTU/hr
Mounting Chassis
Surge suppression Yes
Compatibility Motors starters, solenoids, indicators
