Allen-Bradley 1783-US7T1F

Allen-Bradley 1783-US7T1F
Allen-Bradley 1783-US7T1F

Allen-Bradley 1783-US7T1F

$0.00

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Request a Price Quote
Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available

We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

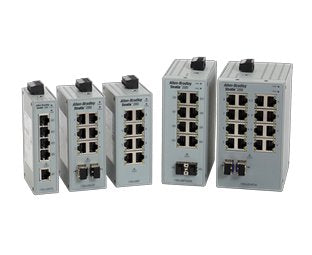

The Allen-Bradley 1783-US7T1F is a reliable member of the Stratix 2000 unmanaged Ethernet switch series, designed with seven 100 Mbps Fast Ethernet ports and a multimode fiber SFP module for versatile network integration. Available in Series A and B, these switches differ in electrical specifics, with Series A operating at a maximum inrush current of 1.06 A and a power dissipation of 5.927 W, while Series B runs with 0.41 A and 4.6 W respectively. With rugged DIN rail or direct panel mounting capabilities, this compact switch operates from -40 to 167°F and supports input power ranges from 18-60V DC or 18-30V AC, making it an ideal choice for varied industrial environments.


Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
Surplus Original Box 1783-US7T1F 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

Quick Search

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


TECHNICAL SPECIFICATIONS

Technical specifications for 1783-US7T1F

Manufacturer Rockwell Automation
Enclosure Type Rating None (open-style)
Brand Allen-Bradley
Series Stratix2000 Unmanaged Ethernet switch
No. of Ports Eight (8)
No. of Copper ports Seven (7)
No. of SFP ports One (1)
Pre-installed SFP module Yes
SFP module mode multi-mode
Available Series Series A / B
Power Supply 24V (12…48V DC, 18...30V AC, 50/60 Hz), SELV
Wire size, power connections 4…0.25 mm2 (12…24 AWG) twisted-pair copper wire suitable for 86 °C (187 °F) above surrounding ambient temperature outside the enclosure
Wire size, functional earth 2.5 mm2 (14 AWG) copper wire suitable for 86 °C (187 °F) above surrounding ambient temperature outside the enclosure, with a suitable ring terminal
Part Number/Catalog No. 1783-US7T1F
Total Ports 8
RJ45 Ports 7 Fast Ethernet
SFP Ports 1 Fast Ethernet Mulitmode Preinstalled Fiber SFP Module
Max Inrush Current 0.41 A
Power Input 24V (12?48V DC, 18...30V AC, 50/60 Hz), SELV
Max Power Consumption 4.6 W
Nom Current DC 250 mA; AC 500 mA
Max Current DC 510 mA; AC 1100 mA
Wire Size: Ground Connection 2.5 mm2 (14 AWG) Copper Wire Suitable for 187 °F (86 °C) Above Surrounding Ambient Temperature Outside the Enclosure, with Suitable Ring Terminal
Wire Size: DC Power Connection 4.5?5.0 in?lb (0.50?0.56 N?m)
Power Terminal Screw Torque 8.05 in?lb
Max Ground Terminal Screw Torque Open-Style/None
