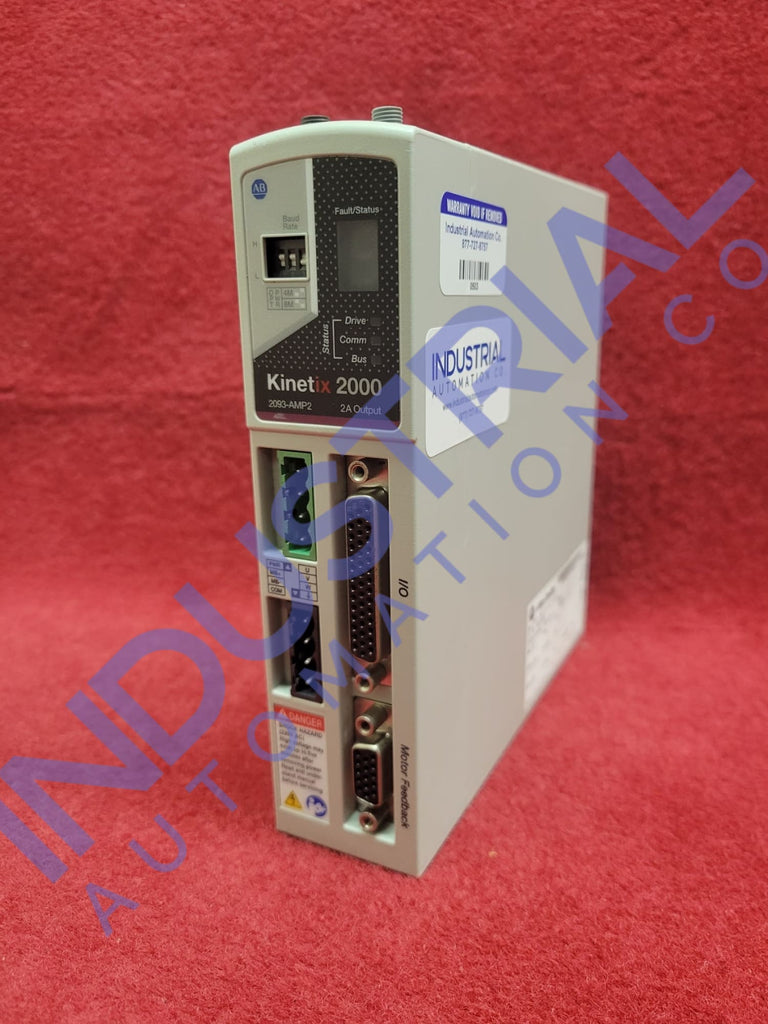

Allen-Bradley 2093-AMP2

The Allen-Bradley 2093-AMP2 is a part of the Kinetix 2000 multi-axis servo drive system designed by Rockwell Automation. This servo drive offers precise control and high performance in demanding industrial applications. It integrates seamlessly with other components in the Kinetix 2000 series. The model is suitable for applications requiring high efficiency, reliability, and advanced control capabilities.

Technical Description:

The 2093-AMP2 servo drive operates with a nominal input voltage of 325 V DC that ensures it can handle various industrial power supply conditions. It features a PWM frequency of 8 kHz which helps in maintaining smooth and precise control of the servo motor. This drive is capable of delivering a continuous current of 2.0 A RMS and a peak current of 6.0 A RMS.

Additionally, it supports a peak current of 8.48 A (0-peak). The bandwidth for the velocity loop is 500 Hz, and for the current loop, it is 860 Hz. These specifications highlight the drives ability to respond quickly and accurately to control signals.

The 2093-AMP2 can sustain a continuous power output of 0.6 kW, with an efficiency of 98 %. In terms of capacitive energy absorption, the drive includes a capacitance of 200 µF, which helps in stabilizing voltage and absorbing transients.

It can handle a capacitive energy absorption of 7.5 J, protecting the drive from potential electrical disturbances. The inverter PCB leakage current is maintained at a low level of 1 mA.

Features and Applications:

The drive supports a peak output current time of up to 3 seconds from 0% drive utilization, allowing it to handle sudden load changes effectively without compromising performance.

The 2093-AMP2 is designed to work seamlessly with other Kinetix 2000 components, such as the integrated axis module (IAM) and the power rail. It provides flexibility in configuring multi-axis systems, making it ideal for complex automation tasks.

The servo drive is suitable for a wide range of industrial applications, including material handling, packaging, printing, and machine tools. Its high precision and responsiveness make it ideal for tasks requiring accurate motion control, such as robotics and automated assembly lines.

Environmental Specifications:

The drive operates within an ambient temperature range of 0 to 50 °C. It can be stored safely in temperatures from -40 to 85 °C. It withstands humidity levels from 5% to 95% without condensing.

The servo drive meets the IP2X (EN60529) environmental rating. This indicates its resilience in less harsh environments. The drive resists vibrations of 5...55 Hz at 0.35 mm double amplitude. It can also endure shocks of 15 g.

Frequently Asked Questions:

How efficient is the 2093-AMP2 servo drive?

The 2093-AMP2 has an efficiency rating of 98%. This high efficiency minimizes energy loss. It reduces operational costs and enhances overall system performance.

What is the continuous current rating of the 2093-AMP2?

The 2093-AMP2 provides a continuous current of 2.0 A RMS. This ensures stable operation under constant load conditions. It supports high-performance industrial applications.

What are the environmental requirements for installing the 2093-AMP2?

The 2093-AMP2 should be installed in a grounded enclosure. The enclosure must offer protection as defined in standard EN 60529 to IP55. This ensures it is not accessible to unskilled persons.
