Allen-Bradley 2094-AC09-M02
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.

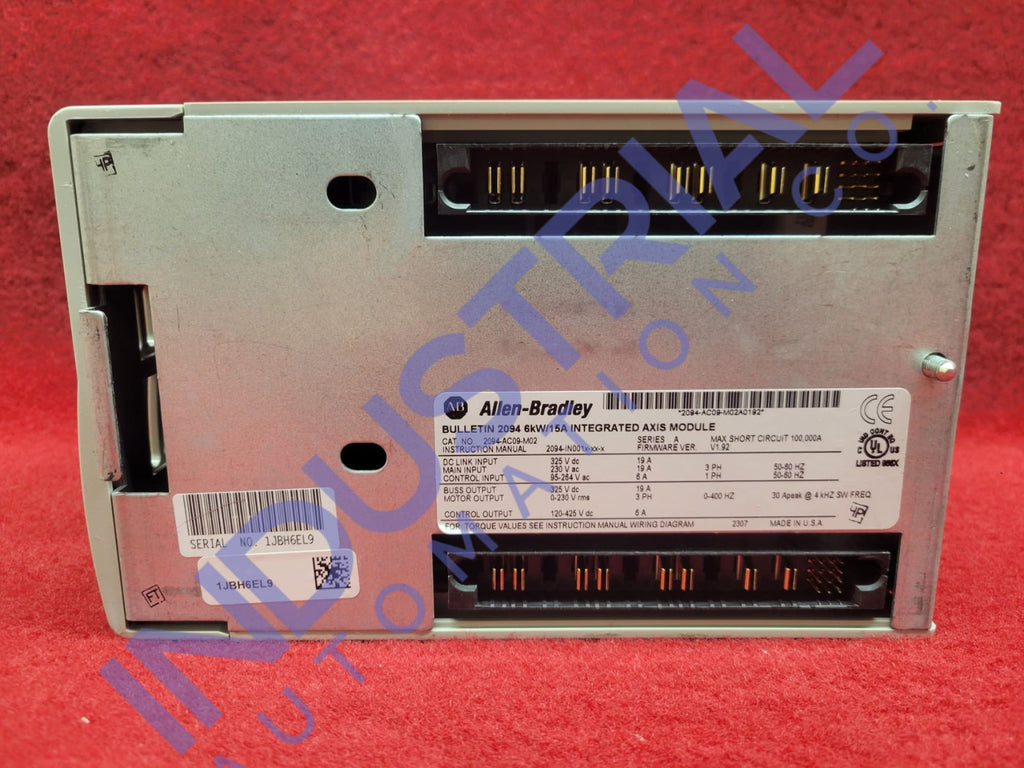

Description
Allen-Bradley 2094-AC09-M02

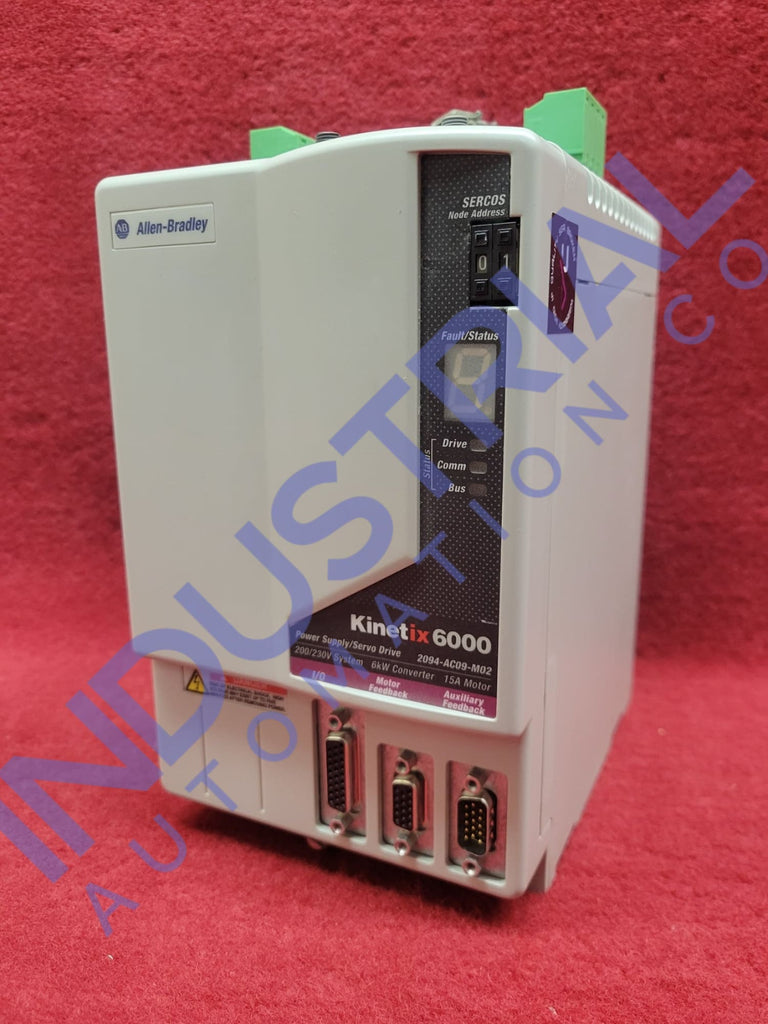

The Allen-Bradley 2094-AC09-M02 Integrated Axis Module is designed to provide precise and efficient control for automation systems. This module integrates seamlessly into a variety of industrial environments. This axis module is from the advanced Kinetix 6000 series. It is equipped with advanced features to meet the demanding requirements of modern manufacturing processes.
Technical Description:
The 2094-AC09-M02 axis module operates with a bus overvoltage of 425 V DC and features a bus undervoltage of 138 V DC. It is highly efficient with an efficiency rating of 0.95, ensuring optimal energy use. It can handle a continuous current (RMS) of 10.6 amps and a peak continuous current of 15.0 amps.
The modules line loss ride through capability is rated at 20 milliseconds providing stability during short power interruptions. It has an AC input voltage range of 195 to 264 volts AC. The internal shunt continuous power is rated at 50 watts, while the internal shunt peak power can reach up to 8000 watts.
The peak power output of the 2094-AC09-M02 is 12 kW, with a continuous output current to the bus rated at 19 amps. It supports a continuous power output to the bus of 6 kW. The DC input voltage range for this module is between 275 to 375 V DC, and the nominal AC input voltage is 230 V AC. The model has a weight of 2.7 kg/ 5.9 lbs and measures 23.7 cm x 12.5 cm x 19.8 cm (H x W x L).
The module is designed for installation on a power rail. The minimum enclosure depth required for installation is 198 mm (7.8 inches). The model must be installed by a highly trained technician in order to get the maximum performance. This also avoids any damages and mishaps.
Connectivity and Interface:
The 2094-AC09-M02 module incorporates the SERCOS interface which allows for high-speed communication and synchronization with other devices in the control system. It also supports the EtherNet/IP interface. The modules memory can retain data for up to 20 years.
Performance and Protection:
This axis module is built to handle demanding applications, with a short-circuit current rating of 200,000 amps symmetrical. It features digital input and output interfaces rated at 230 volts. The output frequency range of the module is 0 to 400 Hertz.
The power dissipation of the module varies with utilization, ranging from 14 watts at 20 % utilization to 46 watts at 100 % utilization. When mounting the module, minimum clearance requirements include 50.8 mm (2.0 inches) of top and bottom clearance, ensuring proper ventilation and heat dissipation.
Frequently Asked Questions:
What are the connectivity options for the Allen-Bradley 2094-AC09-M02?
The Allen-Bradley 2094-AC09-M02 supports SERCOS and EtherNet/IP interfaces. These interfaces allow for high-speed communication and synchronization. They also facilitate integration into networked environments.
What is the efficiency rating of the 2094-AC09-M02 Axis Module?
The efficiency rating of the 2094-AC09-M02 Axis Module is 0.95. This ensures optimal energy use in industrial environments. It provides high performance with minimal energy loss.
What are the power output specifications for the 2094-AC09-M02?
The peak power output of the 2094-AC09-M02 is 12 kW. The continuous power output to the bus is 6 kW.
Product Specifications Table
| Attribute | Specifications |
|---|---|
| Series | Kinetix 6000 |
| Product Type | Axis Module |
| Bus Overvoltage | 425V DC |
| Bus Undervoltage | 138V DC |
| Efficiency | 0.95 |
| Continuous Current (RMS) | 10.6 Amps |
| Peak Power Output | 12 kW |
| AC Input Voltage Range | 195 to 264 Volts AC |
| DC Input Voltage Range | 275 to 375 VDC |
| Continuous Power Output | 6 kW |
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
