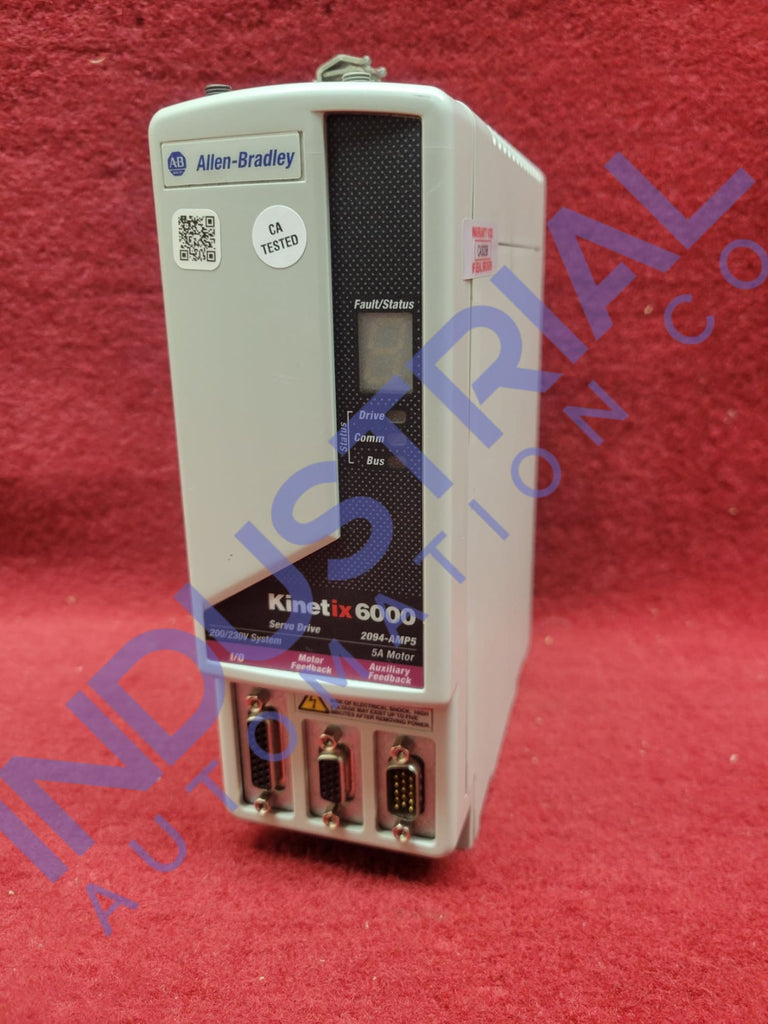

Allen-Bradley 2094-AMP5
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Description
Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships.
- 2094AMP5
- DISCONTINUED BY MANUFACTURER
- AXIS MODULE
- KINETIX 6000
- BUSS IN: 325 VDC
- 5 AMP
- CONTROL INPUT: 120-425 VDC
- .75 AMP
- 200/230 VAC
- 1.2 KW
- MOTOR OUTPUT: 0-230 VRMS
- 3 PH
- 0-400 HZ
- 10. 5 APEAK
- 8 KHZ SW FREQ.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 2094-AMP5
| Manufacturer | Rockwell Automation |
|---|---|
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 2094-AMP5 |
| Module Type | Axis Module |
| Series | Kinetix 6000 |
| Efficiency | 0.98 |
| Continuous Current (rms) | 3.7 Amps |
| Continuous Current (0-peak) | 5.2 Amps |
| PWM frequency | 8 kHz |
| Bandwidth Velocity loop | 500 Hertz |
| Internal Shunt Continuous Power | N/A |
| Internal Shunt Peak Power | N/A |
| Nominal Input Voltage | 325 Volts DC |
| Shunt On | N/A |
