Description

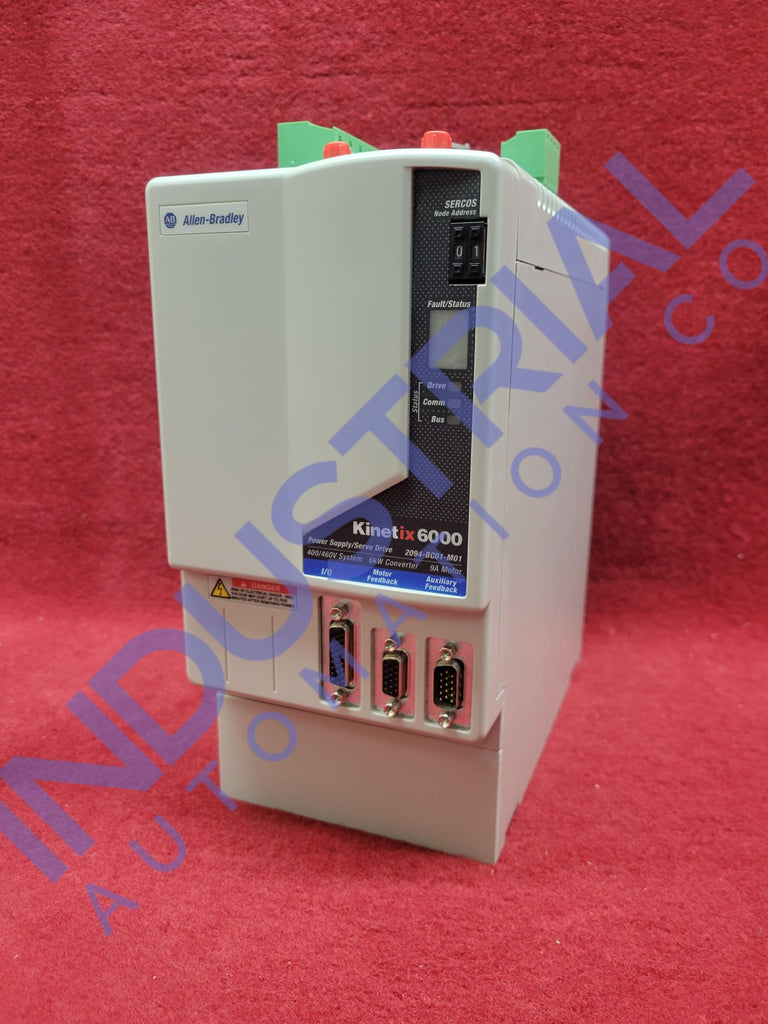

Allen-Bradley 2094-BC01-M01

The Allen-Bradley 2094-BC01-M01 Axis Module is a sophisticated component designed for integrated axis control in industrial automation applications. It is known for its high efficiency and reliability in managing multi-axis servo drives.

This module integrates seamlessly with Logix Programmable Automation Controllers (PAC) and provides precise control over complex machinery and processes. It supports a wide range of industrial applications, offering robust performance in diverse operational environments.

Technical Description:

The Allen-Bradley 2094-BC01-M01 operates within a voltage rating of 460 Volts AC and supports a nominal drive voltage range of 360 to 480 Volts AC. The control voltage ranges from 95 to 264 Vrms for single-phase inputs and 110 to 240 Vrms for nominal inputs.

The module includes a DC bus power fuse, Bussmann Fuse WJ-20A14F, and control input fuses such as FNQ-R-10 (10 A) and FNQ-R-7.5 (7.5 A). This axis module also incorporates control input breakers, specifically the 1492-SPM2D060 or 1492-SPM1D150 models.

The power dissipation range of the module is between 18 to 33 Watts, which helps maintain optimal thermal management during operations. It has a bus undervoltage rating of 275 V DC and a bus overvoltage rating of 825 V DC.

Additional Features:

The operating temperature range of the Allen-Bradley 2094-BC01-M01 is 32 to 122 degrees Fahrenheit (0 to 50 degrees Celsius), allowing it to function effectively in various environmental conditions. It is equipped with LED status indicators that provide clear and immediate feedback on operational states.

The module supports continuous output current to the bus at 9.0 A and continuous power output to the bus at 6kW. For installation, the module requires a clearance of 80 mm (3.10 inches), which facilitates proper airflow and cooling.

The AC input voltage range is 324 to 528 V rms for three-phase systems, supporting robust and flexible power configurations. Additionally, the modules dimensions are 4.9 x 11.9 x 13.2 inches, and it weighs 12.5 pounds.

Integration and Compatibility:

The 2094-BC01-M01 Axis Module is designed for seamless integration with Logix PACs, including CompactLogix and ControlLogix controllers. This integration is achieved through the Premiere Integration method, allowing direct access to module parameters via built-in instructions.

These parameters become an integral part of the user program, scanned cyclically by the processor. This ensures that parameter changes and variations can be pre-programmed and triggered automatically based on specific conditions set within the controller.

Standard Operating Instructions:

To ensure optimal performance and longevity of the Allen-Bradley 2094-BC01-M01, it is important to follow standard operating instructions. Ensure that the module is installed with the required clearance to maintain proper ventilation.

Verify that the power supply voltage and current specifications are within the recommended range. Regularly check the status indicators to monitor the operational state and perform necessary maintenance as indicated by the LED signals.

Frequently Asked Questions:

What connectivity options are available for the Allen-Bradley 2094-BC01-M01?

The module integrates directly with Logix PACs such as CompactLogix and ControlLogix. It uses Premiere Integration for seamless connectivity. This ensures parameters are accessed via built-in instructions.

What are the power specifications for the 2094-BC01-M01 Axis Module?

The module operates at a voltage rating of 460 Volts AC. It supports a nominal drive voltage range of 360 to 480 Volts AC. The AC input voltage range is 324 to 528 V rms for three-phase systems.

What are the environmental operating conditions for the Allen-Bradley 2094-BC01-M01?

The operating temperature range is 32 to 122 degrees Fahrenheit. Ensure proper ventilation for optimal performance.

Product Specifications Table

Attribute	Specifications
Series	Kinetix 6000 Modular
Product Type	Axis Module
Voltage Rating	460 Volts AC
Nominal Drive Voltage	360 to 480 Volts AC
Control Voltage	95-264V rms, single-phase (110-240V rms nom)
AC Input Voltage	324-528V rms, three-phase
Continuous Output Current	9.0 A
Continuous Power Output	6kW
Operating Temperature	32 to 122 degrees Fahrenheit (0 to 50 degrees Celsius)
Dimensions	4.9 x 11.9 x 13.2 inches
