Allen-Bradley 2094-BC01-M01-S

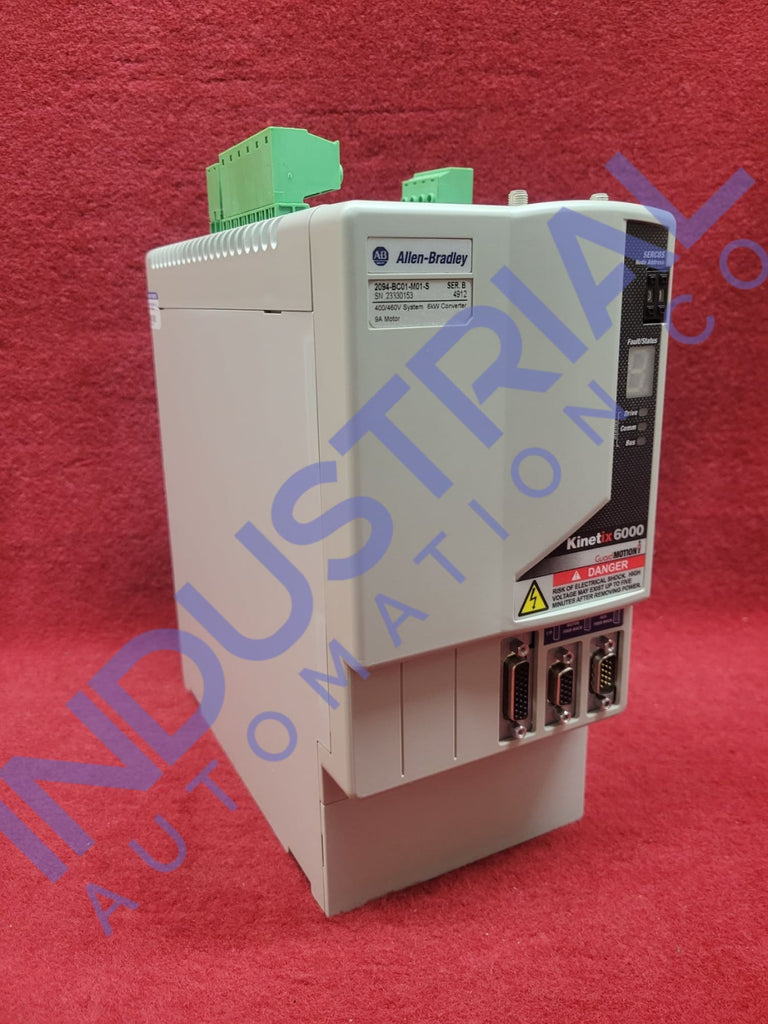

The Allen-Bradley 2094-BC01-M01-S is a Multi-axis Servo Drive module within the Kinetix 6000 Motion control system. It is designed to facilitate precise control and management of industrial automation processes. It embodies advanced engineering tailored for high-performance applications, ensuring seamless integration within diverse manufacturing environments.
Technical Specifications:
Operating within the 400 Volt, this module is optimized to handle a broad spectrum of motion control tasks. With an input voltage range spanning from 360 to 480 Volts AC across three phases, it demonstrates adaptability to varying power inputs, catering to the dynamic requirements of industrial machinery.
Delivering a continuous output current to the bus of 9 Amperes, the module ensures consistent power distribution throughout the system, enabling smooth operation of servo motors and other connected peripherals.
Allen-Bradley 2094-BC01-M01-S supports a common-bus follower configuration, accommodating DC input voltages ranging from 458 to 747 Volts DC. This versatility in power input options further expands the modules compatibility with a wide array of industrial setups, facilitating seamless integration into existing infrastructures with minimal modifications.
With bus undervoltage protection set at 275V DC and bus overvoltage protection at 425V DC, the module offers comprehensive safeguards against potential voltage fluctuations, preserving the integrity and stability of the connected equipment.
Furthermore, its peak power output of 12 kW underscores its capability to handle occasional spikes in power demand, ensuring reliable performance under varying operating conditions.
Installation and Mounting:
The installation and mounting of the Allen-Bradley 2094-BC01-M01-S are designed to ensure both ease of integration and reliable operation within industrial environments.
This module is specifically engineered to be mounted on a power rail, a feature that streamlines the setup process by providing a secure and stable platform for the device. The power rail mounting system simplifies alignment and connection with other components in the Kinetix 6000 Motion control system, enhancing overall efficiency and reducing installation time.
Proper mounting not only secures the module but also plays a significant role in its thermal management. The clearance allows for effective ventilation, thereby enhancing the reliability of the system by preventing thermal stress on the electronic components.
Safety Precautions:
When working with the Allen-Bradley 2094-BC01-M01-S, disconnect the power supply and wait for the internal capacitors to discharge completely, which typically takes several minutes. Indicators or status lights on the module can help verify that power is no longer present, minimizing the risk of electric shock.
The module must be correctly grounded to prevent electrical faults and reduce the risk of electrical shocks. Proper grounding also aids in mitigating electromagnetic interference, ensuring the reliable operation of the servo drive and connected components.
Regular maintenance checks are vital for the continued safe operation of the Allen-Bradley 2094-BC01-M01-S. Any anomalies or irregularities should be addressed immediately to prevent escalation into more significant issues.
Frequently Asked Questions:
What is the continuous output power of the Allen-Bradley 2094-BC01-M01-S?
The continuous output power of the Allen-Bradley 2094-BC01-M01-S to the bus stands at 6 Kilowatts. This robust performance capability is crucial for sustaining demanding operational loads over extended periods.
Does the Allen-Bradley 2094-BC01-M01-S support Safe Torque-Off (STO) functionality?
Yes, the Allen-Bradley 2094-BC01-M01-S supports Safe Torque-Off (STO) functionality, which is an integrated safety feature designed to prevent the drive from delivering torque to the motor, thereby ensuring the motor cannot generate motion.
Why is a minimum enclosure depth of 198 mm required for Allen-Bradley 2094-BC01-M01-S?
The minimum enclosure depth of 198 mm ensures that the module fits properly within control cabinets, providing sufficient space for ventilation and preventing overheating, which is crucial for maintaining optimal performance and longevity of the module.
Product Specifications Table
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Description
Allen-Bradley 2094-BC01-M01-S
The Allen-Bradley 2094-BC01-M01-S is a Multi-axis Servo Drive module within the Kinetix 6000 Motion control system. It is designed to facilitate precise control and management of industrial automation processes. It embodies advanced engineering tailored for high-performance applications, ensuring seamless integration within diverse manufacturing environments.
Technical Specifications:
Operating within the 400 Volt, this module is optimized to handle a broad spectrum of motion control tasks. With an input voltage range spanning from 360 to 480 Volts AC across three phases, it demonstrates adaptability to varying power inputs, catering to the dynamic requirements of industrial machinery.
Delivering a continuous output current to the bus of 9 Amperes, the module ensures consistent power distribution throughout the system, enabling smooth operation of servo motors and other connected peripherals.
Allen-Bradley 2094-BC01-M01-S supports a common-bus follower configuration, accommodating DC input voltages ranging from 458 to 747 Volts DC. This versatility in power input options further expands the modules compatibility with a wide array of industrial setups, facilitating seamless integration into existing infrastructures with minimal modifications.
With bus undervoltage protection set at 275V DC and bus overvoltage protection at 425V DC, the module offers comprehensive safeguards against potential voltage fluctuations, preserving the integrity and stability of the connected equipment.
Furthermore, its peak power output of 12 kW underscores its capability to handle occasional spikes in power demand, ensuring reliable performance under varying operating conditions.
Installation and Mounting:
The installation and mounting of the Allen-Bradley 2094-BC01-M01-S are designed to ensure both ease of integration and reliable operation within industrial environments.
This module is specifically engineered to be mounted on a power rail, a feature that streamlines the setup process by providing a secure and stable platform for the device. The power rail mounting system simplifies alignment and connection with other components in the Kinetix 6000 Motion control system, enhancing overall efficiency and reducing installation time.
Proper mounting not only secures the module but also plays a significant role in its thermal management. The clearance allows for effective ventilation, thereby enhancing the reliability of the system by preventing thermal stress on the electronic components.
Safety Precautions:
When working with the Allen-Bradley 2094-BC01-M01-S, disconnect the power supply and wait for the internal capacitors to discharge completely, which typically takes several minutes. Indicators or status lights on the module can help verify that power is no longer present, minimizing the risk of electric shock.
The module must be correctly grounded to prevent electrical faults and reduce the risk of electrical shocks. Proper grounding also aids in mitigating electromagnetic interference, ensuring the reliable operation of the servo drive and connected components.
Regular maintenance checks are vital for the continued safe operation of the Allen-Bradley 2094-BC01-M01-S. Any anomalies or irregularities should be addressed immediately to prevent escalation into more significant issues.
Frequently Asked Questions:
What is the continuous output power of the Allen-Bradley 2094-BC01-M01-S?
The continuous output power of the Allen-Bradley 2094-BC01-M01-S to the bus stands at 6 Kilowatts. This robust performance capability is crucial for sustaining demanding operational loads over extended periods.
Does the Allen-Bradley 2094-BC01-M01-S support Safe Torque-Off (STO) functionality?
Yes, the Allen-Bradley 2094-BC01-M01-S supports Safe Torque-Off (STO) functionality, which is an integrated safety feature designed to prevent the drive from delivering torque to the motor, thereby ensuring the motor cannot generate motion.
Why is a minimum enclosure depth of 198 mm required for Allen-Bradley 2094-BC01-M01-S?
The minimum enclosure depth of 198 mm ensures that the module fits properly within control cabinets, providing sufficient space for ventilation and preventing overheating, which is crucial for maintaining optimal performance and longevity of the module.
Product Specifications Table
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
