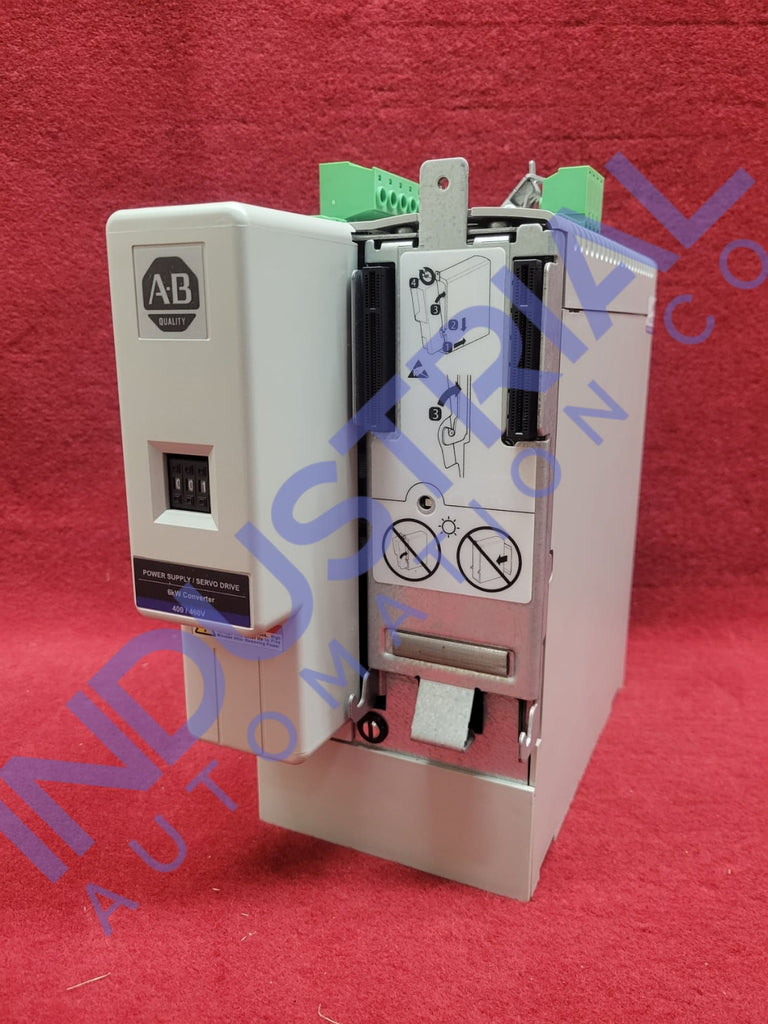

Allen-Bradley 2094-BC01-MP5-M

The 2094-BC01-MP5-M module, part of the Allen-Bradley Kinetix 6200 series, is a high-performance multi-axis servo drive designed for sophisticated automation systems. It features an integrated axis module that combines the functionality of both an inverter and a converter, enhancing its versatility and efficiency.

Technical details:

The Allen-Bradley 2094-BC01-MP5-M boasts a converter power rating of 6 kilowatts and an inverter power rating of 4 Amps (0 to peak), making it suitable for demanding industrial applications. It operates within a 3-phase nominal drive voltage range of 380 to 480 Volts, with an optimal voltage rating of 460 Volts AC.

The Allen-Bradley 2094-BC01-MP5-M supports a maximum bus capacitance of 4585 microfarads and outputs a steady current of 4 Amperes. With dimensions of 4.9 x 11.9 x 13.2 inches and a weight of 12.5 lbs (5.67 kg), this servo drive is compact and lightweight, facilitating easy integration into various setups.

The servo drive is designed to avoid frequent start and stop cycles, which significantly reduces wear on the motor and helps lower maintenance costs. This contributes to longer motor life and reduced downtime.

Installation and Mounting Instructions:

When installing the Allen-Bradley 2094-BC01-MP5-M, ensure that it is mounted securely in a well-ventilated enclosure to maintain optimal performance and longevity. Begin by preparing the mounting surface; it should be flat and capable of supporting the drives weight.

Secure the drive using appropriate mounting hardware, ensuring that it is tightly fastened to prevent vibrations and movement during operation. Next, connect the drive to the power supply. Verify that the incoming power meets the specified 3-phase voltage range.

Once the power connections are established, connect the Allen-Bradley 2094-BC01-MP5-M to the motor and any control interfaces as required by your application. After making all the connections, double-check them for accuracy and completeness before powering up the system.

Safety Guidelines:

Before installation, ensure that all power sources are turned off and locked out to prevent accidental energization. Only qualified personnel should perform the installation and maintenance of the drive. Always use personal protective equipment (PPE) such as gloves and safety glasses when working with electrical components.

During operation, the drives surfaces can become hot; avoid direct contact to prevent burns. Ensure that the drive is adequately cooled by maintaining sufficient clearance around it and using additional cooling methods if necessary.

Although Allen-Bradley 2094-BC01-MP5-M is designed to minimize frequent start and stop cycles, thereby reducing motor wear and lowering maintenance costs, Regularly inspect the drive and its connections for signs of wear, damage, or overheating and address any issues promptly.

Incorporate the drives safe speed monitor function to enhance operational safety. This feature helps to ensure that the motor operates within safe speed limits, reducing the risk of accidents and mechanical failures.

Frequently Asked Questions:

How should the Allen-Bradley 2094-BC01-MP5 be positioned, and what are the clearance requirements?

Position the drive vertically with adequate spacing around it to allow for proper airflow. Maintain at least 4 inches (100 mm) of clearance on all sides to ensure effective cooling and prevent overheating.

What safety features are included in the Allen-Bradley 2094-BC01-MP5-M?

The Allen-Bradley 2094-BC01-MP5-M incorporates several safety features, including Safe Maximum Speed, Safe Maximum Acceleration Monitoring, Safe Direction Monitoring, Zero Speed Monitoring, Enabling Switch Control, and Door Monitoring and Control.

What is the operating temperature range for the Allen-Bradley 2094-BC01-MP5-M?

The Allen-Bradley 2094-BC01-MP5-M can function effectively within an operating temperature range of 32 to 122 degrees Fahrenheit (0 to 50 degrees Celsius). Maintaining this temperature range is essential for ensuring optimal performance and drive longevity.

Product Specifications Table

Attribute Specifications Series Kinetix 6000 Horsepower 8 Hp Voltage 380-480VAC Dimensions 4.9 x 11.9 x 13.2 inches Communication Interface Ethernet/IP Software Compatibility RSLogix 5000 Ambient Temperature Range 0-50°C (32-122°F) Control Method V/F control Input/Output Frequency Range 47-63 Hz Mounting Type Panel Mount
