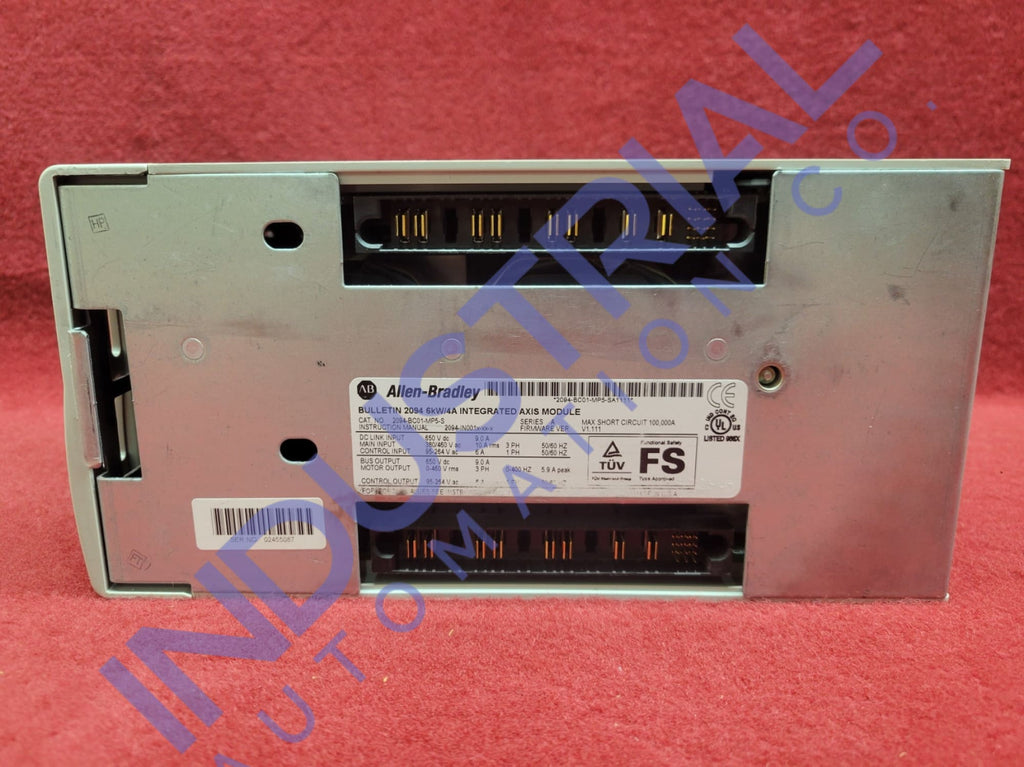

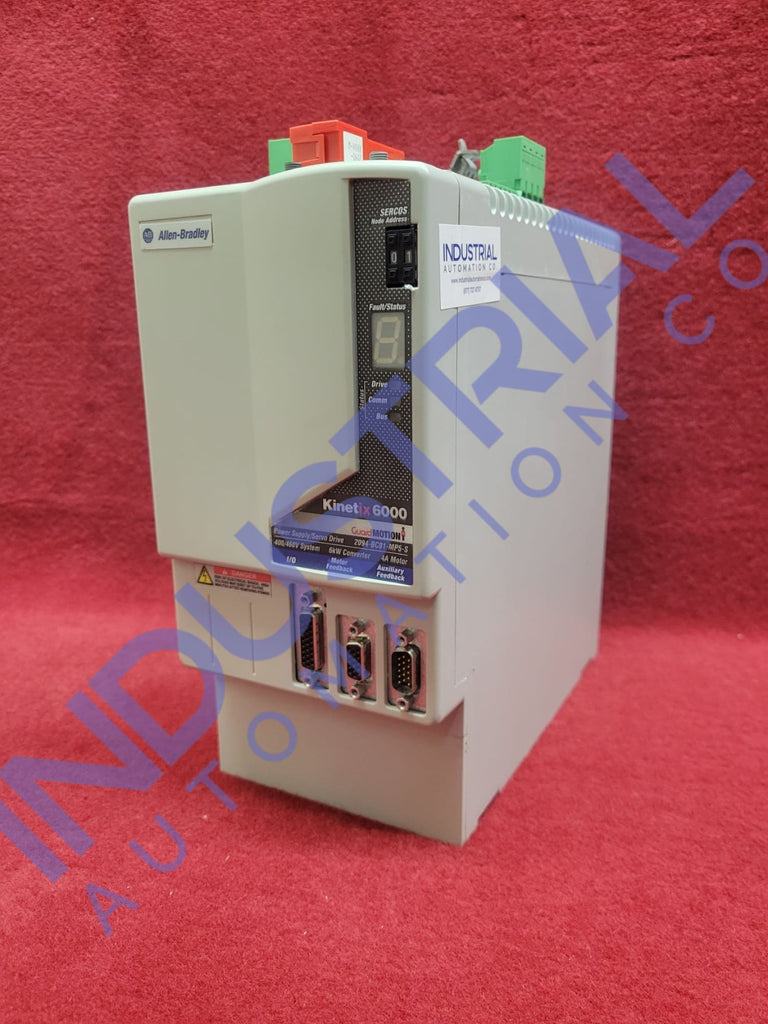

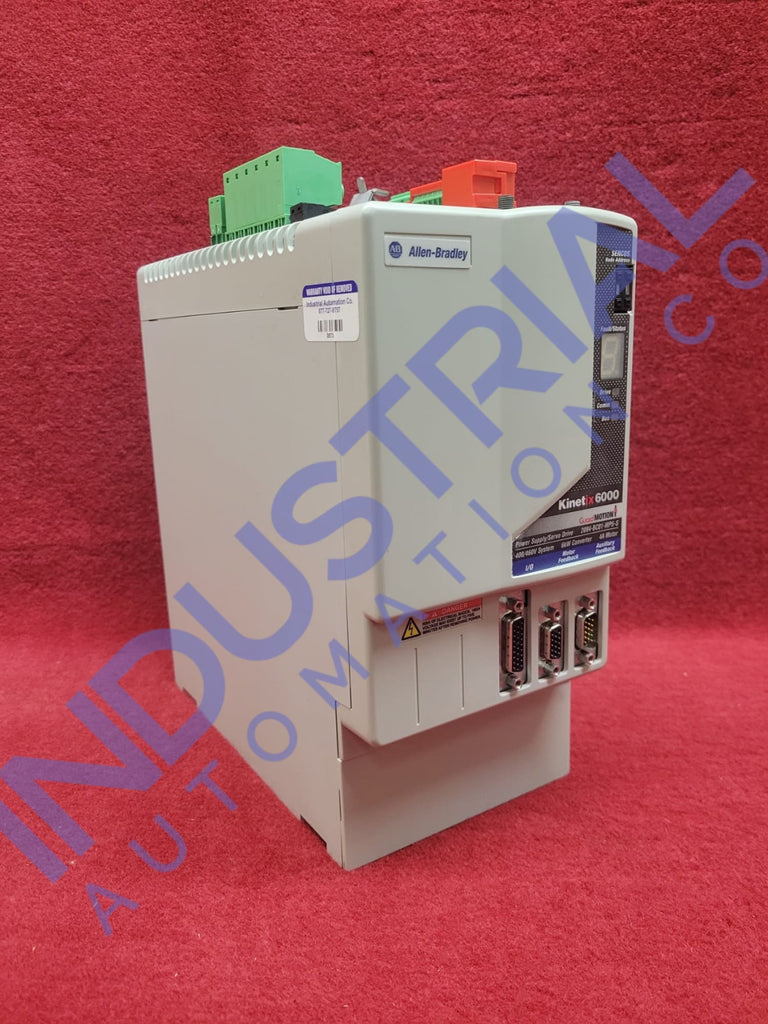

Allen-Bradley 2094-BC01-MP5-S

The Allen-Bradley 2094-BC01-MP5-S is a robust 400 Volt class Integrated Axis Module (IAM) from the Kinetix 6000 Motion Control System series. It is a compact yet powerful solution for integrated motion control applications, providing a balance of power, efficiency, and safety to meet the rigorous demands of modern industrial automation.

Electrical Specifications:

Designed to deliver high performance and reliability, Allen-Bradley 2094-BC01-MP5-S supports a nominal input voltage of 360 to 480 Volts AC and a broader operational range from 324 to 528 volts RMS, catering to various power conditions. The module also features a nominal AC input current of 10.0 Amperes and a maximum inrush current of 11.0 Amperes.

This module is engineered to deliver continuous power and current to the bus, providing up to 9 Amperes of constant output current and 6 Kilowatts of continuous output power.

The Allen-Bradley 2094-BC01-MP5-S also supports a common-bus follower mode, accepting DC input voltages from 458 to 747 Volts DC and delivering a consistent DC input current of 9.0 Amperes.

Advanced Safety and Protection Features:

A key feature of the Allen-Bradley 2094-BC01-MP5-S is its integrated Safe Torque Off (STO) functionality, which enhances safety by ensuring that the motor can be safely shut down in an emergency without complete power removal.

The module is designed with an internal shunt to manage power dissipation. It features a continuous power rating of 50 Watts and a peak power rating of 5.6 Kilowatts, supported by a 115 Ohm internal shunt resistor.

This functionality is crucial for applications requiring quick and safe stops, enhancing operational safety, and meeting stringent safety standards. Additionally, the module is equipped with robust voltage protection mechanisms, with undervoltage protection set at 275V DC and overvoltage protection set at 425V DC.

These features prevent damage to the Allen-Bradley 2094-BC01-MP5-S and connected equipment by ensuring that it operates within safe voltage limits, thus extending the longevity and reliability of the system.

Installation and Maintenance Efficiency:

Designed with ease of installation and maintenance in mind, Allen-Bradley 2094-BC01-MP5-S integrates seamlessly with the Kinetix 6000 Power Rail. This compatibility allows for straightforward mounting and reduces setup time, making it ideal for rapid deployment in various industrial settings.

The module requires a minimum enclosure depth of 198 mm (7.8 inches) and an installation clearance of 50.8 mm (2.0 inches), ensuring it fits well within compact spaces while maintaining adequate ventilation. Its relatively lightweight design, at just 11.0 lbs (4.98 kg), further simplifies the installation process.

Maintenance is also streamlined due to the modules high efficiency of 97%, which reduces heat generation and the need for extensive cooling measures. This efficiency not only contributes to lower operational costs but also enhances the overall reliability and ease of maintenance of the system.

Frequently asked questions:

What is the input frequency range of Allen-Bradley 2094-BC01-MP5-S?

The input frequency range of Allen-Bradley 2094-BC01-MP5-S is 47 to 63 Hertz. It is important because it allows the module to operate effectively across a variety of power supply conditions.

Why is the ability to deliver peak power important for the Allen-Bradley 2094-BC01-MP5-S?

The ability to deliver peak power up to 12 Kilowatts is important because it allows the module to handle sudden increases in load or demanding applications without compromising performance.

What are the power dissipation values of the Allen-Bradley 2094-BC01-MP5-S at various levels of rated power output?

The dissipation increases gradually as the module approaches its rated power output, starting at 46 W when operating at 20% of the rated power. It then rises to 54 W at 40% of the rated power, 61 W at 60%, 69 W at 80%, and reaches 77 W when operating at 100% of the rated power output.

Product Specifications Table

Attribute Specifications Series Kinetix 6000 Horsepower 8 Hp Voltage 380-480VAC Weight 4.98 kg Communication Interface Ethernet/IP Software Compatibility RSLogix 5000 Ambient Temperature Range 0-50°C (32-122°F) Control Method V/F control Input/Output Frequency Range 47-63 Hz Mounting Type Panel Mount
