Allen-Bradley 2094-BC02-M02-M
Allen-Bradley 2094-BC02-M02-M

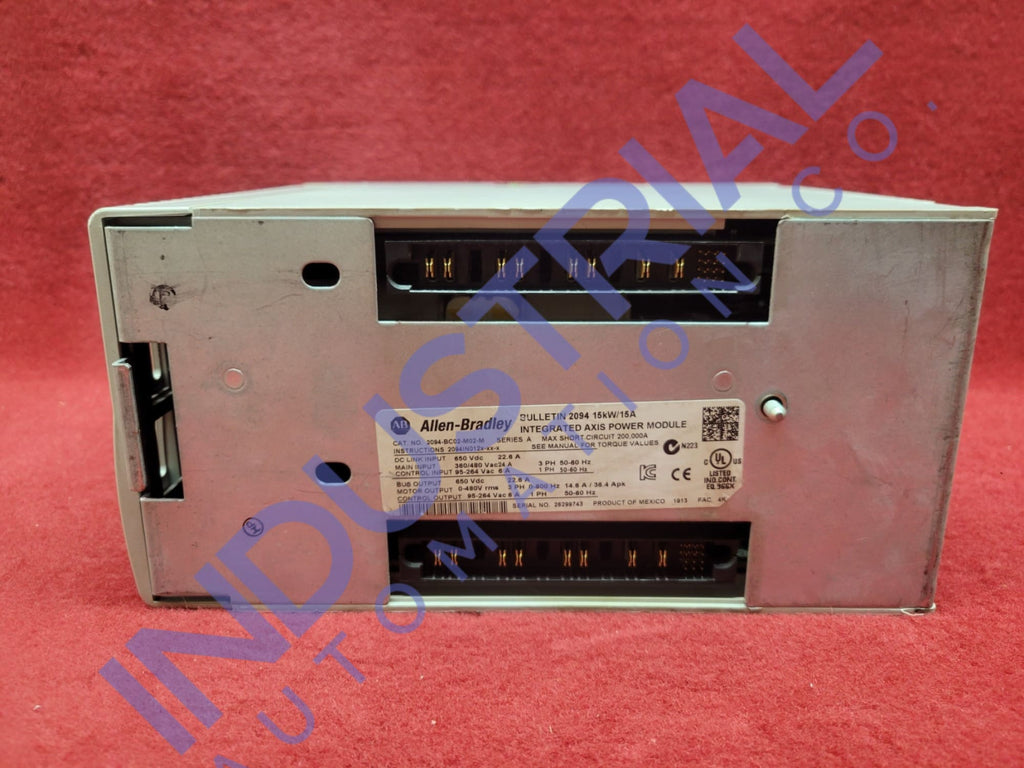

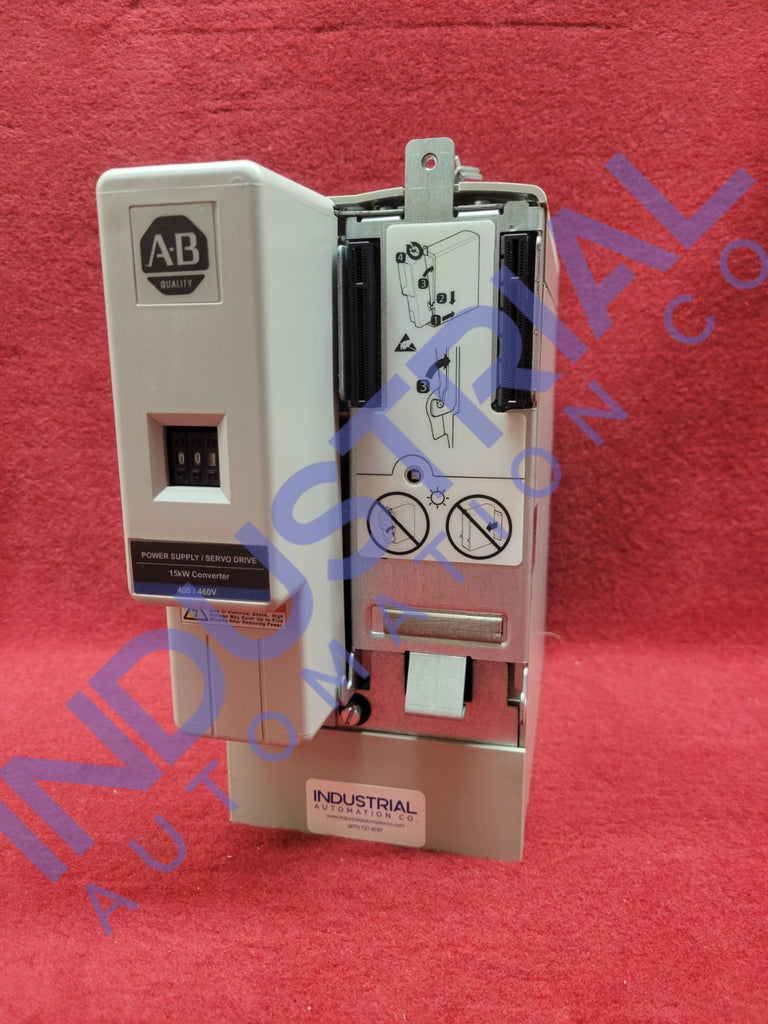

The Allen-Bradley 2094-BC02-M02-M is an Integrated Axis Power Module. It is a powerful and efficient solution for industrial power management needs, combining high output capacity with compact design and robust operational features.
Technical Specifications:
The Allen-Bradley 2094-BC02-M02-M operates with an input voltage rating of 460V and delivers an impressive output power of 15kW. It operates on a nominal drive voltage of 360-480 volts (3-phase), and its output current is rated at 15 A.
The inverter section dissipates 72 watts of heat at 40% load, whereas the converter section dissipates 44 watts at 20% load, ensuring efficient thermal management. Additionally, the power dissipation for the module ranges between 36 to 75 watts, depending on operational conditions.
In terms of physical dimensions, the Allen-Bradley 2094-BC02-M02-M measures 4.9 inches in width, 11.9 inches in depth, and 13.2 inches in height (125 x 302 x 336 mm). It is relatively lightweight, weighing in at 13.0 lbs (5.90 kg), which facilitates easier handling and installation.
Operating within a temperature range of 32 to 122 degrees Fahrenheit (0 to 50 degrees Celsius), the Allen-Bradley 2094-BC02-M02-M is versatile enough to perform in various environmental conditions. The maximum bus capacitance of the module is 8955 microfarads, enhancing its ability to handle power fluctuations and maintain stable performance.
Installation and Mounting:
Installing and mounting the Allen-Bradley 2094-BC02-M02-M requires careful planning and adherence to specific guidelines to ensure optimal performance and safety. The first step in the installation process is to prepare the enclosure and installation clearance around the module for proper ventilation and to prevent overheating during operation.
During the mounting process, it is crucial to secure the module firmly to a stable surface to prevent vibrations and potential dislodgement. The mounting surface should be robust enough to support the module's weight and maintain structural integrity under operational conditions.
Connect the electrical components paying close attention to the voltage rating. Properly secure all electrical connections to prevent loose contacts, which could result in operational inefficiencies or safety hazards.
Operational Features and Performance:
The module incorporates both inverter and converter sections, ensuring comprehensive power management within a single, compact unit. It is important to note that this module requires one control module to function effectively.
The module ensures adequate ventilation and helps prevent overheating, which is crucial for maintaining optimal performance and extending the module's lifespan.
The Allen-Bradley 2094-BC02-M02-M is equipped with comprehensive diagnostic and monitoring features. These allow for real-time tracking of performance metrics, enabling timely maintenance and reducing downtime. By providing detailed feedback on operational status, the module helps maintain optimal performance and supports proactive troubleshooting.
Frequently Asked Questions (FAQ):
What are the installation clearance requirements for the Allen-Bradley 2094-BC02-M02-M Integrated Axis Power Module?
The Allen-Bradley 2094-BC02-M02-M requires a minimum enclosure depth of 302 mm (11.9 inches). Additionally, it is essential to maintain an installation clearance of 80 mm (3.10 inches) around the module.
How should the Allen-Bradley 2094-BC02-M02-M be mounted to allow for easy maintenance?
The Allen-Bradley 2094-BC02-M02-M should be mounted in a position that allows easy access to the control input fuses, which are FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A). This accessibility facilitates straightforward maintenance and replacement of the fuses when necessary, ensuring that the module can be serviced quickly and efficiently without extensive downtime.
What is the weight of the Allen-Bradley 2094-BC02-M02-M Integrated Axis Power Module?
The Allen-Bradley 2094-BC02-M02-M weighs 13.0 lbs (5.90 kg). This relatively lightweight design makes it easier to handle and install within industrial setups.
Product Specifications Table
