Allen-Bradley 2094-BC04-M03-S

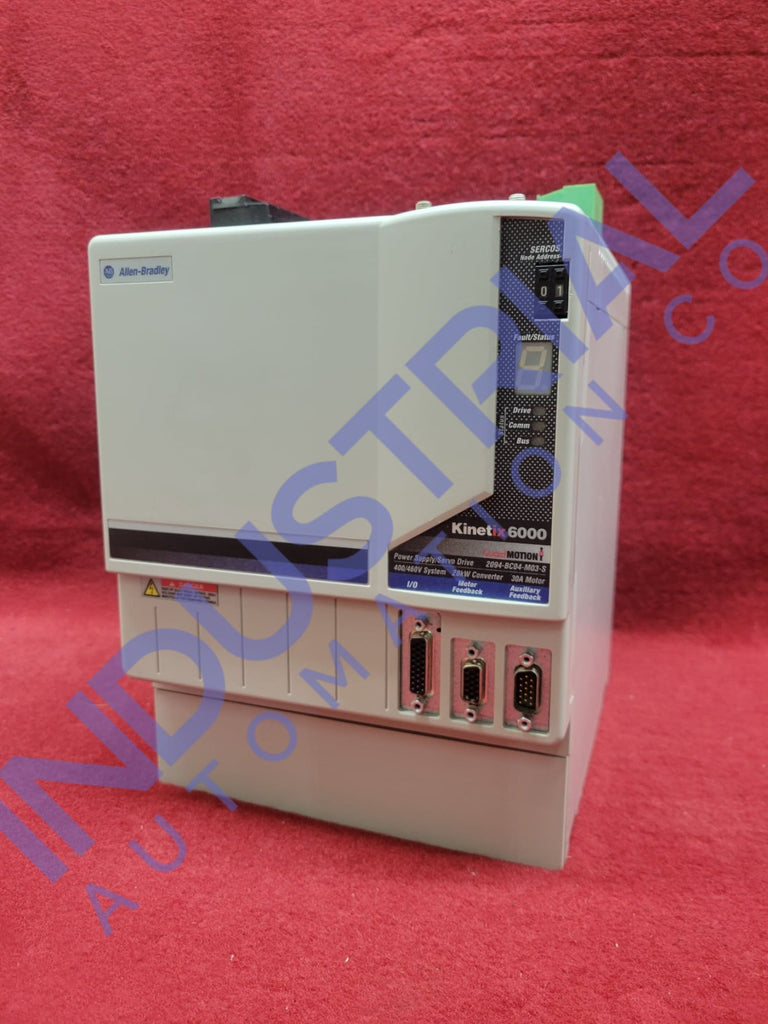

The Allen-Bradley 2094-BC04-M03-S Integrated Axis Power Module is a sophisticated piece of industrial equipment. Designed for efficiency and adaptability, it embodies the essence of modern automation needs. With its robust construction and versatile capabilities, this module offers a solution tailored to the demands of industrial settings.

Electrical Specifications:

It operates within an input power range of 360 to 480 volts, with a converter capable of handling 28 kW and an inverter rated at 30 amperes. The module is designed for efficient power management with an output power rating spanning 50 to 135 watts.

One of the key features of this module is its internal shunt, which provides a peak power of 22.5 kW and a continuous power of 200 watts. The pulse width modulation (PWM) frequency for the module is set at 4 kHz, ensuring precise control over power delivery.

Allen-Bradley 2094-BC04-M03-S operates efficiently within an AC input frequency range of 47 to 63 Hz. Under normal operating conditions, the AC input current is 44 amperes RMS, while the maximum inrush current can peak at 31.1 amperes.

Versatility and Robust Design:

The versatility of the Allen-Bradley 2094-BC04-M03-S is evident in its wide input voltage range and robust design, making it suitable for various industrial settings. It can handle an AC input voltage between 324 and 528 volts RMS across three phases, which accommodates a broad spectrum of power supplies commonly found in industrial environments.

The module weighs 21.1 pounds (9.60 kg) physically, indicating a robust and durable design. The Allen-Bradley 2094-BC04-M03-S is classified as an IAM (Integrated Axis Module) within the 400 Volt Class, ensuring compatibility with a wide range of industrial automation systems.

Additionally, with a durable construction and an operating temperature range from 32 to 122 degrees Fahrenheit (0 to 50 degrees Celsius), this power module is built to withstand harsh conditions while maintaining high performance.

Its efficiency of 97% ensures that energy is utilized effectively, minimizing waste and reducing operational costs. This combination of features makes the Allen-Bradley 2094-BC04-M03-S a reliable and flexible solution for modern automation needs.

Safety Precautions:

Prior to installing or maintaining the Allen-Bradley 2094-BC04-M03-S Integrated Axis Power Module, strict electrical safety protocols must be observed. All power sources must be disconnected and properly locked out/tagged out to prevent accidental energization during work.

Proper grounding and shielding are essential for minimizing electromagnetic interference (EMI) and ensuring the safe operation of the power module. Grounding connections should be inspected regularly to maintain integrity and continuity and mitigate the risk of electrical hazards.

Schedule routine maintenance inspections to identify and address any potential safety hazards or maintenance issues promptly. Inspect the module for signs of damage, wear, or overheating, and replace any worn components or damaged parts as needed.

Frequently Asked Questions:

What is the DC input voltage range for applications using a common bus follower with the Allen-Bradley 2094-BC04-M03-S?

For applications utilizing a common bus follower, the DC input voltage range is between 458 and 747 volts. This range accommodates the specific requirements of systems employing common bus configurations, ensuring compatibility and optimal performance.

What are the bandwidth specifications for the Allen-Bradley 2094-BC04-M03-S, and how do they contribute to its performance?

Additionally, the bandwidth specifications include a velocity loop at 500 Hz and a current loop at 1300 Hz, enabling high responsiveness and accuracy in dynamic applications.

What is the input frequency range capability of the Allen-Bradley 2094-BC04-M03-S, and why is it significant?

The Allen-Bradley 2094-BC04-M03-S can manage an input frequency range from 47 to 63 Hz, which enhances the modules adaptability to various industrial environments and power supplies.

Product Specifications Table

Attribute Specifications Series Kinetix 6000 Horsepower 30 Hp Voltage 360-480 VAC Dimensions 8.0 x 11.5 x 10 inches Communication Interface Ethernet/IP Software Compatibility RSLogix 5000 Ambient Temperature Range 0-50°C (32-122°F) Control Method V/F control Input/Output Frequency Range 47-63 Hz Mounting Type Panel Mount
