Allen-Bradley 2094-EN02D-M01-S0
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Description
Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice, here.

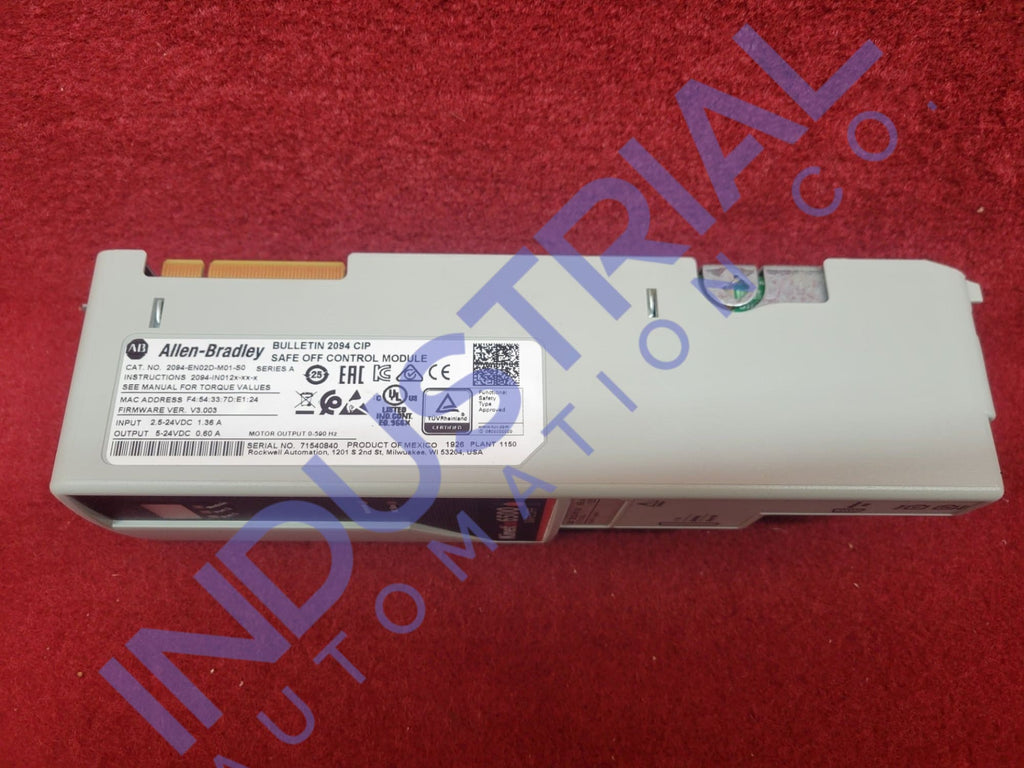

Allen-Bradley 2094-EN02D-M01-S0
The Allen-Bradley 2094-EN02D-M01-S0 is a potent control module designed by Allen-Bradley for the Kinetix 6500 motion control system. The compact design of the module facilitates greater flexibility in machine design and reduces the total number of connections needed through simplified wiring.
Technical Features:
The 2094-EN02D-M01-S0 is a Safe Torque-Off (STO) Control Module specifically designed for the Kinetix 6500 motion control system by Allen-Bradley. This module provides high-performance motion control while incorporating advanced safety features essential for industrial applications.
The 2094-EN02D-M01-S0 Module, part of Allen-Bradleys Kinetix 6500 motion control system, has two Ethernet ports. These ports facilitate robust and reliable communication over EtherNet/IP networks, allowing for efficient data transmission and enhanced network connectivity.
Regarding current ratings, the Allen-Bradley 2094-EN02D-M01-S0 features an output current rating of 0.6 Amps, which is suitable for driving various motor types and ensuring precise control over motion tasks.
Its input current rating is 1.36 Amps, indicating the amount of current the module requires to operate effectively. This specification highlights the modules capacity to manage power efficiently, contributing to its reliability and performance.
The 2094-EN02D-M01-S0 functions with an input voltage range of 2.5-24 VDC, providing flexibility regarding power sources and compatibility with different industrial setups. This wide voltage range ensures that the module can be integrated into various systems without requiring extensive modifications.
Additionally, the 5-24 VDC output voltage range allows the Allen-Bradley 2094-EN02D-M01-S0 to deliver consistent and reliable power to connected devices, ensuring stable performance across different applications.
Ambient Conditions:
The 2094-EN02D-M01-S0 Safe Torque-Off Control Module from Allen-Bradleys Kinetix 6500 series is devised to operate efficiently within specific environmental conditions, ensuring reliable performance in diverse industrial settings. The module functions optimally within an operative temperature range of 0 to 50 degrees Celsius.
The module can withstand temperatures ranging from -40 to 70 degrees Celsius (-40 to 158 degrees Fahrenheit) for transportation and storage. Additionally, it is rated for transport at altitudes up to 3000 meters (9843 feet).
Applications of Allen-Bradley 2094-EN02D-M01-S0:
The 2094-EN02D-M01-S0 Safe Torque-Off (STO) Control Module is widely used in industrial applications where precise and safe motion control is critical. One key application is in the automation of manufacturing processes.
In CNC (Computer Numerical Control) machining, the 2094-EN02D-M01-S0 controls the precise movements of cutting tools and machinery. The modules ability to deliver rapid and accurate responses ensures high precision in machining operations, leading to better quality products and reduced waste.
The module is also essential in material handling and logistics. It provides reliable motion control for automated guided vehicles (AGVs) and other material-handling equipment.
Frequently Asked Questions:
What is the axis performance of the 2094-EN02D-M01-S0 Module?
The 2094-EN02D-M01-S0 Control Module boasts an impressive axis performance of 500 microseconds (µs). This high-speed performance is crucial for applications requiring precise and responsive motion control.
How does the Allen-Bradley 2094-EN02D-M01-S0 module handle varying environmental conditions, specifically in terms of relative humidity?
The 2094-EN02D-M01-S0 is designed to operate effectively in various environmental conditions. It can handle non-condensing relative humidity levels ranging from 5% to 95%.
What indicators are available on the 2094-EN02D-M01-S0 module, and how do they contribute to its functionality?

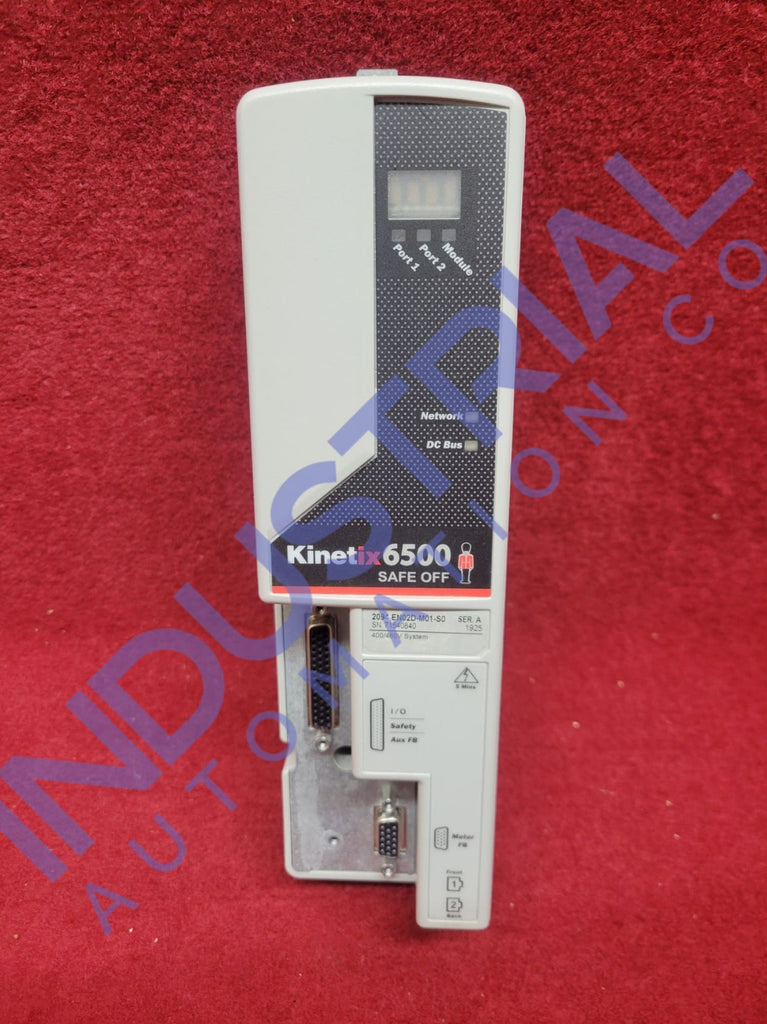

The 2094-EN02D-M01-S0 features several status indicators, including a DC Bus status indicator. These indicators provide critical information about the modules operating status, making it easier for operators to monitor and troubleshoot the system.
Product Specifications Table
| Attribute | Specifications |
|---|---|
| Series | Kinetix 6500 |
| SERCOS ports | N/A |
| Voltage | 2.5-24 VDC (Input) |
| Relative humidity | 5-95% (noncondensing) |
| Communication Interface | Ethernet/IP |
| Software Compatibility | RSLogix 5000 |
| Ambient Temperature Range | 0-50 ° C (32-122 °F) |
| Control Method | Safe Torque-Off |
| Altitude | 3000m |
| Mounting Type | Panel mount |
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 2094-EN02D-M01-S0
| Brand | Allen-Bradley / Rockwell Automation |
|---|---|
| Series | Kinetix 6500 |
| Manufacturer | Rockwell Automation |
| Part Number | 2094-EN02D-M01-S0 |
| Brand | Allen-Bradley |
| Module Type | Safe Torque-Off Control Module |
| Product Description | Kinetix 6500 Control module |
| Bulletin | 2094 |
| Part Number/Catalog No. | 2094-EN02D-M01-S0 |
| Network Communication | EtherNet/IP network |
| No. of Ethernet ports | Two (2) |
| Axis Performance | 500 µs |
| Safe Torque Off (STO) | Supported |
| Network Media | Twisted pair, dual port (EtherNet/IP network) |
| Safety application | SIL CL3 according to EN 61800-5-2, EN 61508, and EN 62061, Performance Level PLe and CAT 4 according to ISO 13849-1 |
| Control Features | EtherNet/IP Network Control |
| Supported Features | DC Bus status indicator; Network status indicator; Module status indicator; PORT 1 status indicator; PORT 2 status indicator; IOD connector for I/O, safety, and auxiliary feedback; MF connector for motor feedback |
| Safety Features | Safe torque-off |
| Operating temperature | 0…50 ° C (32…122 ° F) |
| Ethernet ports | 2 |
| Relative humidity | 5…95% noncondensing |
| SERCOS ports | N/A |
| Operating altitude | Operating Vibration |
| DC Bus status indicator | Yes |
| 5…55 Hz @ 0.35 mm (0.014 in.) double amplitude, continuous displacement; 55…500 Hz @ 2.0 g peak constant acceleration | Storage temperature |
| Network status indicator | Yes |
| -40…70 ° C (-40…158 ° F) | Transport altitude |
| UPC | 884951147775 |
| 3000 meters (9843 ft) |
