Allen-Bradley 2098-DSD-005X
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description

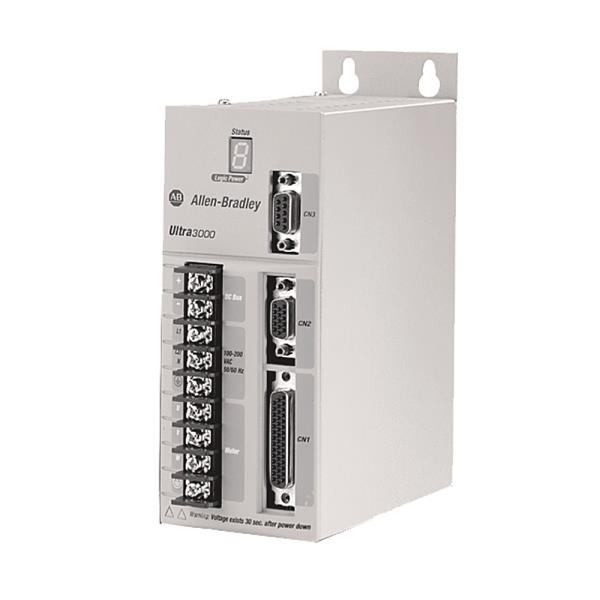

The Allen-Bradley 2098-DSD-005X Ultra 3000 Indexing Servo Drive delivers efficient motion control with its ability to handle a single-phase input voltage range of 100-240VAC at 47-63Hz. This drive provides a continuous motor output current of 2.5A and can peak at 7.5A, supporting up to 0.5kW power output at 230VAC. Engineered for seamless integration, it features SERCOS communication capability and is compatible with servo motors from the H-Series, F-Series, MP Series, 1326AB Series, and Y-Series. Designed to operate reliably within a temperature range of 0°C to 55°C, the drive can be equipped with various accessories, including an external AC line filter and an active shunt module.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 2098-DSD-005X
| Manufacturer | Rockwell Automation |
|---|---|
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 2098-DSD-005X |
| Manufacturer | Rockwell Automation |
| Series | Ultra 3000 Drives |
| Brand | Allen-Bradley |
| Output Current (Intermittent) | 7.5 Amps (0-peak) |
| Part Number/Catalog No. | 2098-DSD-005X |
| Output Current (Continuous) | 2.5 Amps (0-peak) |
| Indexing | Supported |
| Auxiliary Power Supply | No |
| Output Current (Intermittent) | 2.5 Amps (0-peak) |
| Nominal Input Current (AC) | 5 Amps Root Means Square |
| Output Current (Continuous) | 7.5 Amps (0-peak) |
| Input Frequency (AC) | 47-63 Hz |
| Input Frequency (AC) | 47-63 Hz |
| Input Voltage (AC) | 120-240VAC rms, 1-Phase |
| Energy absorption capacity, @ 115 VAC | 93 J |
| Bus Capacitance | 1410 ?F |
| Energy absorption capacity, @ 230VAC | 38 J |
| Bus Overvoltage | 400 Volts dc |
| SERCOS | Supported |
| Shunt On | N/A |
| Compatible Servo Motors | MP-Series, 1326AB, F-, H-, N-, and Y-Series |
| Dimensions | N/A |
| Weight | 7.8 x 5.68 x 2.86 in (198.12 x 144.27 x 72.64 mm) |
| Features | Indexing |
| Internal Shunt Resistance | N/A |
