Allen-Bradley 2098-DSD-010

Allen-Bradley 2098-DSD-010
Allen-Bradley 2098-DSD-010

Allen-Bradley 2098-DSD-010

$0.00

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Request a Price Quote
Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available

We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

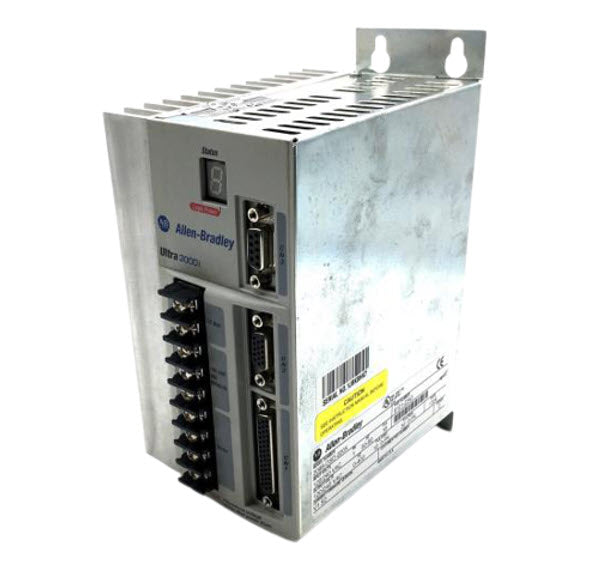

The Allen-Bradley 2098-DSD-010 is a 3000 Ultra Digital Servo Drive ideal for standalone indexing applications and integrated multi-axis motion control. It operates with an input voltage of 100-240VAC and features continuous output power options of 0.5 kW at 115VAC and 1.0 kW at 230VAC, providing a continuous output current of 5A and an intermittent current of 15A. Boasting eight general-purpose inputs and four outputs along with RS232/RS485 communication support, it includes multi-turn absolute encoder capability and optional external logic power to maintain position during power loss. Despite not complying with the EUs RoHS directive, this servo drive includes valuable features for efficient performance, such as integrated motor feedback, DC bus connections, and comprehensive troubleshooting support through seven-segment indicators.


Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
Surplus Original Box 2098-DSD-010 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

Quick Search

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


TECHNICAL SPECIFICATIONS

Technical specifications for 2098-DSD-010

Dimensions N/A
Shunt On N/A
Bus Overvoltage 400 Volts dc
Bus Capacitance 1880 ?F
Input Voltage (AC) 100-240 Voltage Root Means Square (Single Phase)
Input Frequency (AC) 47-63 Hz
Nominal Input Current (AC) 9 Amps Root Means Square
Auxiliary Power Supply No
Output Current (Continuous) 5 Amps (0-peak)
Part Number/Catalog No. 2098-DSD-010
Weight 7.8 x 5.68 x 2.86 in (198.12 x 144.27 x 72.64 mm)
Features Standard
Internal Shunt Resistance N/A
Brand Allen-Bradley
Manufacturer Rockwell Automation
Communication Port One (1) Serial Port
Communication Standard One (1) RS-232/RS-422/RS-485
Status Indicator Seven Segment Status LED
Series Ultra 3000 Drives
Output Current (Intermittent) 15 Amps (0-peak)
UPC 662453834870
