Allen-Bradley 2098-DSD-HV030X
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description

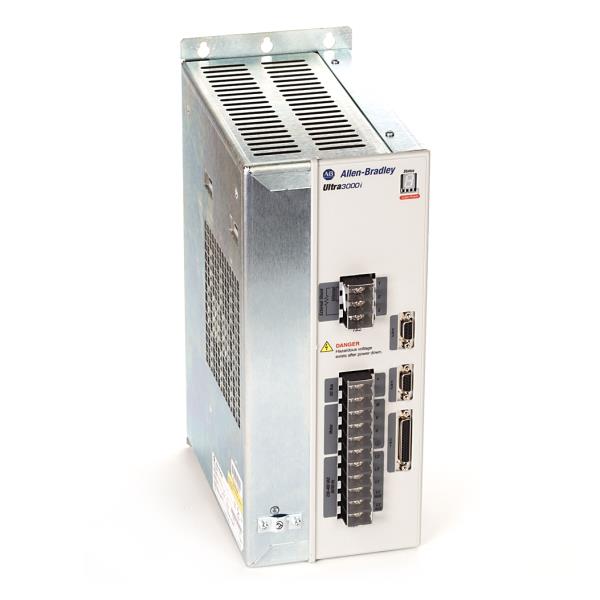

The Allen-Bradley 2098-DSD-HV030X Ultra 3000i Digital Servo Drive is engineered to optimize motion control with its integral indexing capability. This versatile drive operates within a voltage supply range of 230-480V AC across a 3-phase input, supporting both 47-63 Hz frequencies, and delivers output power of 1.5 kW at 230V AC and 3.0 kW at 460V AC. It features advanced control specifications including 3-phase sinusoidal commutation, digital PI and PID regulation with fast update rates, a PWM with space vector modulation, and a robust I/O interface, which comprises optically isolated inputs and outputs, as well as analog inputs and outputs. Additionally, the drive is equipped with a comprehensive communication port compatible with RS-232/RS-485 standards and a peer control function to facilitate seamless drive-to-drive interactions. Designed for indoor use, it provides critical protection features like bus overvoltage protection and incorporates an 800V DC shunt for efficient current management.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 2098-DSD-HV030X
| Part Number | 2098-DSD-HV030X |
|---|---|
| Product Type | Digital Servo Drive |
| Bus Overvoltage | 810V dc |
| Shunt On | 800V dc |
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Series | Ultra 3000 Drives with Indexing |
| Communication Port | One (1) Serial Port |
| Data Rate | 1200, 2400, 4800, 9600, 19200, and 38400 baud |
| Output Current (Intermittent) | 14 Amps (0-peak) |
| Output Current (Continuous) | 7 Amps (0-peak) |
| Nominal Input Current (AC) | 4 Amp, rms |
| Input Voltage (AC) | 230...480V rms Three-phase) |
| Bus Capacitance | 470 ?F |
| Shunt Off | 750V dc |
| Features | Indexing |
| Internal Shunt Resistance | 120 ? |
| Status Indicator | Seven Segment Status LED |
| AC Input Voltage | 230-480V AC |
| AC Input Frequency | 47-63 Hz |
| Main AC Input Current | 4 A |
| Continuous Output Current | 7 A |
| Continuous Power Output | 1.5 kW |
| Interface | Standard |
