Allen-Bradley 2098-DSD-HV050-SE

Allen-Bradley 2098-DSD-HV050-SE
Allen-Bradley 2098-DSD-HV050-SE

Allen-Bradley 2098-DSD-HV050-SE

$0.00

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Request a Price Quote
Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available

We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

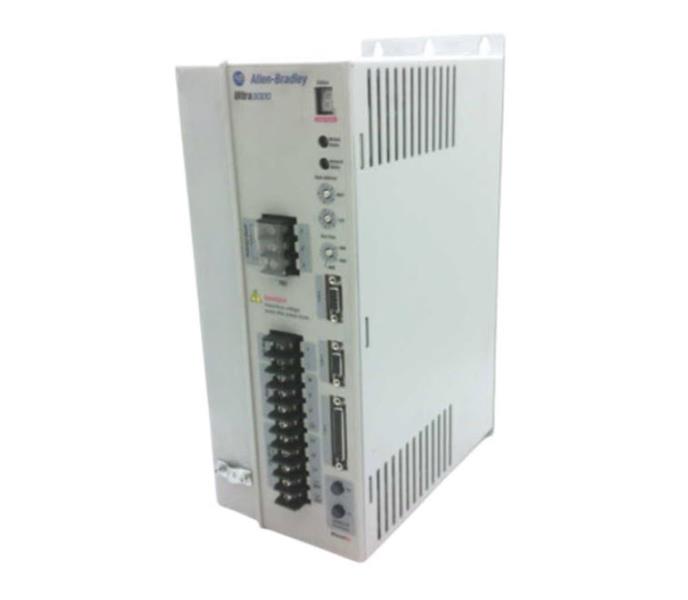

The Allen-Bradley 2098-DSD-HV050-SE is an Ultra 3000 Digital Servo Drive equipped with a SERCOS interface, ideal for diverse industrial applications such as manufacturing assembly. This drive features a fiber optic SERCOS port that supports linear and ring topologies, allowing for data rates of 4 and 8 Mbit and accommodating node addresses ranging from 01 to 99. Operating on a 230-480V 3-phase input with a frequency of 47-63 Hz, it offers continuous output power of 2.5 kW at 230VAC and 5.0 kW at 460VAC, alongside a continuous output current of 11 A and an intermittent output current of 22 A. Its I/O capabilities include eight optically isolated 12-24V inputs, four optically isolated 12-24V outputs, a normally open relay, a 14-bit A/D ±10V command analog input, a 10-bit A/D 0 to 10V ILIMIT analog input, and one ±10V output with 8-bit resolution and a 2 mA maximum current.


Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
Surplus Original Box 2098-DSD-HV050-SE 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

Quick Search

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


TECHNICAL SPECIFICATIONS

Technical specifications for 2098-DSD-HV050-SE

Shunt On 800V dc
Bus Overvoltage 810V dc
Bus Capacitance 470 ?F
Input Voltage (AC) 230...480V rms Three-phase)
Input Frequency (AC) 47-63 Hz
Nominal Input Current (AC) 7 Amp, rms
Output Current (Continuous) 22 Amps (0-peak)
Output Current (Intermittent) 11 Amps (0-peak)
Part Number/Catalog No. 2098-DSD-HV050-SE
Features Indexing
Internal Shunt Resistance 120 ?
Brand Allen-Bradley
Manufacturer Rockwell Automation
Series Ultra 3000 Drives with SERCOS
Communication Port One (1) Serial Port
Data Rate Serial: 1200, 2400, 4800, 9600, 19200, and 38400 baud SERCOS: 4 and 8 Mbit
Shunt Off 750V dc
Status Indicator Seven Segment Status LED
Series Ultra 3000 Drives
Auxiliary Power Supply Yes
Dimensions 750 Volts dc
Weight 9.54 x 14.2 x 5.46 in (242.2 x 360.7 x 138.7 mm)
UPC 662453959511
