Allen-Bradley 2098-DSD-HV150

Allen-Bradley 2098-DSD-HV150
Allen-Bradley 2098-DSD-HV150

Allen-Bradley 2098-DSD-HV150

$0.00

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Request a Price Quote
Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available

We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

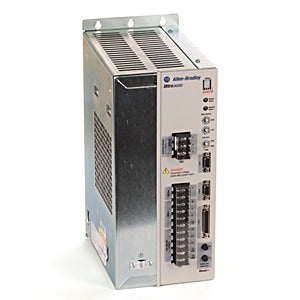

The Allen-Bradley 2098-DSD-HV150 Ultra 3000 drive is engineered for both standalone indexing and integrated multi-axis motion control, offering compatibility with ControlLogix PAC and SOFTLogix controllers via the SERCOS protocol over Ethernet I/P. This drive supports multi-turn absolute encoders, features RS232 and RS485 communication interfaces for various connectivity configurations, and requires a 3-phase AC input voltage between 230-480V rms. It delivers robust performance with continuous and intermittent output currents of 34A and 68A respectively, and its power output ranges from 7.5 kW at 230 VAC to 15 kW at 460 VAC. Designed for resilience in hazardous conditions, this compact drive, measuring 9.54 x 14.2 x 5.97 inches, includes safety features such as a resettable fuse and provisions for isolated power maintenance to protect against system failures.


Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
Surplus Original Box 2098-DSD-HV150 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

Quick Search

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


TECHNICAL SPECIFICATIONS

Technical specifications for 2098-DSD-HV150

Manufacturer Rockwell Automation
Internal Shunt Resistance 25 Ohms
Dimensions 750 Volts dc
Bus Overvoltage 810 Volts dc
Shunt On 800 Volts dc
Input Voltage (AC) 230-480 Voltage rms, 3-Phase
Input Frequency (AC) 47-63 Hz
Output Current (Continuous) 34 Amps (0-peak)
Auxiliary Power Supply Yes
Output Current (Intermittent) 68 Amps (0-peak)
Part Number/Catalog No. 2098-DSD-HV150
Brand Allen-Bradley
Nominal, 230V ac input, 0.55 Amps rms
Nominal, 360V ac input, 0.35A
Nominal, 480V ac input 0.25A
Bus Capacitance 940 ?F
Features Indexing
Series Ultra 3000 Drives
Nominal Input Current (AC) 20 Amps Root Means Square
Shunt Off 750 Volts DC
Weight 22.96 pounds
