Allen-Bradley 20BD022A3AYNANC1

Allen-Bradley 20Bd022A3Aynanc1
Allen-Bradley 20Bd022A3Aynanc1

Allen-Bradley 20BD022A3AYNANC1

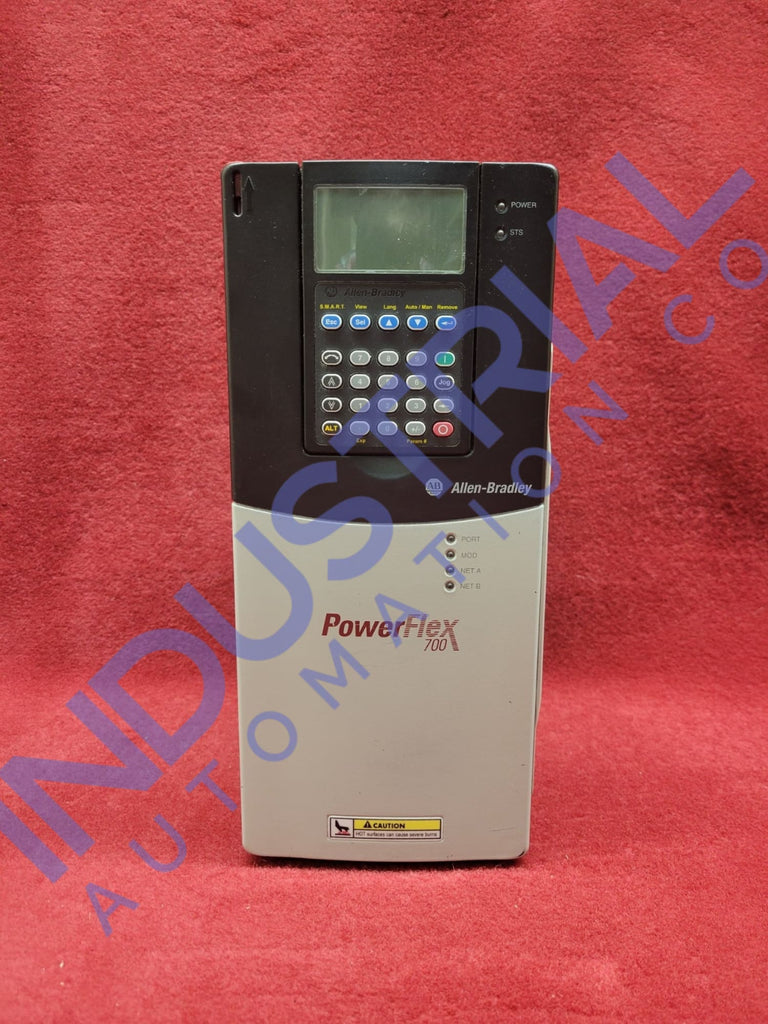

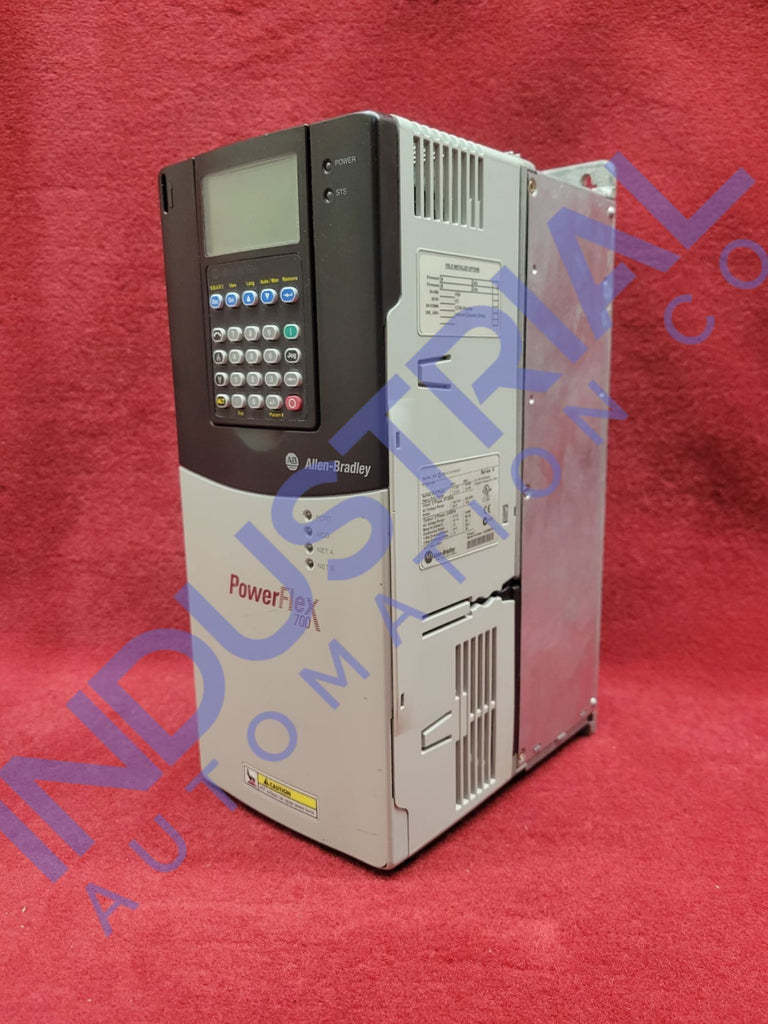

The Allen-Bradley 20BD022A3AYNANC1 is an AC drive from the PowerFlex 700 series known for its exceptional performance. This AC DRIVE is engineered to satisfy the most rigorous industrial applications, providing advanced control capabilities, robust performance, and enhanced functionality to guarantee optimal motor control and energy efficiency.

Technical Specifications:

The 20BD022A3AYNANC1 AC DRIVE is suitable for heavy-duty applications because it manages enormous electrical loads. Its 22 A current usage and 15 HP power generation are sufficient for medium-sized industrial motors. The Allen-Bradley 20BD022A3AYNANC1 is designed to work reliably at 480 V AC in high-voltage situations.

The drive is housed in the compact Frame 1 enclosure, which is suitable for small installations. The enclosures IP20 rating protects against solid objects larger than 12 mm, making it suitable for controlled industrial applications.

The AC drives LCD display clearly shows the drive status and operating parameters. This display and complete keypad allow simple programming and configuration, allowing users to make efficient modifications and monitor performance. A brake IGBT ensures smooth and controlled motor deceleration, essential for precision stopping applications.

A CE filter and CM choke eliminate electromagnetic interference and ensure emission compliance in the drive. Advanced vector control technology lets the Allen-Bradley 20BD022A3AYNANC1 regulate motors precisely and responsively.

The AC drive has 24 V DC I/O for easy interaction with other control systems and peripheral device control. It also works with feedback encoders, which provide real-time motor position and speed data to improve drive control. The drive supports 12V and 5V feedback encoders, giving encoder selection freedom.

Performance and Efficiency:

The Allen-Bradley 20BD022A3AYNANC1 is engineered to optimize efficiency and performance. It provides a variety of programmable stop modes, such as DC-brake, rapid brake, and S-curve, which enable the customization of control to meet the specific requirements of a particular application.

The drive also offers fine-tuned control over motor speed changes by supporting dual acceleration and deceleration periods, which can be programmed in 0.1-second increments from 0 to 3600 seconds.

At nominal line voltage and rated amps, the drive operates at a high efficiency of 97.5%, minimizing energy losses and reducing operational costs. Its sophisticated vector control, devoid of feedback, guarantees a speed regulation accuracy of ±0.1% of base speed over a 120:1 speed range, enabling precise control in even the most demanding applications.

Safety and Protection:

Its critical safety and protection features characterize the Allen-Bradley 20BD022A3AYNANC1. The drive is equipped with motor overload protection, which is in accordance with NEC article 430 and offers class 10 motor overload protection. It also includes overcurrent trip protection, guaranteeing safe operation under various load conditions. The instantaneous current limits range from 220% to 300% of the rated current.

The drives output is equipped with phase-to-phase and phase-to-ground fault detection, effectively protecting against short circuits. The ground fault trip feature safeguards the drive and connected apparatus from damage, promptly detecting any leakage currents. Furthermore, the drive can sustain operation during brief power interruptions by supporting a power ride-through capability of 15 milliseconds at full load.

Frequently Asked Questions:

What is the input voltage range for the 20BD022A3AYNANC1?

The 20BD022A3AYNANC1 is designed to be adaptable and flexible in a variety of industrial environments and electrical conditions. Its input voltage range is 380 to 480V.

Can the 20BD022A3AYNANC1 handle feedback encoders?

Yes, the 20BD022A3AYNANC1 is compatible with both 12V and 5V feedback encoders, which enables the precise regulation of motor position and speed, thereby improving the overall operational accuracy.

Does the 20BD022A3AYNANC1 include a braking feature?

Certainly, the 20BD022A3AYNANC1 is equipped with a brake IGBT, ensuring the motors deceleration is seamless and controlled, improving operational safety and performance.

Product Specifications Table:

Attributes Specification
Frequency 60 Hz
Phases 3
Current Rating 22 Amps
Power Rating 15 HP
Voltage Rating 480 V AC
Enclosure Frame 1, IP20
Display LCD Display
Keypad Full Keypad
Brake IGBT Available
Emission CE Filter, CM Choke

Allen-Bradley 20BD022A3AYNANC1

Regular price
$2,990.00
Sale price
$2,990.00
We currently have 1 in stock.
Checkmark

In stock - Ships Today

Checkmark

Eligible for Next Day Delivery

Checkmark

Ships From Our North Carolina Warehouse

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

Allen-Bradley 20BD022A3AYNANC1

The Allen-Bradley 20BD022A3AYNANC1 is an AC drive from the PowerFlex 700 series known for its exceptional performance. This AC DRIVE is engineered to satisfy the most rigorous industrial applications, providing advanced control capabilities, robust performance, and enhanced functionality to guarantee optimal motor control and energy efficiency.

Technical Specifications:

The 20BD022A3AYNANC1 AC DRIVE is suitable for heavy-duty applications because it manages enormous electrical loads. Its 22 A current usage and 15 HP power generation are sufficient for medium-sized industrial motors. The Allen-Bradley 20BD022A3AYNANC1 is designed to work reliably at 480 V AC in high-voltage situations.

The drive is housed in the compact Frame 1 enclosure, which is suitable for small installations. The enclosures IP20 rating protects against solid objects larger than 12 mm, making it suitable for controlled industrial applications.

The AC drives LCD display clearly shows the drive status and operating parameters. This display and complete keypad allow simple programming and configuration, allowing users to make efficient modifications and monitor performance. A brake IGBT ensures smooth and controlled motor deceleration, essential for precision stopping applications.

A CE filter and CM choke eliminate electromagnetic interference and ensure emission compliance in the drive. Advanced vector control technology lets the Allen-Bradley 20BD022A3AYNANC1 regulate motors precisely and responsively.

The AC drive has 24 V DC I/O for easy interaction with other control systems and peripheral device control. It also works with feedback encoders, which provide real-time motor position and speed data to improve drive control. The drive supports 12V and 5V feedback encoders, giving encoder selection freedom.

Performance and Efficiency:

The Allen-Bradley 20BD022A3AYNANC1 is engineered to optimize efficiency and performance. It provides a variety of programmable stop modes, such as DC-brake, rapid brake, and S-curve, which enable the customization of control to meet the specific requirements of a particular application.

The drive also offers fine-tuned control over motor speed changes by supporting dual acceleration and deceleration periods, which can be programmed in 0.1-second increments from 0 to 3600 seconds.

At nominal line voltage and rated amps, the drive operates at a high efficiency of 97.5%, minimizing energy losses and reducing operational costs. Its sophisticated vector control, devoid of feedback, guarantees a speed regulation accuracy of ±0.1% of base speed over a 120:1 speed range, enabling precise control in even the most demanding applications.

Safety and Protection:

Its critical safety and protection features characterize the Allen-Bradley 20BD022A3AYNANC1. The drive is equipped with motor overload protection, which is in accordance with NEC article 430 and offers class 10 motor overload protection. It also includes overcurrent trip protection, guaranteeing safe operation under various load conditions. The instantaneous current limits range from 220% to 300% of the rated current.

The drives output is equipped with phase-to-phase and phase-to-ground fault detection, effectively protecting against short circuits. The ground fault trip feature safeguards the drive and connected apparatus from damage, promptly detecting any leakage currents. Furthermore, the drive can sustain operation during brief power interruptions by supporting a power ride-through capability of 15 milliseconds at full load.

Frequently Asked Questions:

What is the input voltage range for the 20BD022A3AYNANC1?

The 20BD022A3AYNANC1 is designed to be adaptable and flexible in a variety of industrial environments and electrical conditions. Its input voltage range is 380 to 480V.

Can the 20BD022A3AYNANC1 handle feedback encoders?

Yes, the 20BD022A3AYNANC1 is compatible with both 12V and 5V feedback encoders, which enables the precise regulation of motor position and speed, thereby improving the overall operational accuracy.

Does the 20BD022A3AYNANC1 include a braking feature?

Certainly, the 20BD022A3AYNANC1 is equipped with a brake IGBT, ensuring the motors deceleration is seamless and controlled, improving operational safety and performance.

Product Specifications Table:

Attributes Specification
Frequency 60 Hz
Phases 3
Current Rating 22 Amps
Power Rating 15 HP
Voltage Rating 480 V AC
Enclosure Frame 1, IP20
Display LCD Display
Keypad Full Keypad
Brake IGBT Available
Emission CE Filter, CM Choke

Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
IAC Certified Refurbished 20BD022A3AYNANC1-R $2,990.00 USD 2 Year Extended Warranty 1 In Stock in the U.S.A!
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.
