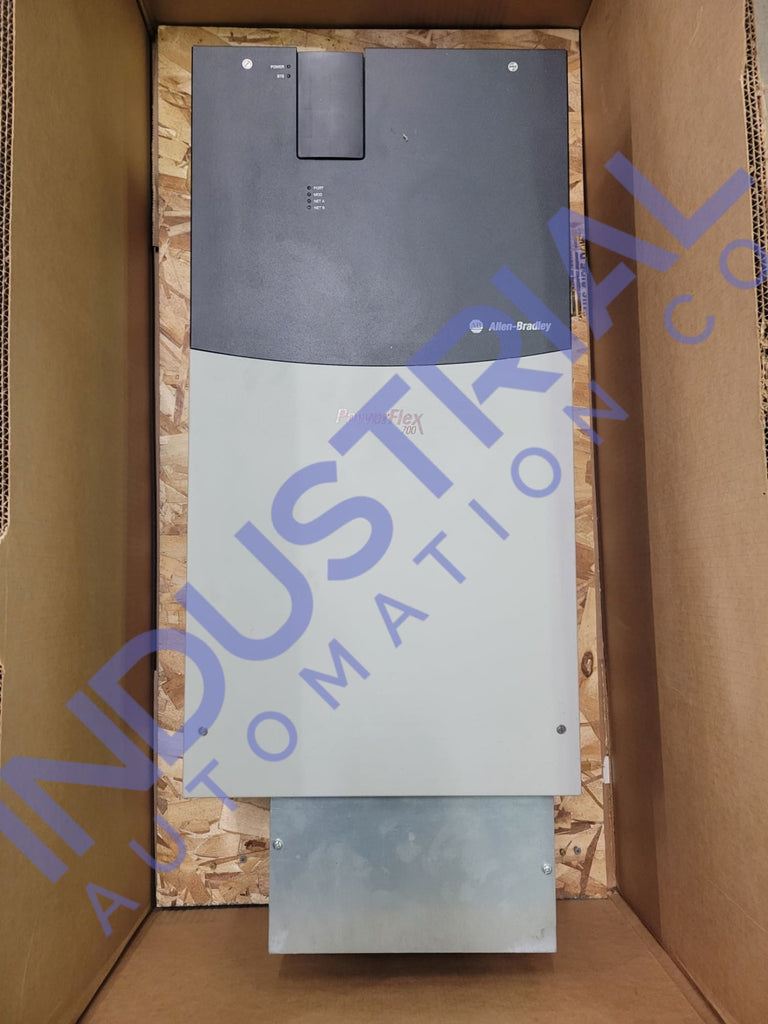

Allen-Bradley 20BD180A0ANNANC0

The Allen-Bradley 20BD180A0ANNANC0 is an advanced AC drive designed for industrial applications. Manufactured by Allen-Bradley, this drive is part of the PowerFlex 700 series, known for its robust performance and reliability. It is used for the speed and torque regulation of industrial AC motors, enhancing the control and efficiency of various processes. This drive is suitable for applications such as HVAC, pumps, fans, and extruders.

Technical Description:

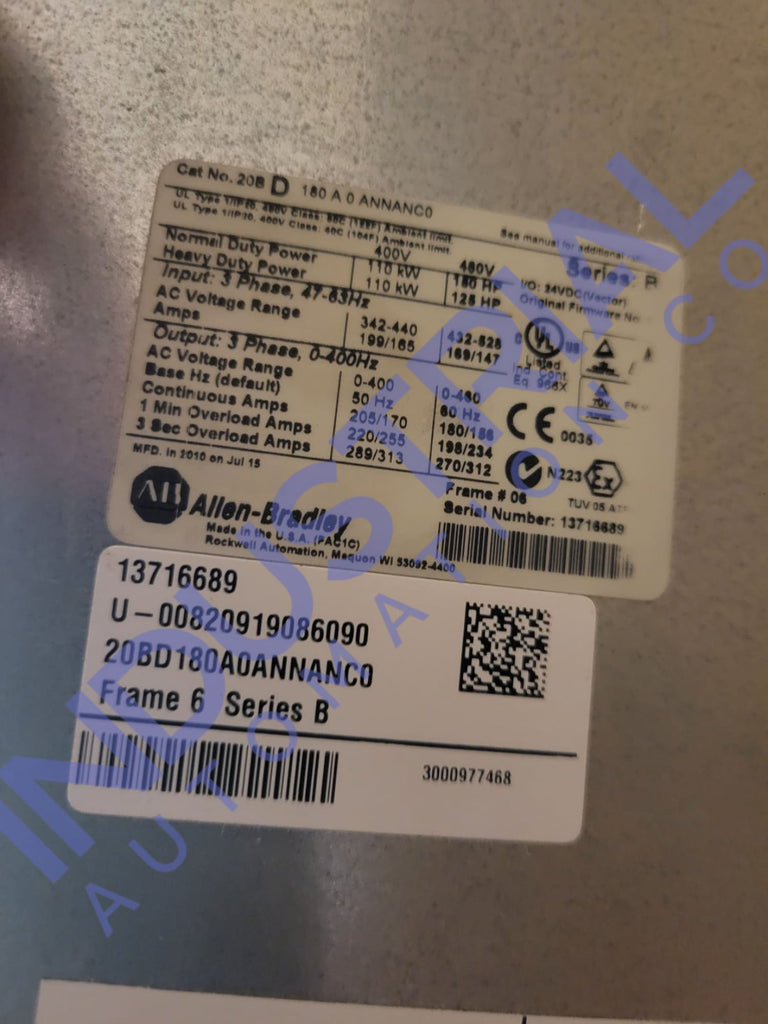

The Allen-Bradley 20BD180A0ANNANC0 operates at a voltage of 480 V AC and supports three-phase power. It delivers a current rating of 180 amps and a horsepower of 150 HP. The drive features a CE filter and common mode choke for enhanced electromagnetic compatibility and reduced electrical noise.

It does not include a precharge function. The enclosure is rated IP20 and complies with NEMA/UL Type 1 standards, ensuring protection against dust and light water splashes.

The drives control system is based on vector control with 24 V DC/AC I/O. It supports both with and without an encoder and offers sensorless vector control volts per hertz. The control version of this drive is enhanced, and it includes an integrated IGBT brake for efficient braking.

The models emission class is filtered that ensures minimal interference with other electronic devices. The drives operator interface is a blank cover, and it does not include a human interface module.

Installation and Connectivity:

For installation, the recommended cable sizes for power terminals are 2.5 to 150 millimeters squared. For I/O terminals, the recommended sizes are 0.3 to 2.5 millimeters squared. The drive supports a working temperature range of 0 to + 50 degrees Celsius.

It produces a sound level of 72 dB during operation, and the cooling fan has a velocity of 300 CFM. The drive dimensions are 72 x 28 x 19.2 inches, and it weighs approximately 390 pounds.

Protection Features:

The 20BD180A0ANNANC0 offers robust protection features, including Class 10 protection against motor overload and over-temperature. It is designed to dissipate up to 220 watts of energy as heat. The drive does not include network connectivity options focusing on standalone operation with vector control.

Standard Operating Precautions:

Ensure proper ventilation around the drive to prevent overheating. Use recommended cable sizes and secure all connections tightly. Keep the drive enclosure clean and free from dust and debris. Do not exceed the specified operational temperature range.

To achieve optimal performance and prevent damage or mishaps, the model should be used exclusively with the accessories and attachments specified by the manufacturer. By adhering to these precautions, the Allen-Bradley 20BD180A0ANNANC0 will provide reliable performance and longevity in demanding industrial environments.

Frequently Asked Questions:

What are the connectivity options in the Allen-Bradley 20BD180A0ANNANC0?

The Allen-Bradley 20BD180A0ANNANC0 does not include network connectivity options. It operates as a standalone unit with vector control.

What is the voltage rating for the Allen-Bradley 20BD180A0ANNANC0?

The Allen-Bradley 20BD180A0ANNANC0 operates at 480V AC. It supports three-phase power configurations.

Does the Allen-Bradley 20BD180A0ANNANC0 include a human interface module (HIM)?

No, the Allen-Bradley 20BD180A0ANNANC0 does not include a human interface module (HIM). It features a blank cover operator interface.

Product Specifications Table
