2 Year Warranty on ALL products

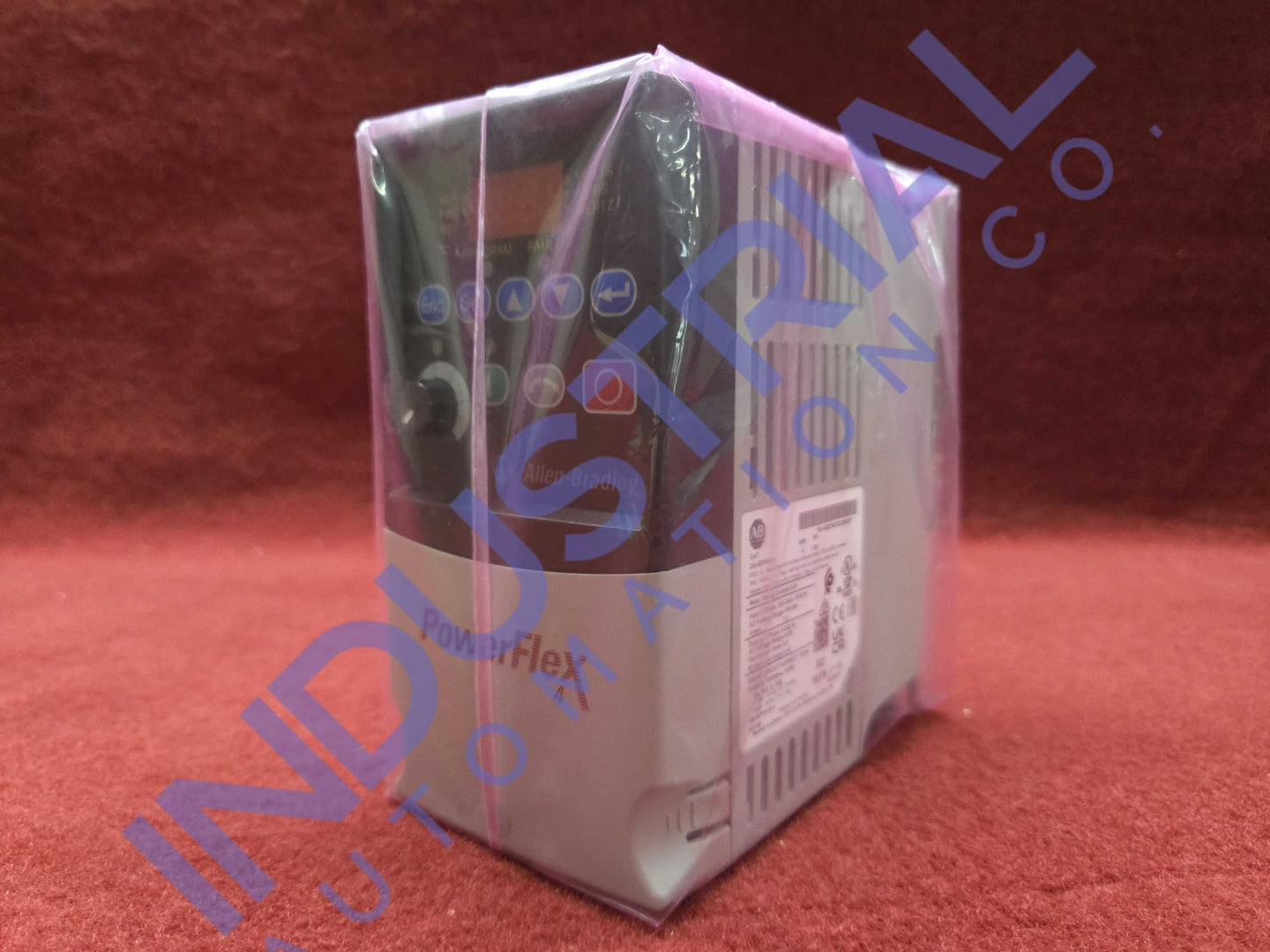

Allen-Bradley 22A-B2P3N104
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Description
Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships.
- 22AB2P3N104
- AC DRIVE
- ADJUSTABLE FREQUENCY
- POWERFLEX 4
- 240 VAC
- 3 PHASE
- 2.3 AMP
- 0.4 KW / 0.5 HP
- PANEL MOUNT - IP 20 NEMA TYPE OPEN
- FIXED KEYPAD
- NOT FILTERED
- STANDARD BRAKE
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 22A-B2P3N104
| Brand | Allen-Bradley |
|---|---|
| Part Number/Catalog No. | 22A-B2P3N104 |
| Manufacturer | |
| Input Voltage: | 180-265 VAC |
| Input Phase: | 3-Phase |
| Output Voltage: | 240VAC |
| Rated Current output: | 2.3 A |
| Rated Power: | 0.5 HP (0.4KW) |
| I/O: | Discrete Inputs: 3 fixed for START/STOP/REV; Discrete Outputs: 2 fully programmable; Analog Input: 1 0…10V or 4…20 mA) Discrete Output: 1 - N.O/N.C. dry contact |
| Installation: | Panel Mount |
| Enclosure Rating: | IP20 / NEMA UL |
| Emission: | Unfiltered |
| IGBT Brake: | Included |
| Built-in communication port: | RS485 |
| Optional communication adapters: | RS232; BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Product Line | PowerFlex 4 |
| Amperage | 2.3 |
| Enclosure Type | IP20/UL (Open) |
| Filter | Without CE Compliant Filter |
| Phase | 3 Phase |
| Wattage | 3.7 Kilowatt |
| Input Type | Keypad |
| Display | Light-Emitting Diode (LED) |
| Horsepower | .5 Horsepower |
| Input Power | 200-240 Volts AC |
| Brake Drive | Brake Drive |
