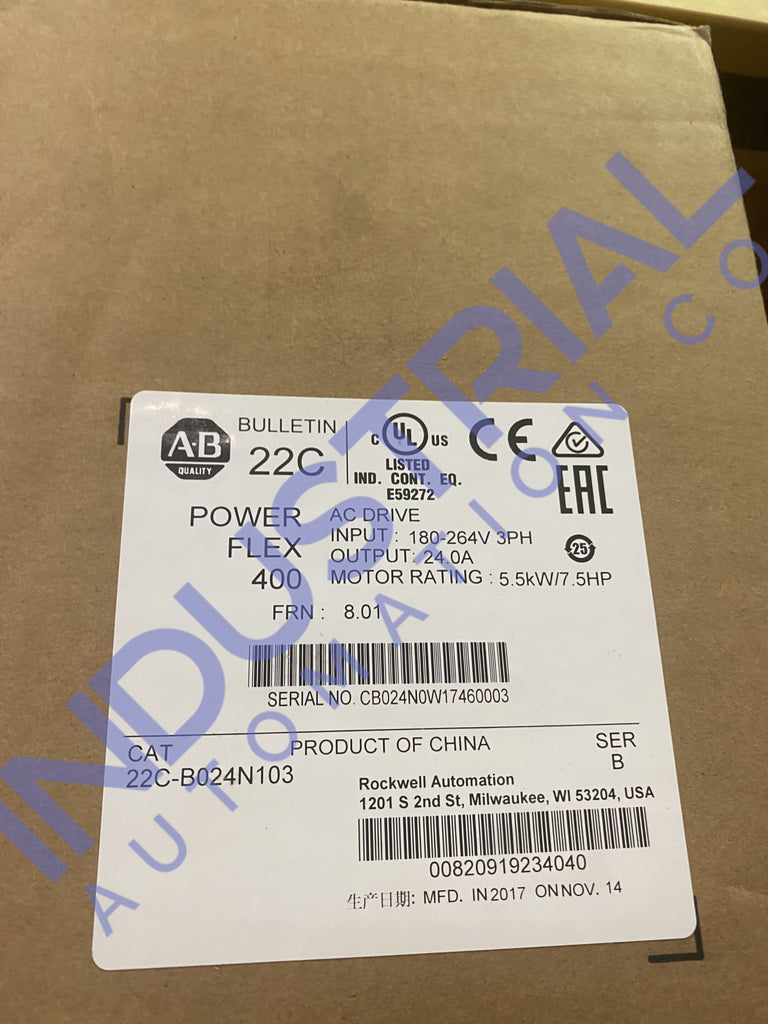

Allen-Bradley 22C-B024N103
Allen-Bradley 22C-B024N103
The Allen-Bradley 22C-B024N103 is a variable frequency drive that has an adjustable frequency option as well for driving AC motors. It has been widely used in industries for its reliability and efficient performance. This drive can also control the three-phase motor.
Technical Specifications:
The drive operates on 7.5 HP. It can give us a variable range of frequency and Voltage from 0 – 400 Hz and 0 – 480 V and vice versa. Due to its variable frequency and voltage output, it can be used in different operations and industries where variable speed is required. The drive can handle large loads very easily as it ensures that the delivery of 24 amp of current is sufficient to supply enough power to run the operation smoothly.
The Allen-Bradley 22C-B024N103 uses an advanced method to control the motor, that is, by integration of signal processing. This model works on different communication models, such as Modbus, DeviceNet, and Ethernet/IP. This multiple-communication support allows this drive to be installed in any facility without any significant changes required.
There is also a keypad to control and check the parameters to monitor the working. The drive has a simple setup that does not require extra personnel with technical expertise to operate it. The drive can communicate with the user with its alarm feature. The display shows any changes in the parameters or any abnormalities, which will help resolve the issue.
The drive weighs around 4.33 kg and comes with the dimensions of 260 mm X 130 mm X 180 mm.while its working temperature ranges from -10 °C to 50 °C with a protection rating of IP-20.
Versatile Applications:
The 22C-B024N103 is from the series PowerFlex 400 and is known for its precision and reliability. The drive is used in very large-scale HVAC applications where we require very precise motor-controlling drives. It also controls the flow and speed of different types of industrial fans and blowers.
The drive is also essential in the material handling process, Agricultural Automation Systems, Mining, and different marine applications due to its speed accuracy of ±0.5% and minimum frequency output of 0.01 Hz.
Maintenance and Safety :
The drive is mounted inside a case where proper input and out of three cables is required to control the motor. Regular maintenance activities to achieve maximum efficiency include cleaning dust and debris, checking for loose electrical connections, checking working parameters, and keeping an eye on any abnormal activity. The Allen-Bradley 22C-B024N103 PowerFlex 400 uses different features to ensure safety. It comes with protection against abnormal voltage (85 % - 110 %), overload (150 %), short circuits (Instantaneously) and overcurrent (200 %).
Frequently Asked Questions:
What is the maximum allowable input voltage for the Allen-Bradley 22C-B024N103 drive?
The Allen-Bradley 22C-B024N103 PowerFlex 400 works on input voltage range of 342-528V AC, 3-phase. While the maximum allowable input voltage is 528V AC. It is recommended not to exceed the maximum voltage limit as it will damage the motor and affect its life.
How does the Allen-Bradley 22C-B024N103 handle motor overload conditions?
The Allen-Bradley 22C-B024N103 can handle the overload very efficiently due to its advanced features. It can handle the overload of 150% for 1 minute. This mechanism protects the motor and sounds an alarm to quickly react to the abnormality to avoid any damage to the motor.
Can the Allen-Bradley 22C-B024N103 be used in high-altitude environments?
The Allen-Bradley 22C-B024N103 can be used in high altitude environments up to 1000 m without any problem. For the altitude above, a given rating for the current is required to ensure proper functioning and avoid overheating.
Product Specifications Table
| Attribute | Specifications |
|---|---|
| Series | PowerFlex 400 |
| Weight | 4.33 kg |
| Operating Temperature | -10 °C to 50 °C |
| Output Power | 7.5 HP |
| Output Voltage | 0-480 V |
| Control Method | Sensorless Vector Control |
| Output Current | 24 A |
| Enclosure Rating | IP-20 |
| Dimensions | 260 mm x 130 mm x 180 mm |
| Motor Overload Protection | 150% for 1min |
