2 Year Warranty on ALL products
Allen-Bradley 25A-B017N104
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice, here.

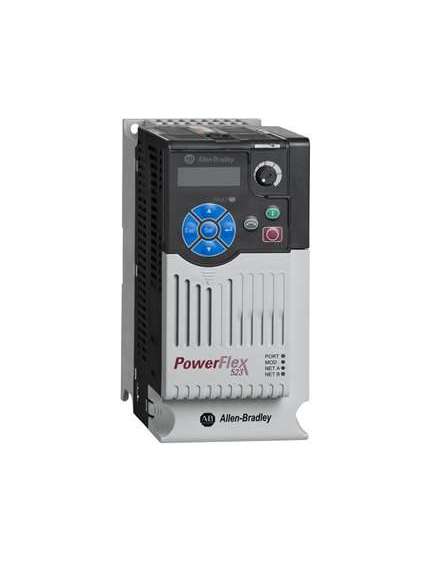

The Allen-Bradley 25A-B017N104 is a versatile PowerFlex 523 series Adjustable Frequency AC drive, designed to efficiently manage industrial AC motor operations with advanced speed and torque control. Operating with an input voltage of 170-264 volts AC and offering an output power capacity of 5.0 horsepower, this drive employs PWM technology and supports multiple control strategies, including Volts per Hertz and Sensorless Vector Control. Its modular design includes a built-in multi-language Human Interface Module for seamless configuration, an IP20 open-type enclosure for safe installation, and a comprehensive set of I/O options, making it an ideal choice for diverse industrial applications.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 25A-B017N104
| Brand | Allen-Bradley |
|---|---|
| Part Number/Catalog No. | 25A-B017N104 |
| Output Current | 17.5 A |
| Manufacturer | |
| Input Voltage: | 170-264VAC |
| Input Phase: | 3-Phase |
| Output Voltage: | 0-230VAC |
| Output Power: | 5.0 HP (4.0 kW) |
| Embedded I/O: | Discrete Inputs: Five (5) Inputs Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input Analog output: One (1) analog output |
| Installation: | Panel Mount |
| Enclosure Rating: | IP20 / NEMA UL Open Type |
| Frame: | B |
| Control Method: | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), SVC with economizer |
| Built-in communication port: | RS485 |
| Integrated Safety: | Safe-Torque Off (STO) functionality |
| Human Interface Module (HIM): | Yes; Standard HIM |
| Compatible Controllers: | CompactLogix; GuardLogix; ControlLogix |
| Manufacturer | Allen Bradley / Rockwell Automation |
| Series | PowerFlex 523 |
| Drive Category | PowerFlex 523 Adjustable Frequency AC Drive |
| Voltage | Three Phase, 240 VAC |
| Part number | 25A-B017N104 |
| Input Voltage: | 200-240 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Input phase: | 3-Phase |
| Interface Module | Standard |
| Output Phase: | 3-Phase |
| Frame Size | Frame B |
| Output Power | 4.0 kW / 5.0 HP; Normal and Heavy Duty |
| EMC Filtering Option | No Filtering |
| Output current | 17.5 A |
| Discrete Input: | Five (5) digital inputs |
| Analog input: | One (1) analog input |
| Discrete output | One (1) relay output |
| Analog output | One (1) analog output (requires Series B hardware) |
| Braking | Built-in IGBT |
| EMC Filter | None Installed |
| Enclosure | IP20 NEMA/Open |
| Frame | B |
| Communication ports: | RS485 |
