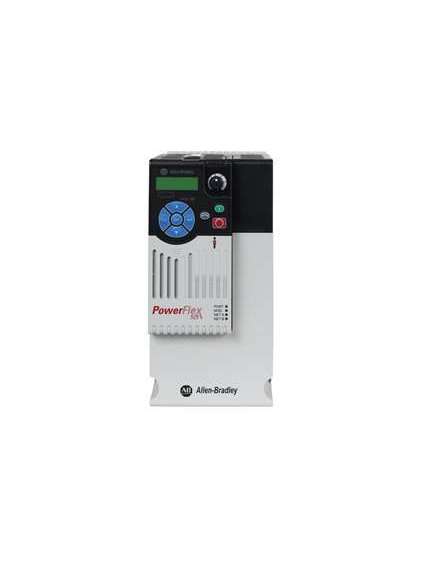

Allen-Bradley 25B-B024N104
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice, here.
The Allen-Bradley 25B-B024N104, part of the PowerFlex 525 series, is a sophisticated adjustable frequency AC drive designed for versatile control of industrial motors. With its capability to manage speed and torque efficiently, this drive supports sinusoidal PWM, volts/hertz, and various vector control methods, making it suitable for general-purpose and permanent magnet motor applications. Operating within a voltage range of 170-264 VAC, it provides a 0-230 VAC output at 24 amperes, supporting a 7.5 Hp power output. The 25B-B024N104 integrates seamlessly into complex systems with its embedded Ethernet/IP port and offers programmable acceleration and deceleration settings for precise control, while its modular design, safety features, and user-friendly interface make installation and programming straightforward.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 25B-B024N104
| Manufacturer | Rockwell Automation |
|---|---|
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 25B-B024N104 |
| Manufacturer: | |
| Series | PowerFlex 525 Drive |
| Product Family: | PowerFlex 523 |
| Voltage | Three Phase, 240 VAC |
| Part Number: | 25B-B024N104 |
| Output Current | 24 Amperes |
| Input Voltage range: | 170-264 VAC, 3-Phase |
| Enclosure Type | IP20 NEMA / Open Type |
| Nominal input voltage: | 200-240 VAC, 3-Phase |
| Interface Module | Standard |
| Output voltage range: | 0-230 VAC, 3-Phase |
| Frame Size | Frame C |
| Output Current: | 24.0 A |
| EMC Filtering Options | No Filter |
| Output Power: | 5.5 kW or 7.5 HP |
| UPC | 884951885806 |
| Output frequency: | 0-500 Hz (programmable) |
| Embedded I/O: | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation: | Panel Mount / DIN Rail |
| Zero Stacking: | Supported |
| Enclosure Rating: | IP20 / NEMA UL Type Open |
| Built-in communication port: | RS485 / Ethernet I/P |
| Control Method: | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control |
| Efficiency: | 97.50% |
| Stop Modes: | Multiple programmable stop modes including – Ramp, Coast, DC-Brake, and Ramp-to-Stop |
| Programmable Acceleration / Deceleration | Four (4) independently programmable accel and decel times with resolution of 0.01 seconds up to 600 seconds. |
