Allen-Bradley 25B-D4P0N104

Allen-Bradley 25B-D4P0N104

SKU: 25B-D4P0N104-R
$250.00
See product description

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Request a Price Quote
Eligible for Next Day Delivery Order before 4 PM ET for same-day processing. More about shipping
All Parts Come with Our 24 Month Warranty Industry-leading protection for your purchase. More about warranty
Surplus, Refurbished, and Repairs Available Multiple options to meet your needs and budget

Secure payment options

Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice here.

Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice‚… here.


  • 25BD4P0N104
  • AC DRIVE
  • POWERFLEX 525
  • WITH EMBEDDED ETHERNET/IP AND SAFETY
  • 480 V AC
  • 3 PHASE
  • 2 HP (1.5 KW) NORMAL & HEAVY DUTY
  • FRAME A
  • IP20 NEMA / OPEN TYPE
  • NO FILTER

Getting to Know the 25B-D4P0N104

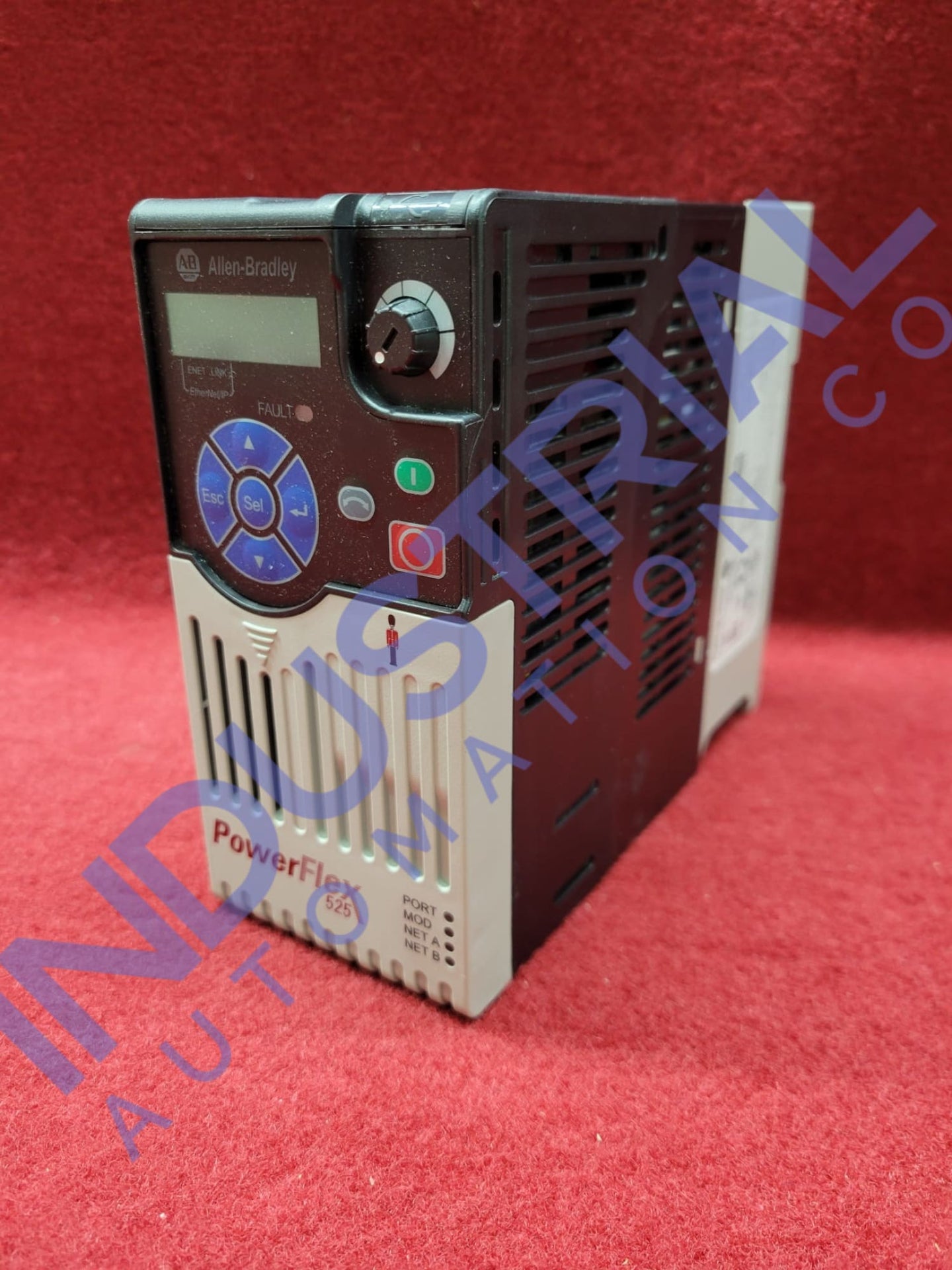

The Allen-Bradley 25B-D4P0N104 is part of the PowerFlex 525 variable frequency drive family. It features a Size A-frame and an IP20/NEMA open-type enclosure. This module follows various certification standards, like CE, C-TICK, KC, and MARINE.

Allen-Bradley 25B-D4P0N104

Primary Benefits and Features

The 25B-D4P0N104 device delivers a broad array of features and benefits. It includes built-in safety features, such as Safe Torque-Off (STO), which helps prevent unintended motor startup. The front panel offers an HMI and keypad for inputs. The module has embedded I/O channels accommodating hardwired connections to external devices that can dictate the drive's operating behavior. Other features include:

  • LED screen
  • Ethernet port
  • USB port
  • IGBT braking
  • Integral brake transistor

25B-D4P0N104 Technical Specifications

This three-phase device has a 480-volt AC voltage rating, a 4-ampere current rating, and an average rating of 2 horsepower. It supports enhanced inertia ride-through to mitigate low-voltage situations. Other technical specifications include:

  • Running frequency: 50 to 60 hertz
  • Input voltage: 323 to 528 VAC
  • Operating temperature range: -20°C (-4°F) to 50°C (122°F)
  • Displacement power factor: 0.98 across the entire speed range
  • Dimensions: 6.77" x 2.83" x 5.98"

Applications

Known for its enhanced performance and flexibility, the 25B-D4P0N104 is often employed in large-scale factories. This drive is ideal for advanced motor control solutions, featuring durability in a compact footprint. Popular applications include:

  • Conveyors
  • Fans
  • Pumps
  • Mixers
25B-D4P0N104

Allen-Bradley 25B-D4P0N104 Configuration and Installation

This module features a fixed terminal connection. Its LCD readout and embedded keypad enable easy out-of-the-box configuration. Because of its Frame A construction, you can mount this device to an enclosure subpanel or install it with a standard DIN rail. It can accommodate zero stacking installation at an ambient temperature of 45°C. With MainsFree™ programming, you can upload and download configuration files on the control module using a USB connection.

Quick Shipping & Unparalleled Customer Service

Trust Industrial Automation Co. for Your Industrial Replacement Parts

Industry leaders around the globe rely on parts from Industrial Automation Co. We supply competitively priced components like the 25B-D4P0N104 quickly and efficiently. And we back everything we do with our outstanding customer service. Order your devices today and experience everything we have to offer.
