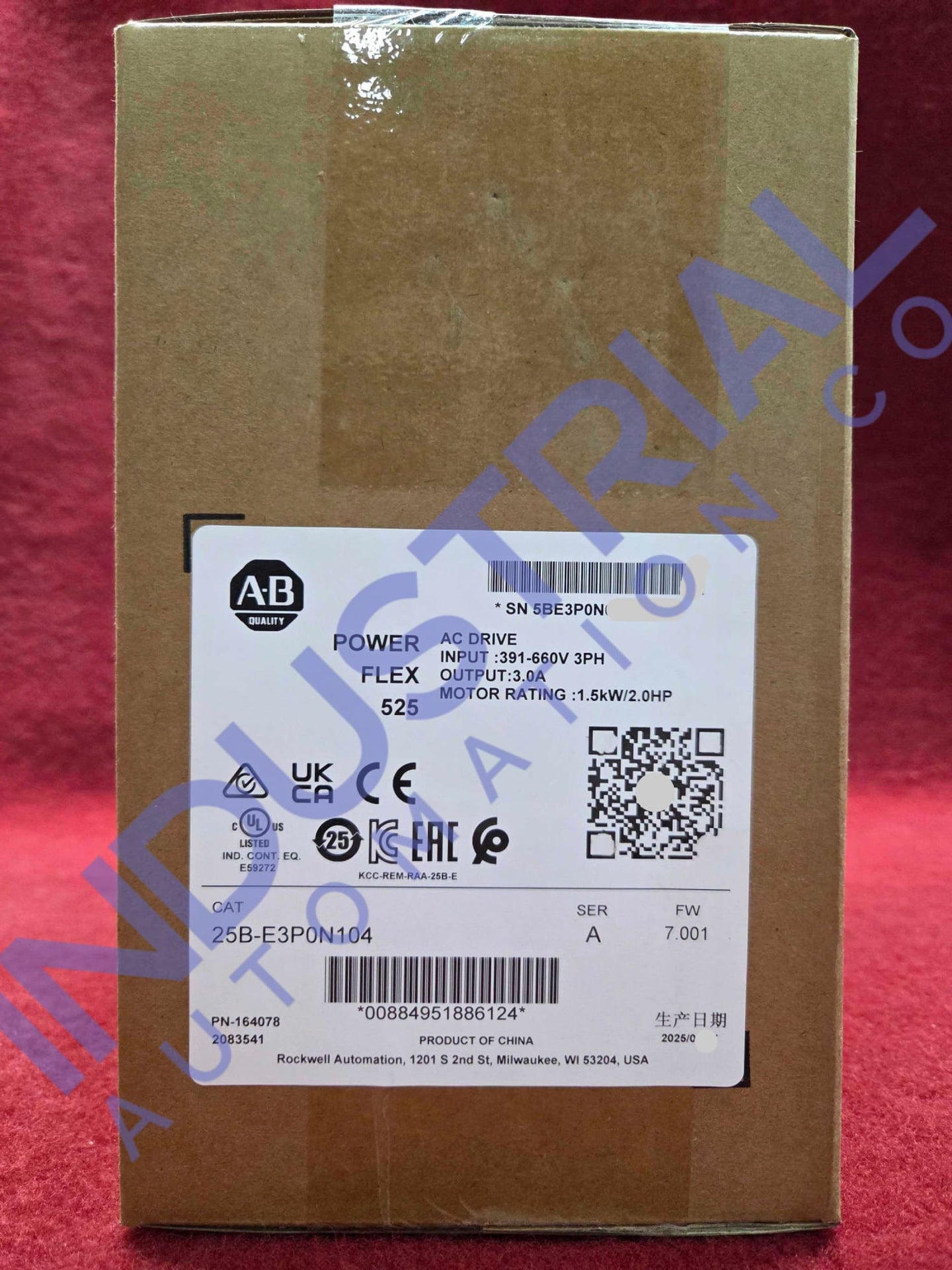

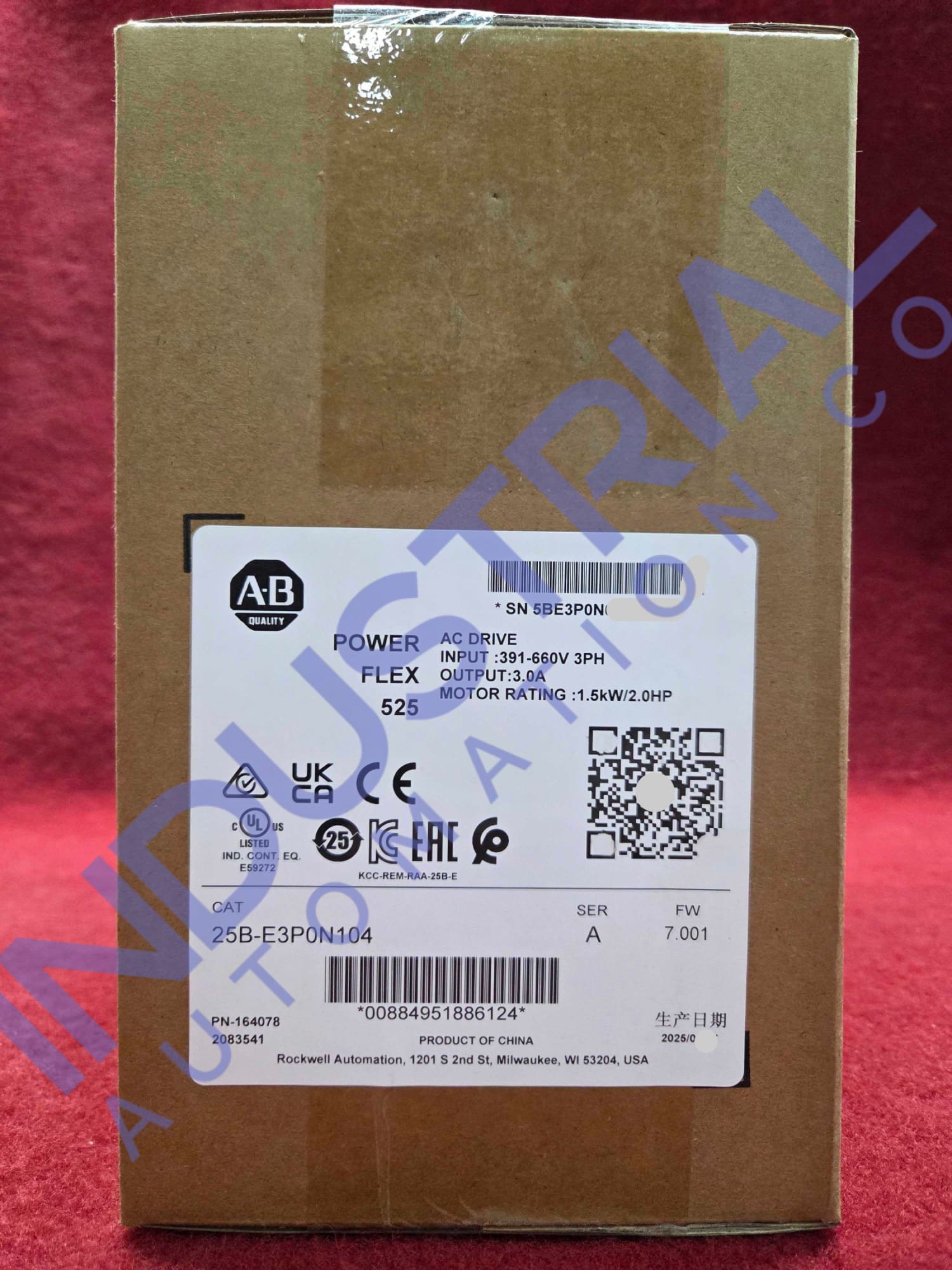

Allen-Bradley 25B-E3P0N104
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Description
Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice, here.
The Allen-Bradley 25B-E3P0N104 PowerFlex 525 drive is engineered for effective speed and torque management across various motors with ratings of up to 1.5 kW (2.0 HP). It offers versatile control methods including Sinusoidal PWM, V/Hz, and both Sensorless and Closed Loop Velocity Control. Operating on a 446-660VAC, 3-phase input, this drive supplies an output of 0-575VAC and 3.0 A, supporting installations on both DIN rails and panels. Featuring an integrated brake resistor and dynamic parameter configurations via CompactLogix and ControlLogix controllers, this drive ensures seamless adaptation within various machine setups. With advanced connectivity options such as embedded Ethernet/IP and RS485 ports, the 25B-E3P0N104 enhances data handling and network integration for optimized performance.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 25B-E3P0N104
| Output Current | 3.0 A |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer: | Rockwell Automation / Allen-Bradley |
| Product Family: | PowerFlex 40P |
| Input Voltage: | 446-660 VAC |
| Input Phase: | 3-Phase |
| Input Current: | 3.8 A |
| Output Voltage: | 0-575VAC |
| Output Power: | 1.5 kW (2.0 HP) |
| I/O: | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation: | Panel Mount / DIN Rail |
| Enclosure Rating: | IP20 / NEMA UL Type Open |
| Built-in communication port: | Ethernet I/P |
| Optional communication protocols: | Dual Ethernet I/P; DeviceNet; ProfiBus DP |
| Part Number/Catalog No. | 25B-E3P0N104 |
| Series | PowerFlex 525 Drive |
| Voltage | Three Phase, 600 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame A |
| EMC Filtering Options | No Filter |
