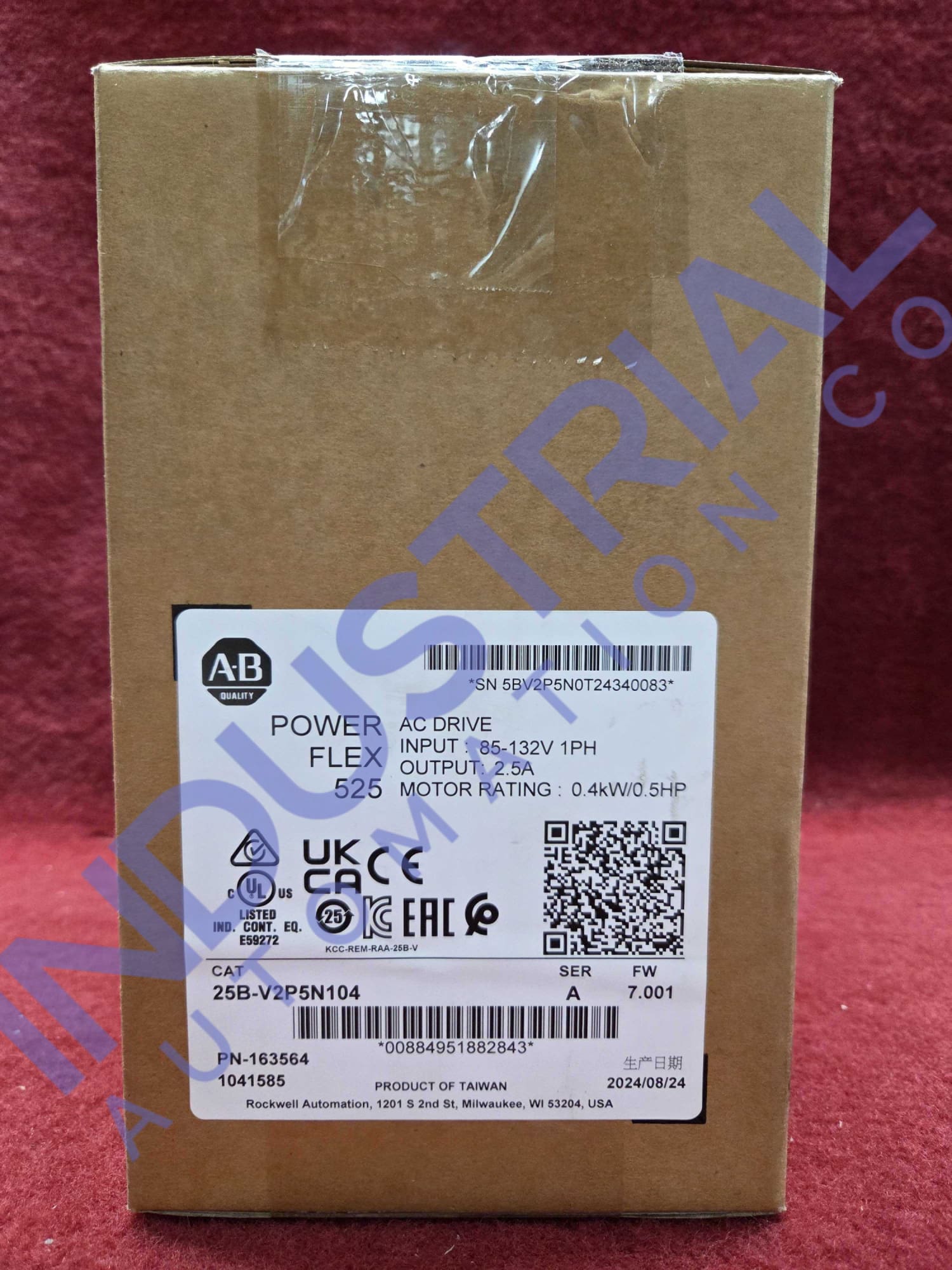

Allen-Bradley 25B-V2P5N104
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Description
Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice, here.
The Allen-Bradley 25B-V2P5N104 is a versatile Adjustable Frequency AC Drive from the PowerFlex 525 series, designed to provide precise speed modulation for motors in both manual and automatic modes. This drive features an integrated Human Interface Module (HIM) with an LCD display and keypad, enabling direct control with commands like Start/Stop, Forward/Reverse, and speed adjustments through a built-in potentiometer. Its advanced connectivity includes an embedded EtherNet/IP port for seamless network integration, RS485 communication for daisy-chaining up to 31 drives, and multiple analog and digital I/O options, offering extensive control flexibility. The drive is housed in an IP20-rated, open-type enclosure, accommodates both DIN rail and panel mounting, and operates efficiently within -4 to 122°F, making it suitable for a wide range of industrial environments.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 25B-V2P5N104
| Brand | Allen-Bradley |
|---|---|
| Part Number/Catalog No. | 25B-V2P5N104 |
| Output Current | 2.5 A |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Family: | PowerFlex 525 |
| Input Voltage: | 120VAC |
| Input Phase: | 1-Phase |
| Output Voltage: | 0-230VAC |
| Output Phase: | 3-Phase |
| Output Power: | 0.4 kW or 0.5 HP |
| I/O: | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation: | Panel Mount / DIN Rail |
| Zero Stacking: | Supported |
| Enclosure Rating: | IP20 / NEMA UL Type Open |
| Control Method: | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control. |
| PointStop Technology: | Integrated |
| Integrated safety: | Safe-Torque Off (STO) functionality |
| Built-in communication port: | Ethernet I/P / RS485 |
| Series | PowerFlex 525 Drive |
| Voltage | One Phase, 120 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame A |
| EMC Filtering Options | No Filter |
| UPC | 884951882843 |
